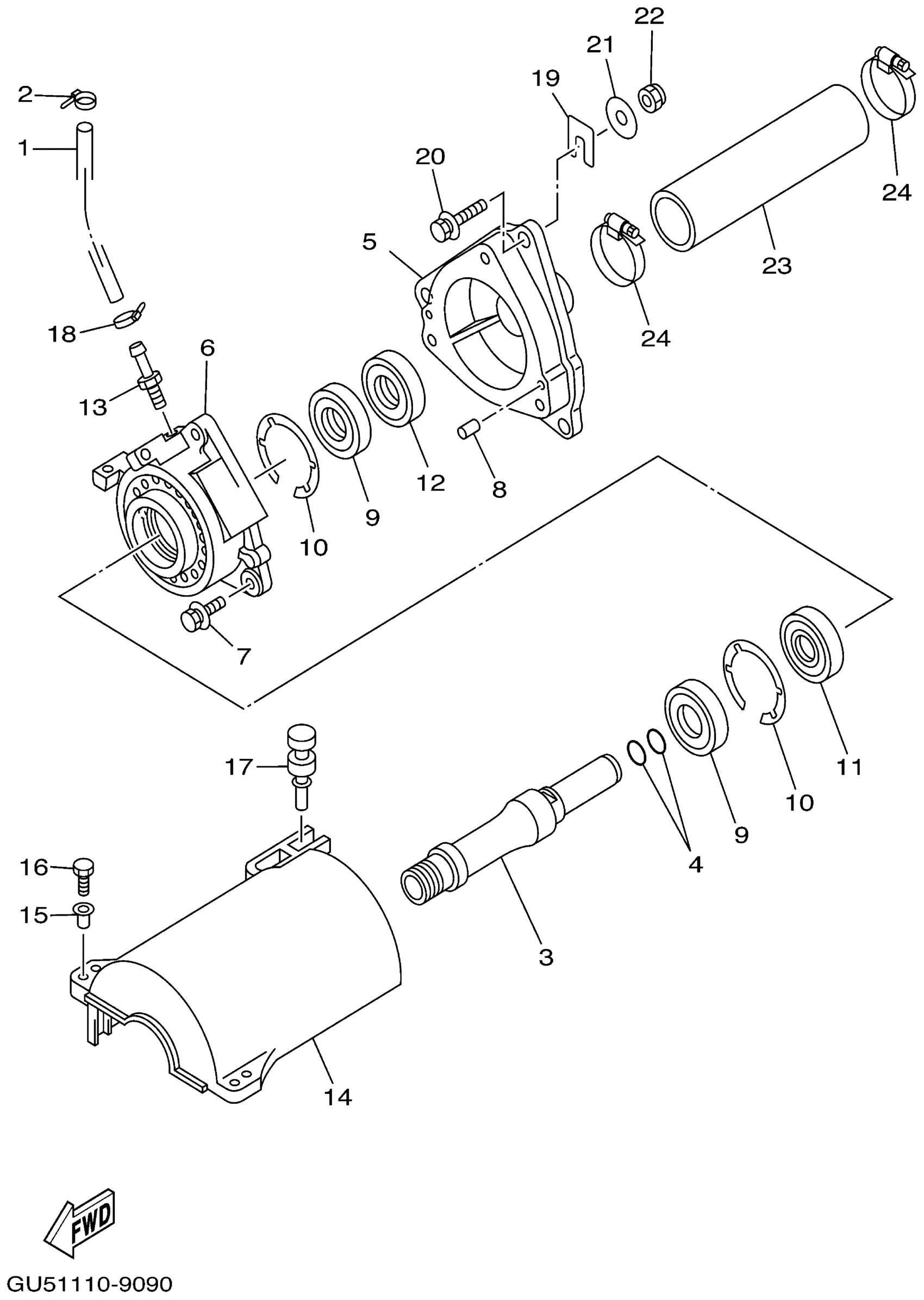

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 JET UNIT 2 Diagram

#

Description
Price

1

HOSE (L445)

90445-09M21-00

$26.99

2

CLAMP

90465-10098-00

Unavailable

3

SHAFT, COUPLER

66V-51323-01-00

Unavailable

4

O-RING

93210-19001-00

Unavailable

5

HOUSING, BEARING

66G-45331-01-00

Unavailable

6

HOUSING, BEARING

66G-45332-00-00

Unavailable

7

BOLT, WITH WASHER

90119-08841-00

Unavailable

8

PIN, DOWEL (614)

93606-12019-00

$4.24

9

OIL SEAL(62T)

93101-25M55-00

$30.99

10

CIRCLIP

93430-47M04-00

Unavailable

11

BEARING(62G)

93306-205U6-00

Unavailable

12

OIL SEAL

93101-24001-00

$31.99

13

NIPPLE, HOSE

61L-45378-00-00

Unavailable

14

COVER

64Y-51381-00-00

Unavailable

15

COLLAR

90387-06M60-00

Unavailable

16

BOLT, WITH WASHER

90119-06892-00

Unavailable

17

GROMMET(6R7)

90480-06M46-00

Unavailable

18

CLAMP

90465-10098-00

Unavailable

19

SHIM (0.5)

GD0-U7249-00-05

Unavailable

19

SHIM (0.5)

GD0-U7249-00-05

Unavailable

20

BOLT, WITH WASHER

90119-08904-00

Unavailable

21

WASHER, PLATE

90201-099U1-00

Unavailable

22

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

23

PIPE, 1

GU5-U883B-00-00

Unavailable

24

BAND, HOSE 52

90601-152U3-00

Unavailable
