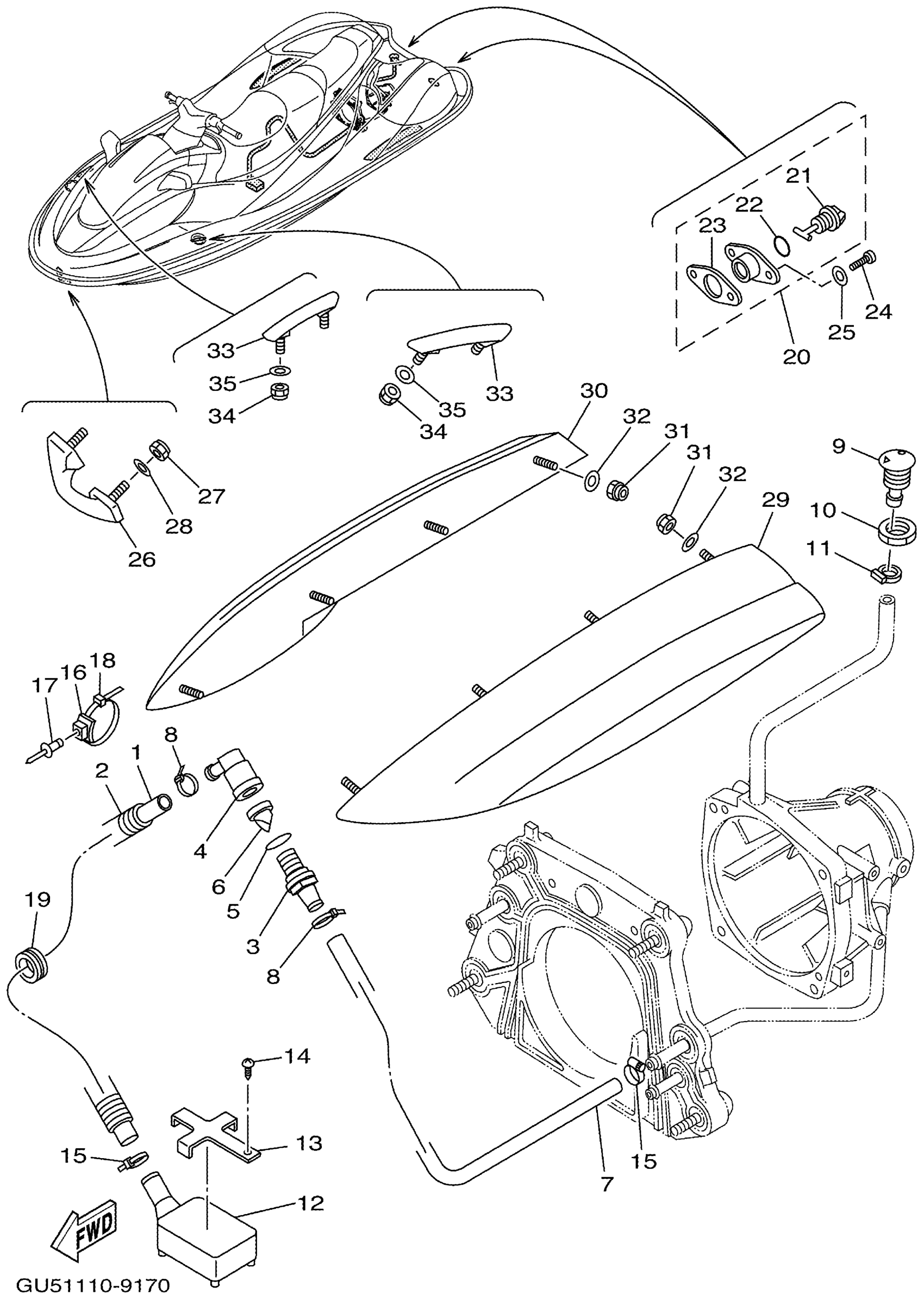

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 HULL - DECK Diagram

#

Description
Price

1

HOSE

90445-19M01-00

Unavailable

2

HOSE (L650)

90446-27MA4-00

Unavailable

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

JOINT, HOSE 2

63M-51165-00-00

Unavailable

5

O-RING

93210-22ME5-00

$3.93

6

VALVE 1

63M-5316M-00-00

$25.49

7

HOSE

90445-19M01-00

Unavailable

8

CLAMP (6E5)

90465-13M11-00

$5.31

9

SPOUT

FN8-6269B-00-00

$22.49

10

NUT

EU0-61652-00-00

$11.48

11

CLIP

90600-91755-00

$5.91

12

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

13

BASE

FJ0-67618-00-00

Unavailable

14

SCREW, TAPPING(61A)

97780-50612-00

$3.77

15

BAND

90601-200U1-00

$2.77

16

CLAMP COMP (EU0)

90600-91736-00

Unavailable

17

RIVET, BLIND

90267-489UE-00

Unavailable

18

BAND (EU0)

90601-20009-00

$6.36

19

GROMMET

90480-329U2-00

Unavailable

20

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

21

. PLUG, DRAIN

EU0-62282-00-00

$7.40

22

. O-RING

EU0-62283-00-00

$3.70

23

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

24

SCREW, TAPPING

97780-50620-00

$2.75

25

. WASHER, PLAIN

92990-05200-00

$4.29

26

BOW EYE 1

GU5-61624-00-00

Unavailable

27

. NUT, SELF-LOCKING

95720-08300-00

$3.33

28

WASHER, PLAIN

92990-08200-00

$2.36

29

STABILIZER LH

GU5-6883N-00-00

Unavailable

30

STABILIZER RH

GU5-6883P-00-00

$174.23

31

NUT, SELF-LOCKING

95720-06300-00

$1.82

32

WASHER, PLAIN (FJ0)

90201-06930-00

Unavailable

33

DECK EYE

GU5-61685-01-00

Unavailable

34

. NUT, SELF-LOCKING

95720-08300-00

$3.33

35

WASHER, PLAIN

92990-08200-00

$2.36
