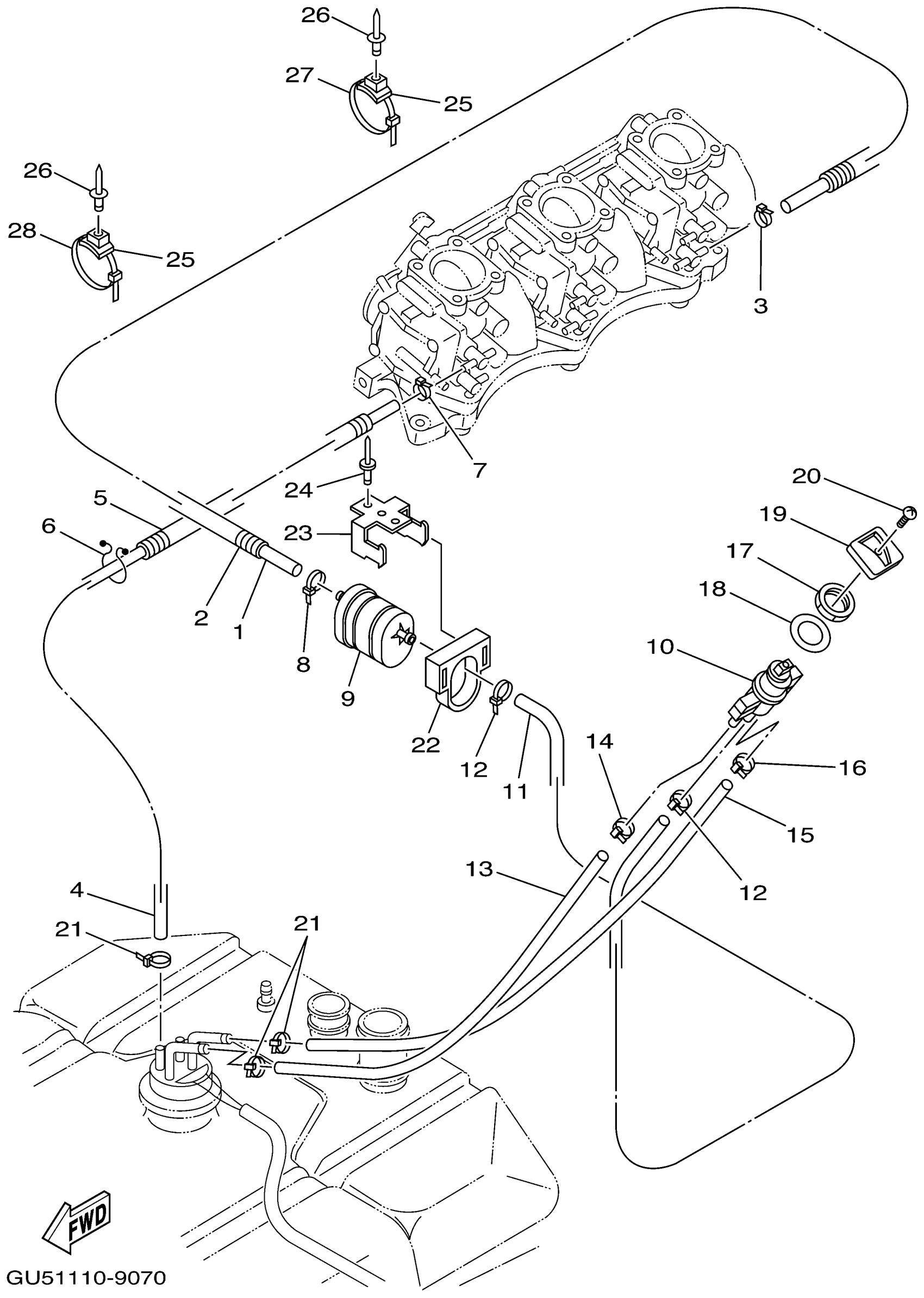

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 FUEL Diagram

#

Description
Price

1

HOSE )L1400)

90445-11M59-00

$49.29

2

HOSE

90446-17MA7-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

HOSE (L910)

90445-11M60-00

Unavailable

5

HOSE (L200)

90446-17MA8-00

Unavailable

6

CLAMP

90464-13M54-00

Unavailable

7

CLAMP

90465-10098-00

$1.68

8

CLAMP

90465-10098-00

$1.68

9

FILTER ASSY

66V-24560-01-00

$32.97

10

FUEL COCK ASSY 1

66V-24500-02-00

$63.62

11

HOSE

90445-11M71-00

Unavailable

12

CLAMP

90465-10098-00

$1.68

13

HOSE

90445-11M71-00

Unavailable

14

CLAMP

90465-10098-00

$1.68

15

HOSE

90445-11M71-00

Unavailable

16

CLAMP

90465-10098-00

$1.68

17

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

18

WASHER, PLATE

90202-229U1-00

$14.35

19

LEVER, COCK

F0D-6777C-00-00

$11.48

20

SCREW, BIND

98980-04008-00

$3.05

21

CLAMP

90465-10098-00

$1.68

22

HOLDER

EU0-67817-00-00

$13.33

23

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

24

RIVET, BLIND

90267-489U2-00

$1.43

25

CLAMP COMP (EU0)

90600-91736-00

Unavailable

26

RIVET, BLIND

90267-48802-00

$1.98

27

BAND (EU0)

90601-20009-00

$6.36

28

BAND

90601-200U2-00

$3.16
