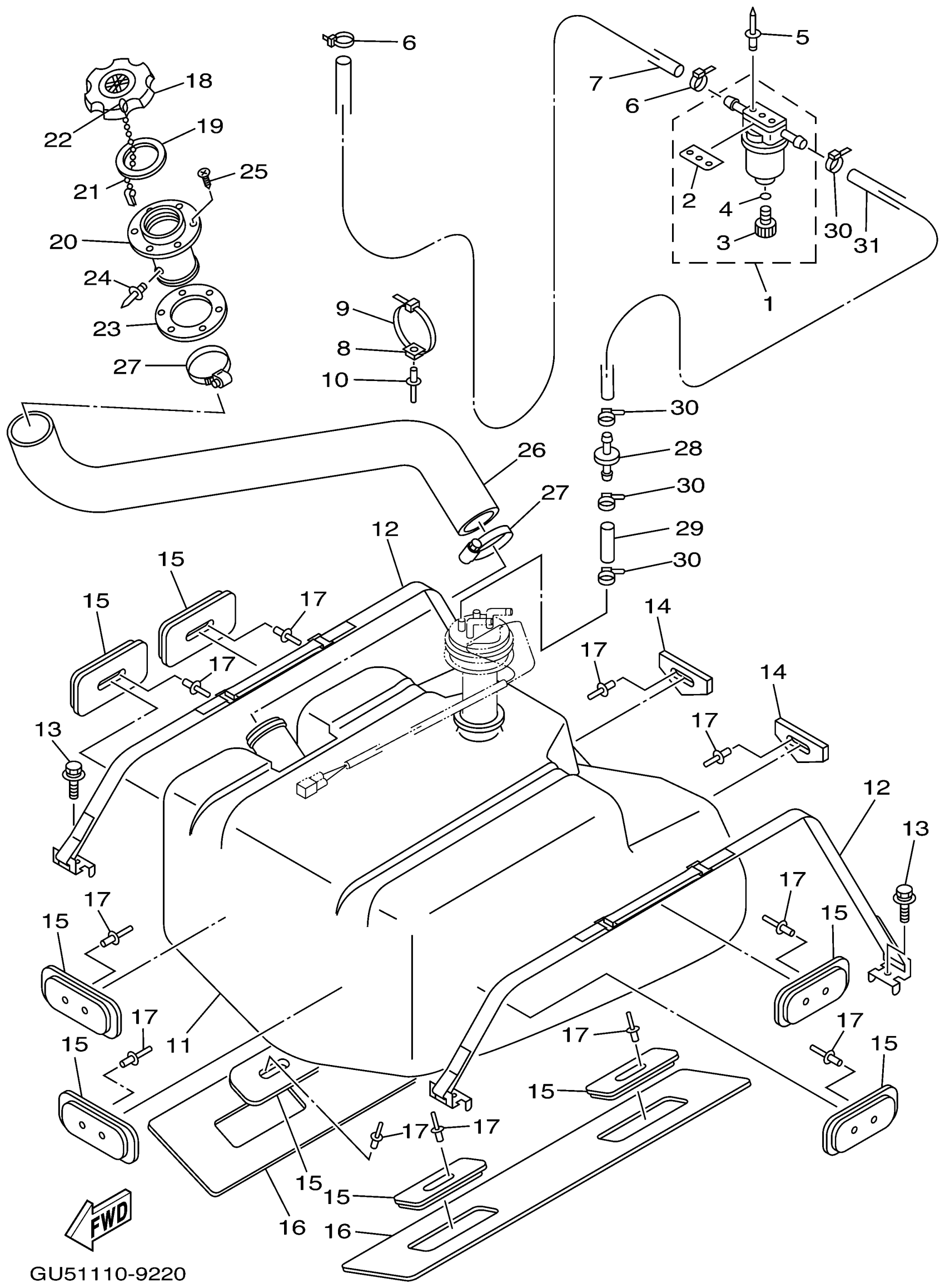

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 FUEL TANK Diagram
#
1
FILTER, VENT ASSY
F2F-6214A-00-00
Unavailable
2
. PLATE, FILTER
EW2-62142-00-00
Unavailable
3
. PLUG, DRAIN
70R-24543-00-00
Unavailable
4
. O-RING
70R-24489-00-00
Unavailable
5
RIVET, BLIND
90267-489U2-00
Unavailable
6
CLAMP
90465-10098-00
Unavailable
7
HOSE, AIR VENT
GP7-U785G-10-00
Unavailable
8
CLAMP COMP (EU0)
90600-91736-00
$8.49
9
RIVET, BLIND
90267-48802-00
Unavailable
10
BAND (EU0)
90601-20009-00
Unavailable
11
TANK, FUEL
F0D-U7711-00-00
Unavailable
12
BELT, TANK 1
GH3-67743-01-00
Unavailable
13
BOLT, WITH WASHER
90119-08826-00
Unavailable
14
MAT 1
GU5-U759B-00-00
Unavailable
15
MAT 2
GU5-U759C-00-00
Unavailable
16
MAT 3
GU5-U759D-00-00
Unavailable
17
RIVET, BLIND
90267-489UK-00
Unavailable
18
CAP, FUEL FILLER (YAMAHA BLACK)
FN8-67831-01-00
Unavailable
19
PACKING 1
EU0-67832-00-00
Unavailable
20
SOCKET
FN8-67833-00-00
Unavailable
21
. CHAIN BALL
EU0-67835-00-00
Unavailable
22
COUPLING
EU0-67839-00-00
Unavailable
23
PACKING, FUEL FILLER
EU0-67834-00-00
Unavailable
24
. RIVET, BLIND
90267-40935-00
Unavailable
25
SCREW, FLAT HEAD TAPPING
FX1-67869-00-00
Unavailable
26
HOSE
GU5-U7844-00-00
Unavailable
27
BAND, HOSE 55
90601-155U4-00
Unavailable
28
CHECK VALVE
EU0-67767-31-00
Unavailable
29
HOSE, AIR VENT 3
GP7-U785H-00-00
Unavailable
30
CLAMP
90465-10098-00
Unavailable
31
HOSE, AIR VENT 3
GJ3-U7856-10-00
Unavailable
