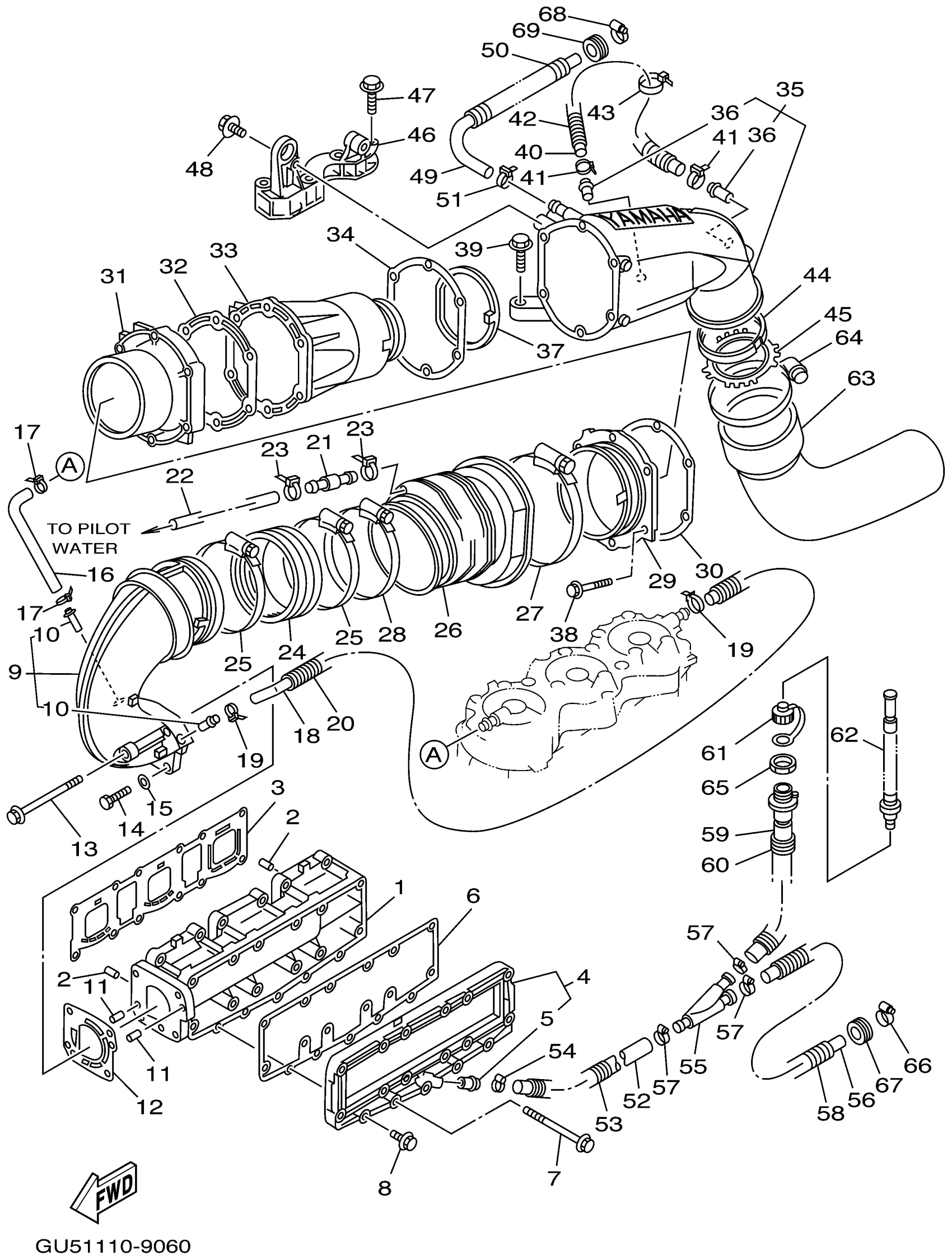

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

63M-14711-00-00

Unavailable

2

PIN, DOWEL(62T)

93605-12M21-00

Unavailable

3

GASKET, EXHAUST PIPE

65U-14613-01-00

$72.71

4

PROTECTOR, MUFFLER 1

63M-14718-00-8S

Unavailable

5

. NIPPLE

63M-51129-00-00

Unavailable

6

GASKET, MUFFLER DAMPER 1

63M-14739-00-00

$60.49

7

BOLT, WITH WASHER

90119-08M98-00

Unavailable

8

BOLT, HEXAGON W/W DEEP RECESS

97E95-06530-00

Unavailable

9

RING, JOINT

63M-14712-00-00

Unavailable

10

. NIPPLE

6K8-51129-00-00

$9.62

11

PIN, DOWEL(62T)

93605-12M21-00

Unavailable

12

GASKET, MUFFLER DAMPER 2

63M-14749-01-00

$30.37

13

BOLT, WITH WASHER

90119-08155-00

Unavailable

14

BOLT, HEXAGON

97013-08030-00

$2.98

15

.. WASHER, PLATE

92990-08600-00

$2.17

16

HOSE 1

63M-12576-00-00

Unavailable

17

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

18

HOSE 2

63M-12577-00-00

Unavailable

19

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

20

HOSE

90446-20M53-00

Unavailable

21

PIPE, JOINT 2

6R3-24377-00-00

$6.56

22

HOSE (L1300)

90445-14M22-00

Unavailable

23

CLAMP

90465-10098-00

$1.68

24

JOINT, EXHAUST 2

62T-14625-00-00

$62.23

25

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

26

JOINT, EXHAUST 1

63M-14615-00-00

Unavailable

27

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

28

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

29

OUTER COVER, EXHAUST

63M-41113-00-8S

Unavailable

30

GASKET, EXHAUST OUTER COVER

63M-41114-00-00

$28.52

31

MUFFLER 2

63M-14721-00-8S

$149.98

32

GASKET, EXHAUST INNER COVER

63M-41122-00-00

$31.11

33

INNER COVER,EXHAUST

63M-41121-00-8S

Unavailable

34

GASKET, EXHAUST OUTER COVER

63M-41114-00-00

$28.52

35

OUTER COVER, EXHAUST

63M-41123-00-8S

Unavailable

36

. NIPPLE

6K8-51129-00-00

$9.62

37

SEAL, RUBBER 1

63M-15761-00-00

$51.50

38

BOLT, FLANGE

90105-08M66-00

Unavailable

39

BOLT, FLANGE

90105-10M60-00

$5.92

40

HOSE (L240)

90445-14M05-00

$12.86

41

CLAMP

90465-10098-00

$1.68

42

HOSE

90446-20M39-00

Unavailable

43

BAND, SWITCH CORD

437-83936-11-00

Unavailable

44

SEAL, EXT 1

63M-41138-00-00

$20.37

45

STOPPER

63M-14680-00-00

$17.03

46

STAY, MUFFLER 1

63M-14771-00-00

Unavailable

47

BOLT, WITH WASHER

90119-10M17-00

$9.08

48

BOLT, FLANGE

90105-10M88-00

$2.95

49

HOSE 3

66G-12578-00-00

Unavailable

50

HOSE

90446-30ME9-00

Unavailable

51

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

52

HOSE (L350)

90445-18M13-00

Unavailable

53

HOSE

90446-24M83-00

Unavailable

54

HOSE CLAMP ASSY

90450-18M09-00

$9.82

55

JOINT, HOSE 1

63M-12581-00-00

Unavailable

56

HOSE

90445-18M16-00

Unavailable

57

HOSE CLAMP ASSY

90450-18M09-00

$9.82

58

HOSE (L420)

90446-24M89-00

$9.08

59

JOINT ASSY

64T-12580-00-00

$113.62

60

HOSE (L420)

90446-24M89-00

$9.08

61

CAP,1

682-84385-01-00

$9.08

62

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

63

PIPE, OUTLET

66G-14752-00-00

Unavailable

64

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

65

NUT

EU0-61652-00-00

$11.48

66

BAND, HOSE 18

90601-118UF-00

$2.07

67

GROMMET

90480-329U2-00

Unavailable

68

BAND, HOSE 18

90601-118UF-00

$2.07

69

GROMMET

90480-329U2-00

Unavailable
