- SV1200X (WAVE RUNNER SUV1200) GU51 1999
ENGINE HATCH 2

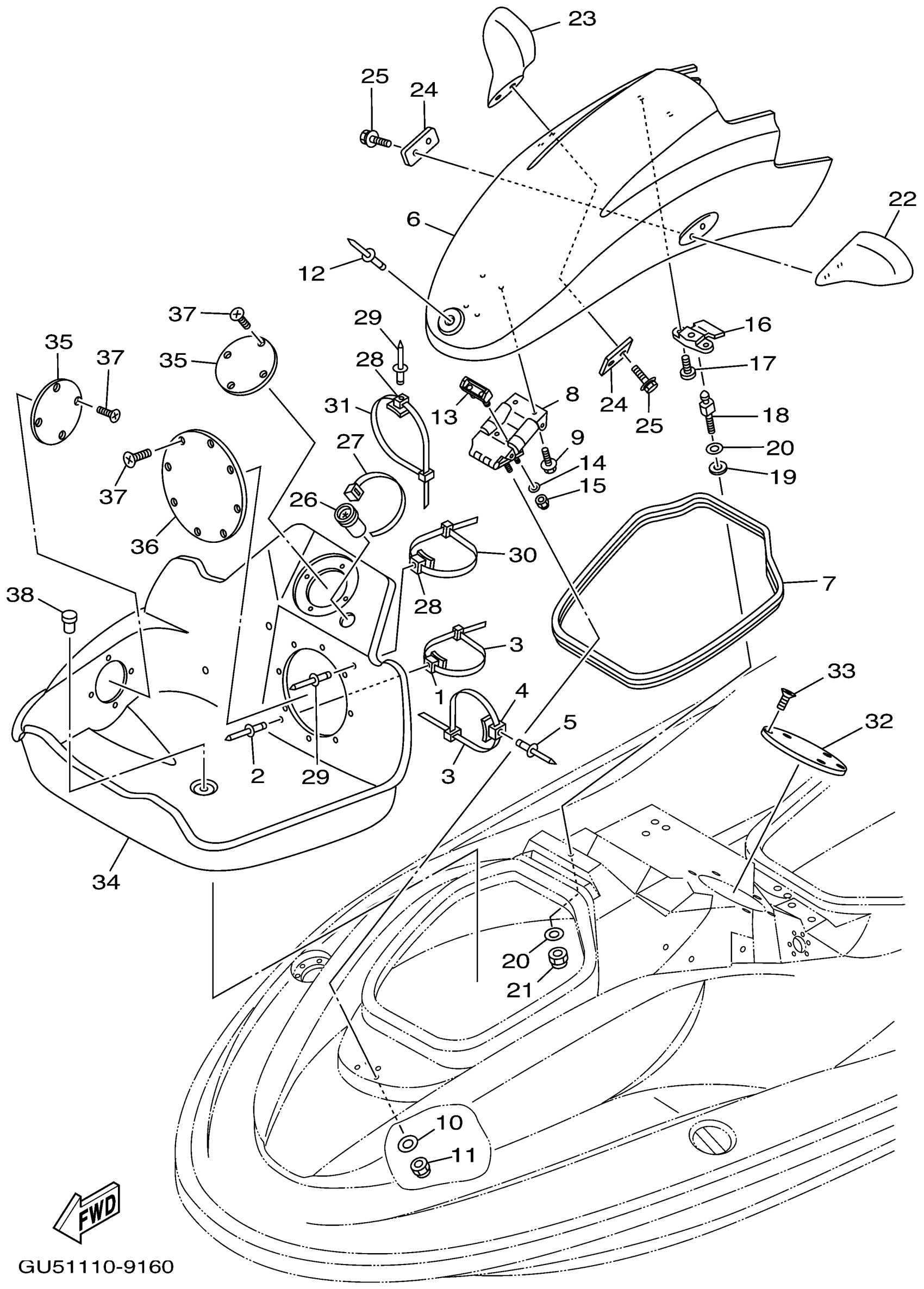

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 ENGINE HATCH 2 Diagram
#
1
CLAMP COMP (EU0)
90600-91736-00
$8.49
2
RIVET, BLIND
90267-48802-00
Unavailable
3
CLAMP
90464-99800-00
Unavailable
4
CLAMP COMP (EU0)
90600-91736-00
$8.49
5
RIVET, BLIND
90267-48802-00
Unavailable
6
LID, ENGINE ROOM
F0D-U517B-00-00
Unavailable
7
PACKING 1
GU5-62663-00-00
Unavailable
8
HINGE ASSY.
F0D-6515A-04-00
Unavailable
9
BOLT, WITH WASHER
90119-06966-00
Unavailable
10
WASHER, PLATE
90201-06020-00
$9.49
11
NUT, SELF-LOCKING
95720-06300-00
Unavailable
12
RIVET, BLIND
90267-489U8-00
Unavailable
13
PRATE, HINGE LID
F0D-6518E-01-00
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
15
NUT, SELF-LOCKING
95720-06300-00
Unavailable
16
LOCK, LID
F0D-6517C-04-00
Unavailable
17
SCREW, BIND(J39)
98980-06014-00
Unavailable
18
PIN
GU5-63774-00-00
Unavailable
19
DAMPER 2
F0D-6515E-00-00
Unavailable
20
WASHER, PLAIN
92990-08200-00
Unavailable
21
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
22
MIRROR LH (BLACK)
F0V-U596B-04-00
Unavailable
23
MIRROR RH (BLACK)
F0V-U596C-04-00
Unavailable
24
PLATE
F0D-U5646-00-00
Unavailable
25
BOLT, WITH WASHER
90119-08826-00
Unavailable
26
GROMMET
GU2-6822E-01-00
Unavailable
27
BAND (EU0)
90601-20009-00
Unavailable
28
CLAMP COMP (EU0)
90600-91736-00
$8.49
29
RIVET, BLIND
90267-48802-00
Unavailable
30
BAND
90601-200U2-00
Unavailable
31
BAND (EU0)
90601-20009-00
Unavailable
32
COVER, INSPECTION 2
GP1-U7228-00-00
Unavailable
33
YBS81-412 SCREW,O.HEAD TAPPING
97780-40312-00
Unavailable
34
LOCKER, BOW
GU5-U475B-00-00
Unavailable
35
COVER, INSPECTION 1
GP1-U7227-00-00
Unavailable
36
COVER INSPECTION
GU5-U7861-00-00
Unavailable
37
YBS81-412 SCREW,O.HEAD TAPPING
97780-40312-00
Unavailable
38
. PLUG, BLIND
90605-502U1-00
Unavailable
