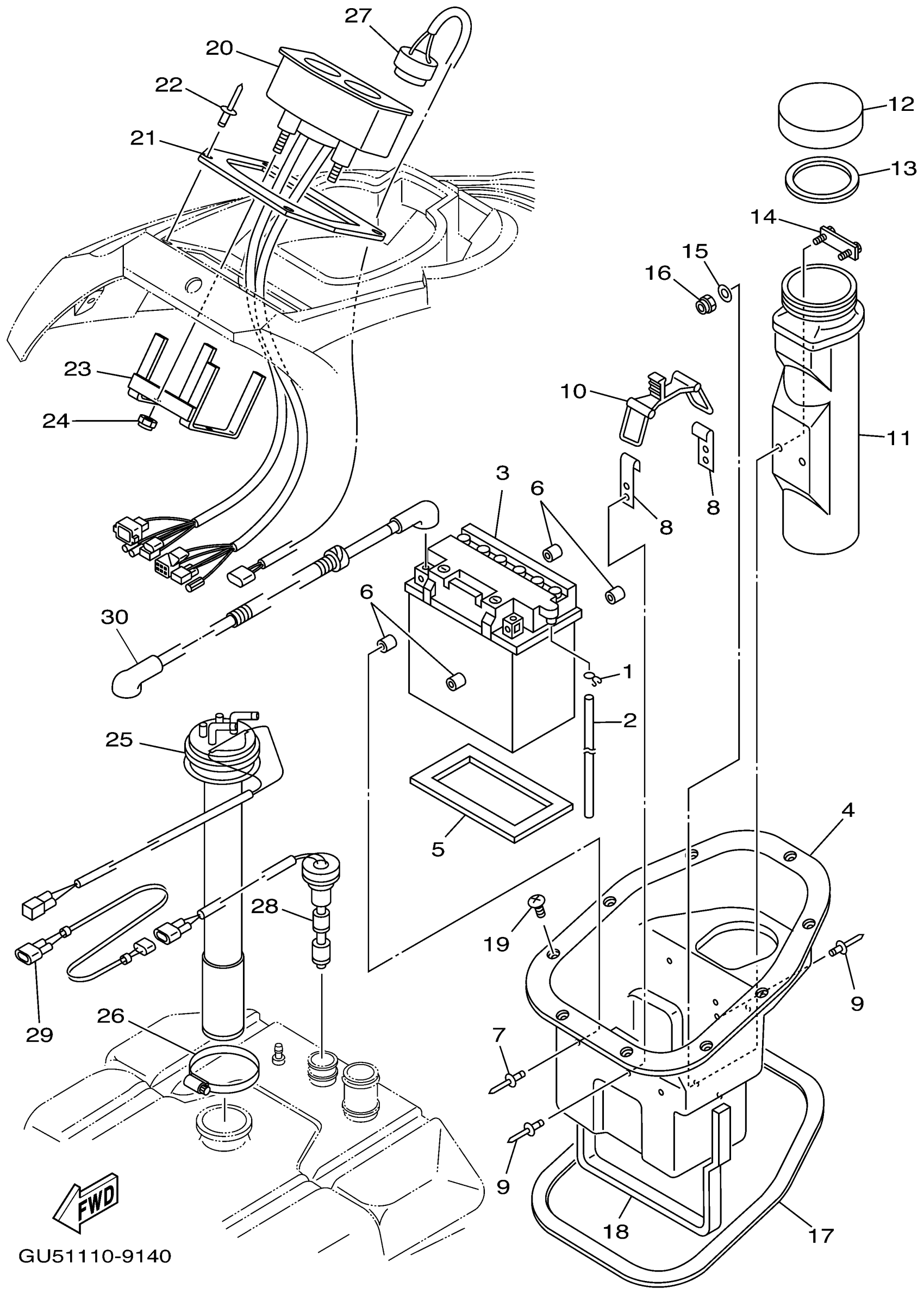

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 ELECTRICAL 2 Diagram

#

Description
Price

1

CLIP

90467-089U1-00

$1.44

2

HOSE, AIR VENT 3

GU2-U785H-00-00

Unavailable

3

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

4

BATTERY CASE COMP.

GK5-68211-00-00

Unavailable

5

PAD, BATTERY

F1S-U8221-00-00

$2.75

6

CUSHION, RUBBER

GK5-63768-00-00

$5.80

7

RIVET, BLIND

90267-48802-00

$1.98

8

HOOK A

GA7-65772-00-00

$9.08

9

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

10

BAND, BATTERY

GA7-68218-00-00

$41.99

11

BOX, FIRE EXTINGUISHER

GK5-65983-00-00

Unavailable

12

. CAP, CASE

EW2-65912-00-00

$23.99

13

. PACKING, CASE

EW2-65913-00-00

$5.91

14

BRACKET FIRE EXTINGUISHER

GK5-6593H-00-00

Unavailable

15

. WASHER, PLAIN

92990-05200-00

$4.29

16

NUT, FLANGE

95720-05300-00

$1.28

17

PACKING 48

90656-67105-00

Unavailable

18

PACKING 10

GK5-6266J-00-00

Unavailable

19

SCREW, TAPPING

97780-50014-00

Unavailable

20

METER ASSY

F0D-6820A-31-00

Unavailable

21

PLATE

GU5-68376-00-00

$58.99

22

RIVET, BLIND

90267-489UE-00

Unavailable

23

BRACKET, METER

F0D-68238-10-00

$71.20

24

NUT, FLANGE

95720-05300-00

$1.28

25

SENDER, FUEL

F0V-U824B-04-00

$584.60

26

BAND, HOSE 62

90601-162U5-00

$6.17

27

BUZZER

F1S-68341-00-00

$113.62

28

SENDER, OIL

F0D-U824C-21-00

Unavailable

29

WIRE LEAD 1

GU5-U8294-00-00

Unavailable

30

WIRE, LEAD

63N-82117-00-00

$118.17
