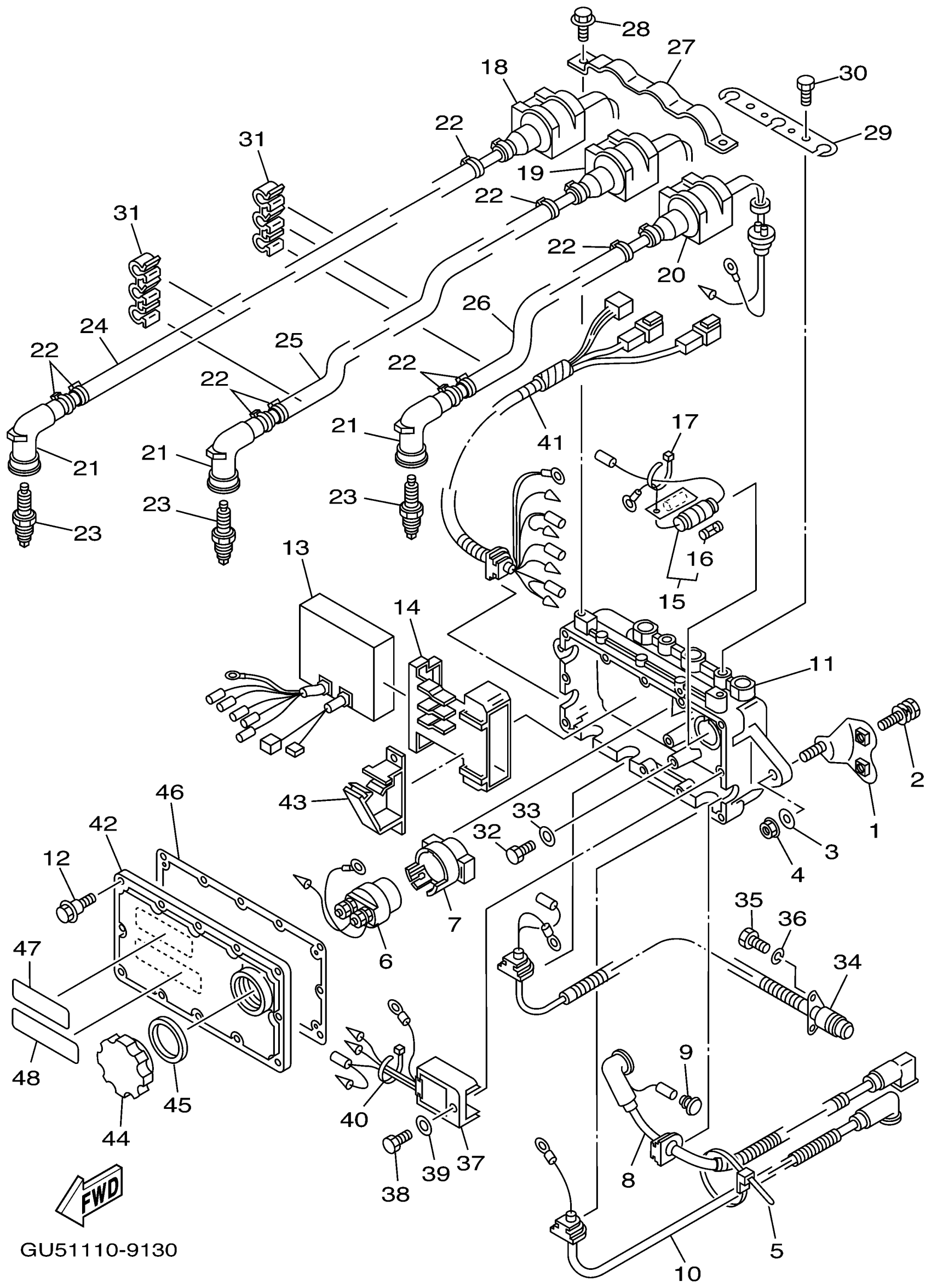

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

F0E-6815D-00-00

Unavailable

2

BOLT,WITH WASHER

90119-06940-00

Unavailable

3

WASHER, PLAIN

92990-08200-00

$2.36

4

. NUT, SELF-LOCKING

95720-08300-00

$3.33

5

BAND (EU0)

90601-20009-00

$6.36

6

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

7

HOLDER, RELAY

6M6-81952-01-00

Unavailable

8

WIRE, LEAD

61L-82117-10-00

Unavailable

9

. COVER, LEAD WIRE

703-82119-00-00

$3.07

10

WIRE, LEAD

62E-82117-20-00

$89.38

11

HOUSING

65U-8552A-00-94

Unavailable

12

BOLT

90109-05MA0-00

$9.64

13

C.D.I. UNIT

65U-85540-00-00

Unavailable

14

BAND

65U-85546-00-00

Unavailable

15

FUSE HOLDER ASSY

65U-82150-00-00

Unavailable

16

FUSE (10A)

1E6-82151-00-00

Unavailable

17

CLAMP

90465-10098-00

$1.68

18

IGNITION COIL ASSY

65U-85570-00-00

Unavailable

19

IGNITION COIL ASSY

66G-85570-10-00

Unavailable

20

IGNITION COIL ASSY

66G-85570-20-00

Unavailable

21

PLUG CAP ASSY

63M-82370-01-00

$66.49

22

CLAMP

90465-10098-00

$1.68

23

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

24

TUBE, CORD

63M-82351-00-00

$13.40

25

TUBE, CORD

63M-82351-00-00

$13.40

26

TUBE, CORD

66G-82351-00-00

Unavailable

27

BRACKET

65U-85542-00-00

$38.99

28

BOLT, HEXAGON W/W DEEP RECESS

97E95-08516-00

Unavailable

29

COVER

65U-85525-00-00

Unavailable

30

BOLT(GH1)

97080-06012-00

$2.56

31

CLAMP, CORD

65U-81317-10-00

$7.27

32

BOLT(GH1)

97080-06012-00

$2.56

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

THERMOSWITCH ASSEMBLY

65U-82560-00-00

Unavailable

35

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

36

WASHER, SPRING

92995-06100-00

$2.95

37

RECTIFIER & REGULATOR ASSY

6H2-81960-00-00

$121.41

38

BOLT(7U8)

97080-06020-00

$3.63

39

WASHER, PLAIN (646)

92990-06600-00

Unavailable

40

CLAMP

90465-10098-00

$1.68

41

EXTENSION, WIRE LEAD

66G-82553-00-00

Unavailable

42

COVER, CASE

65U-8552E-00-00

Unavailable

43

CLAMP

90464-06M29-00

$6.36

44

CAP

6M6-8132W-00-00

$14.38

45

GASKET

6M6-81844-00-00

$10.99

46

GASKET, TERMINAL

65U-81921-00-00

$68.17

47

MARK 3

6R7-83623-40-00

$7.27

48

PLATE, EPA

65U-2179X-00-00

Unavailable
