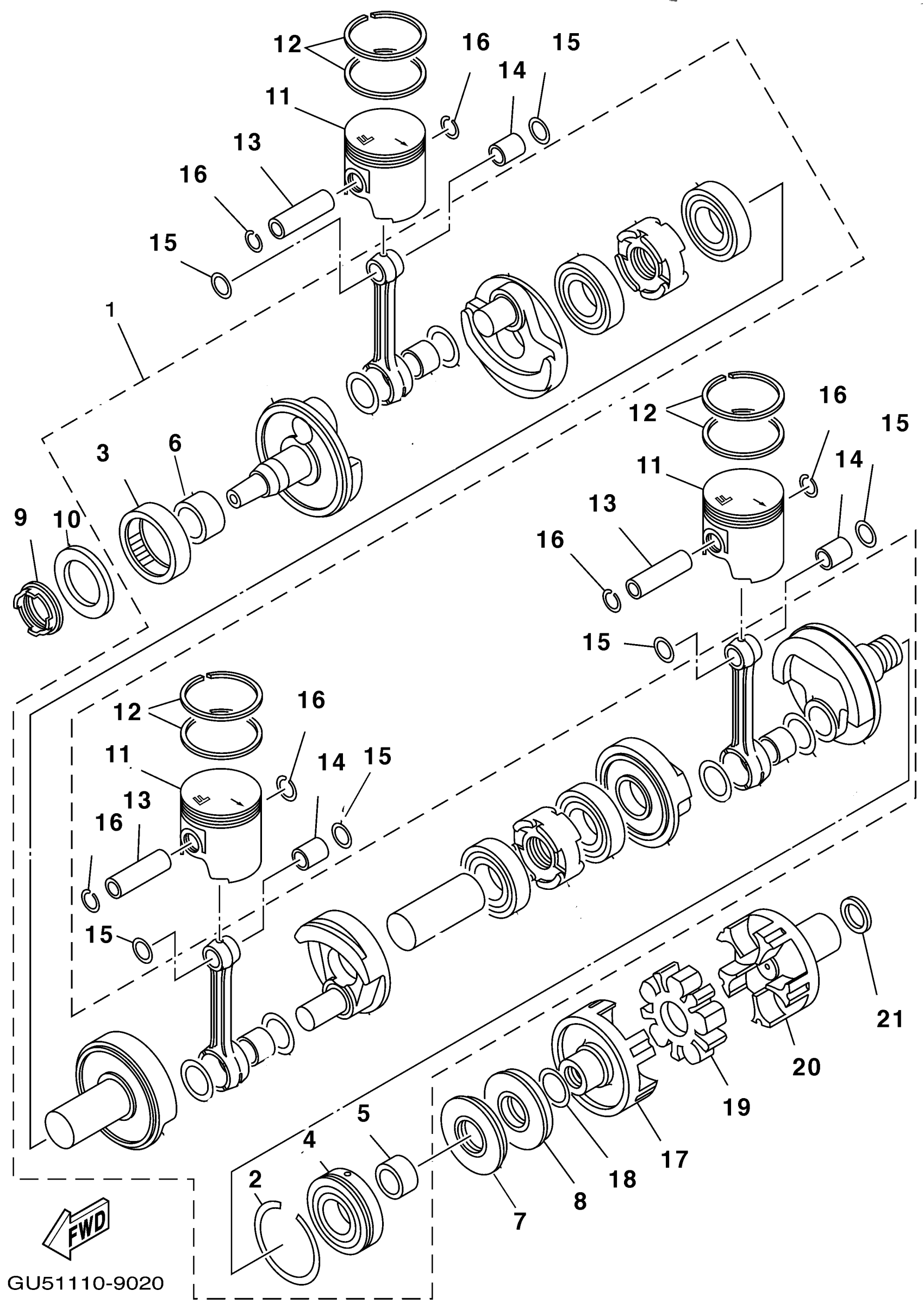

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

65U-11400-00-00

$2,513.62

2

CIRCLIP (834)

93440-80023-00

$12.59

3

. BEARING

93390-000U4-00

$230.29

4

BEARING(6M6)

93306-307U3-00

$72.67

5

. COLLAR, DRIVE SHAFT

62T-45526-00-00

$22.59

6

. COLLAR

90387-32M02-00

$81.80

7

. OIL SEAL

93102-36M33-00

$15.55

8

. OIL SEAL

93101-36M46-00

$17.41

9

. OIL SEAL

93103-32M01-00

$14.81

10

SPACER

65U-11445-00-00

Unavailable

11

PISTON (STD)

65U-11631-02-90

$171.20

11

PISTON (0.25MM OS)

65U-11635-02-00

$171.20

11

PISTON (0.50MM OS)

65U-11636-02-00

$98.44

12

PISTON RING SET (STD)

65U-11603-01-00

$86.35

12

PISTON RING SET (0.25MM OS)

65U-11604-01-00

Unavailable

12

PISTON RING SET (0.50MM OS)

65U-11605-01-00

Unavailable

13

PIN, PISTON

62T-11633-00-00

$18.15

14

BEARING, CYLINDRICAL(62T)

93310-320U2-00

$34.68

15

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

16

CIRCLIP (8H0)

93450-21053-00

Unavailable

17

FLANGE, COUPLING

63M-45813-01-94

Unavailable

18

SEAL

62T-45127-01-00

Unavailable

19

RUBBER SHAFT COUPLING

63M-4581J-00-00

$86.35

20

FLANGE, COUPLING

63M-45813-01-94

Unavailable

21

WASHER, PLATE

90201-27008-00

Unavailable
