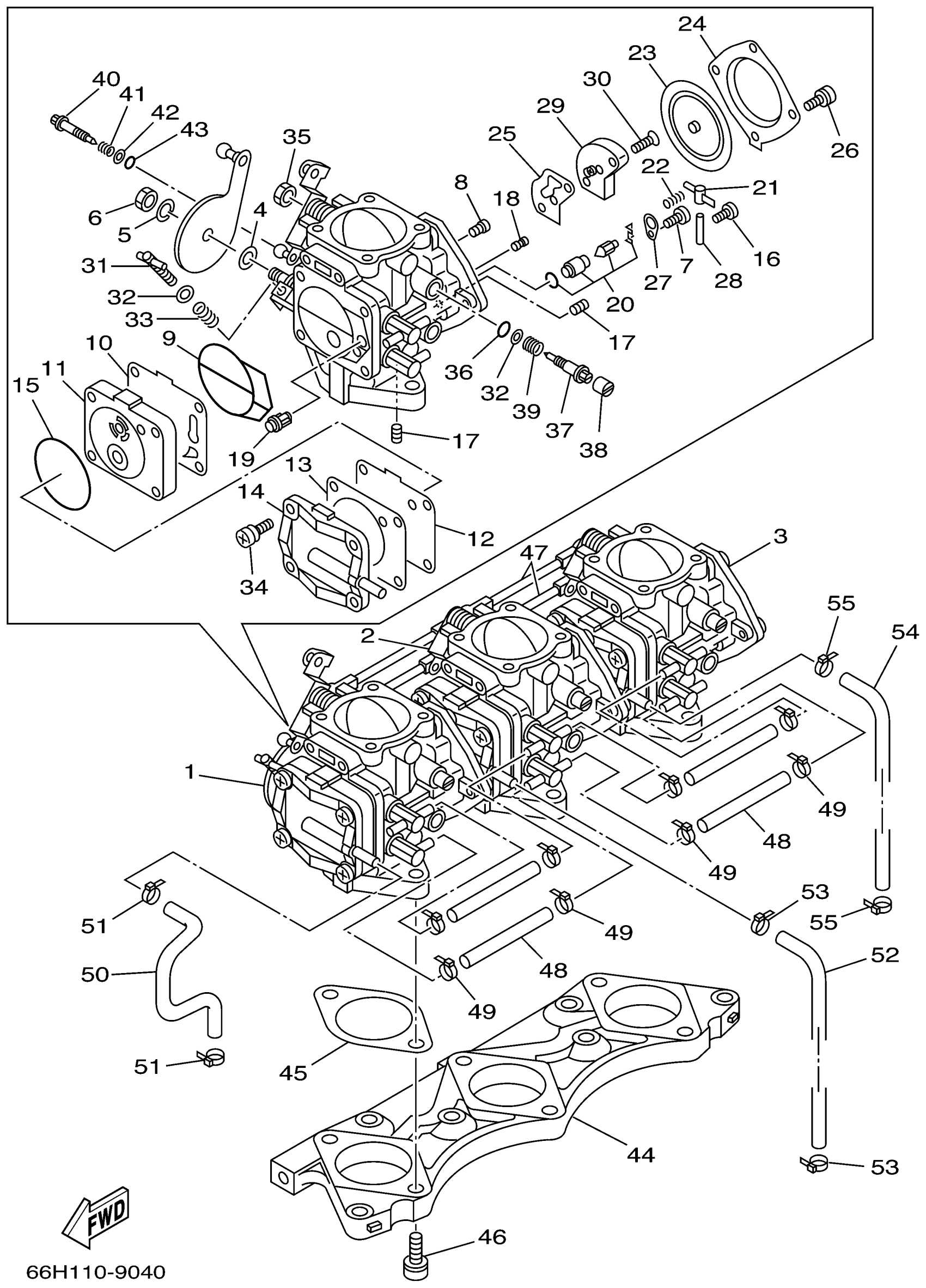

Yamaha SV1200X (WAVE RUNNER SUV1200) GU51 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

66G-14301-02-00

Unavailable

2

CARBURETOR ASSY 2

66G-14302-01-00

Unavailable

3

CARBURETOR ASSY 3

66G-14303-01-00

Unavailable

4

. COLLAR

6K8-14534-10-00

$19.68

5

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

6

. NUT

95380-08700-00

$3.05

7

. SCREW

6M6-14503-00-00

$5.55

8

JET, MAIN (#135)

3G2-14231-27-00

$9.88

9

. O-RING

6K8-14564-00-00

$8.51

10

. DIAPHRAGM

6K8-24411-20-00

$29.63

11

BODY 2

6M6-24413-02-00

$45.81

12

. VALVE, CHECK

6K8-24421-10-00

$24.44

13

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$10.36

14

. COVER

6K8-24452-10-00

Unavailable

15

. O-RING

6K8-14563-00-00

Unavailable

16

. SCREW

6K8-14503-02-00

Unavailable

17

. SCREW

6K8-14521-10-00

$34.49

18

JET, MAIN (# 95)

830-14231-19-00

Unavailable

18

JET, MAIN (#100)

830-14231-20-00

Unavailable

18

JET,MAIN #97.5

830-1423A-70-00

Unavailable

19

. STRAINER

6R7-14569-00-00

$11.48

20

NEEDLE

64T-14916-01-00

$49.49

21

. ARM, FLOAT

6K8-14547-01-00

$8.26

22

. SPRING

63M-14253-00-00

Unavailable

23

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

24

. BODY, PUMP 1

6R7-14542-00-00

$56.05

25

. GASKET

6K8-14536-11-00

$8.14

26

. SCREW

6K8-14591-10-00

$4.57

27

. PLATE

6K8-14527-11-00

$11.35

28

. PIN, FLOAT

439-14186-00-00

$12.49

29

. BODY 1

6R7-24412-01-00

$23.36

30

SCREW, STOP

6K8-14523-12-00

Unavailable

31

SCREW,ADJUST

6M6-14521-01-00

Unavailable

32

WASHER,NEEDLE

812-14235-00-00

$2.44

33

. SPRING, THROTTLE STOP

47X-14133-00-00

$3.18

34

SCREW, WITH WASHER(61B)

97985-05330-00

$2.80

35

. NUT

95382-06700-00

Unavailable

36

. O-RING

6K8-14562-00-00

$1.88

37

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

38

. CAP, CARBURETOR

6K8-14471-10-00

$8.17

39

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

40

. SCREW, PILOT

65U-14923-10-00

$13.99

41

. SPRING

6K8-14589-00-00

$3.70

42

WASHER, NEEDLE

822-14235-00-00

Unavailable

43

O-RING

583-14561-00-00

Unavailable

44

PLATE

65U-14243-00-00

Unavailable

45

GASKET

64X-14398-00-00

$28.52

46

BOLT, HOLDING

64X-14162-00-00

Unavailable

47

ROD, ACCEL LEVER

65U-41217-00-00

Unavailable

48

HOSE (L120)

90445-113E8-00

Unavailable

49

CLAMP

90465-10098-00

$1.68

50

PIPE 5

65U-24315-01-00

$11.99

51

CLAMP

90465-10098-00

$1.68

52

PIPE 4

65U-24314-01-00

$4.81

53

CLAMP

90465-10098-00

$1.68

54

PIPE 4

65U-24314-01-00

$4.81

55

CLAMP

90465-10098-00

$1.68
