- SV1200C (SUV1200) GU5A 2004
REPAIR KIT 1

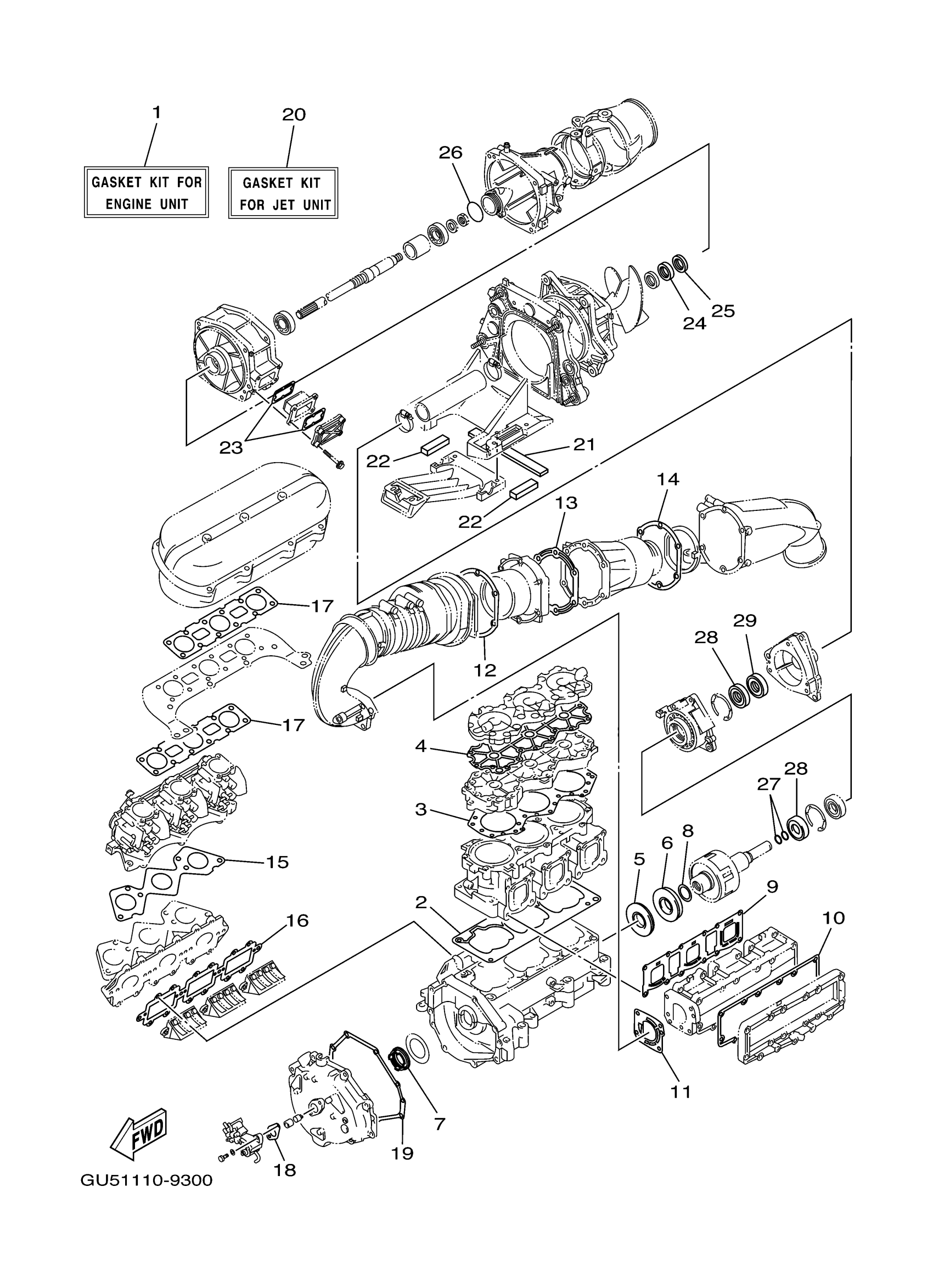

Yamaha SV1200C (SUV1200) GU5A 2004 REPAIR KIT 1 Diagram
#
1
GASKET KIT ENGINE UNIT
65U-W0001-00-00
Unavailable
2
GASKET, CYLINDER
63M-11351-01-00
Unavailable
3
GASKET, CYLINDER HEAD 1
65U-11181-01-00
Unavailable
4
GASKET, HEAD COVER 1
63M-11193-01-00
Unavailable
5
. OIL SEAL
93102-36M33-00
Unavailable
6
. OIL SEAL
93101-36M46-00
Unavailable
7
. OIL SEAL
93103-32M01-00
Unavailable
8
SEAL
62T-45127-01-00
Unavailable
9
GASKET, EXHAUST PIPE
65U-14613-01-00
Unavailable
10
GASKET, MUFFLER DAMPER 1
63M-14739-00-00
Unavailable
11
GASKET, MUFFLER DAMPER 2
63M-14749-01-00
Unavailable
12
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
13
GASKET, EXHAUST INNER COVER
63M-41122-00-00
Unavailable
14
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
15
GASKET
65U-13556-00-00
Unavailable
16
GASKET
65U-13566-00-00
Unavailable
17
GASKET, AIR COOLER COVER 1
65U-13674-00-00
Unavailable
18
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
19
GASKET, HOLE COVER
63M-81365-00-00
Unavailable
20
GASKET KIT FOR JET UNIT
66V-W0001-20-00
Unavailable
21
FELT, PACKING
66V-R1367-00-00
Unavailable
22
FELT, PACKING 2
66V-R1368-00-00
Unavailable
23
. O-RING
66V-42414-00-00
Unavailable
24
OIL SEAL
93101-28M66-00
Unavailable
25
OIL SEAL
93101-28002-00
Unavailable
26
. O-RING
93210-46M16-00
Unavailable
27
O-RING
93210-19001-00
Unavailable
28
OIL SEAL(62T)
93101-25M55-00
Unavailable
29
OIL SEAL
93101-24001-00
Unavailable
