- SV1200C (SUV1200) GU5A 2004
JET UNIT 2

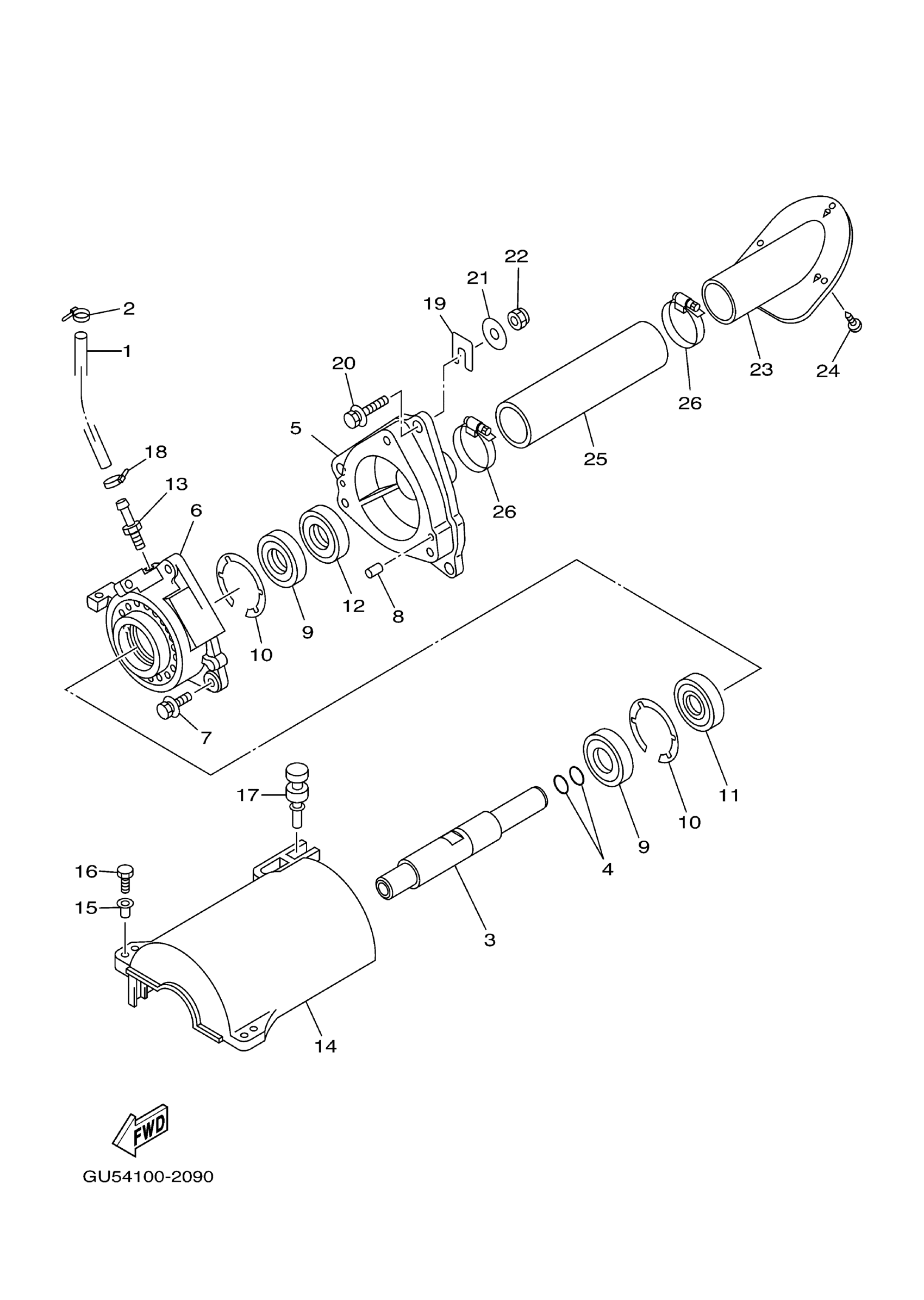

Yamaha SV1200C (SUV1200) GU5A 2004 JET UNIT 2 Diagram
#
Description
Price
1
HOSE (L445)
90445-09M21-00
$26.99
2
CLAMP
90465-10098-00
Unavailable
3
SHAFT, COUPLER
68N-51323-00-00
Unavailable
4
O-RING
93210-19001-00
Unavailable
5
HOUSING, BEARING
66G-45331-01-00
Unavailable
6
HOUSING, BEARING
66G-45332-00-00
Unavailable
7
BOLT, WITH WASHER
90119-08841-00
Unavailable
8
PIN, DOWEL (614)
93606-12019-00
$4.24
9
OIL SEAL(62T)
93101-25M55-00
$30.99
10
CIRCLIP
93430-47M04-00
Unavailable
11
BEARING(62G)
93306-205U6-00
Unavailable
12
OIL SEAL
93101-24001-00
$31.99
13
NIPPLE, HOSE
61L-45378-00-00
Unavailable
14
COVER
64Y-51381-00-00
Unavailable
15
COLLAR
90387-06M60-00
Unavailable
16
BOLT, WITH WASHER
90119-06892-00
Unavailable
17
GROMMET(6R7)
90480-06M46-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
SHIM (0.5)
GD0-U7249-00-05
Unavailable
19
SHIM (0.5)
GD0-U7249-00-05
Unavailable
20
BOLT, WITH WASHER
90119-08801-00
Unavailable
21
WASHER, PLATE
90201-099U1-00
Unavailable
22
NUT, NYLON (6J8)
95780-08300-00
Unavailable
23
JOINT, PIPE
GK5-6883E-00-00
Unavailable
24
YBS81-412 SCREW,O.HEAD TAPPING
97780-40312-00
Unavailable
25
PIPE, 1
GU5-U883B-00-00
Unavailable
26
BAND, HOSE 52
90601-152U3-00
Unavailable
