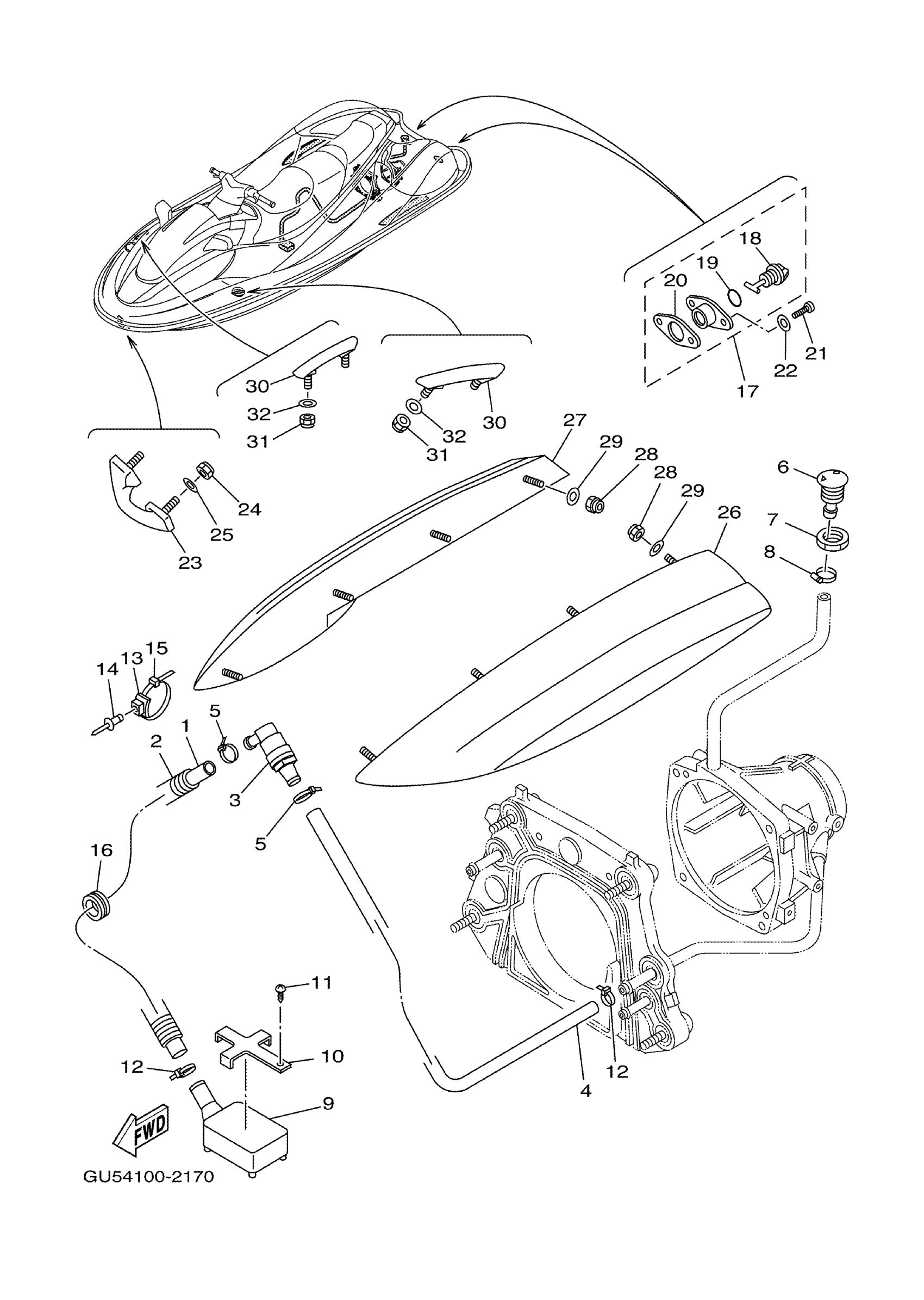

Yamaha SV1200C (SUV1200) GU5A 2004 HULL DECK Diagram

#

Description
Price

1

HOSE

90445-19M01-00

Unavailable

2

HOSE (L650)

90446-27MA4-00

Unavailable

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE

90445-19M01-00

Unavailable

5

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

6

SPOUT

FN8-6269B-00-00

$22.49

7

NUT

EU0-61652-00-00

$11.48

8

CLIP

90600-91755-00

$5.91

9

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

10

BASE

FJ0-67618-00-00

Unavailable

11

SCREW, TAPPING

9778R-50112-00

Unavailable

12

BAND

90601-200U1-00

$2.77

13

CLAMP COMP (EU0)

90600-91736-00

$6.22

14

RIVET, BLIND

90267-489UE-00

Unavailable

15

CLAMP

90464-32801-00

$1.23

16

GROMMET

90480-329U2-00

Unavailable

17

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

18

. PLUG, DRAIN

EU0-62282-00-00

$7.40

19

. O-RING

EU0-62283-00-00

$3.70

20

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

21

SCREW, TAPPING

97780-50620-00

$2.75

22

WASHER

9299R-05200-00

$3.16

23

BOW EYE 1

GU5-61624-00-00

Unavailable

24

NUT, NYLON (6J8)

95780-08300-00

$10.55

25

WASHER, PLATE

90201-08800-00

Unavailable

26

STABILIZER LH

GU5-6883N-00-00

Unavailable

27

STABILIZER RH

GU5-6883P-00-00

$174.23

28

NUT, NYLON

9572R-06300-00

$2.80

29

WASHER, PLATE

90201-06808-00

Unavailable

30

DECK EYE

GU5-61685-01-00

Unavailable

31

NUT, NYLON (6J8)

95780-08300-00

$10.55

32

WASHER

9299R-08200-00

Unavailable
