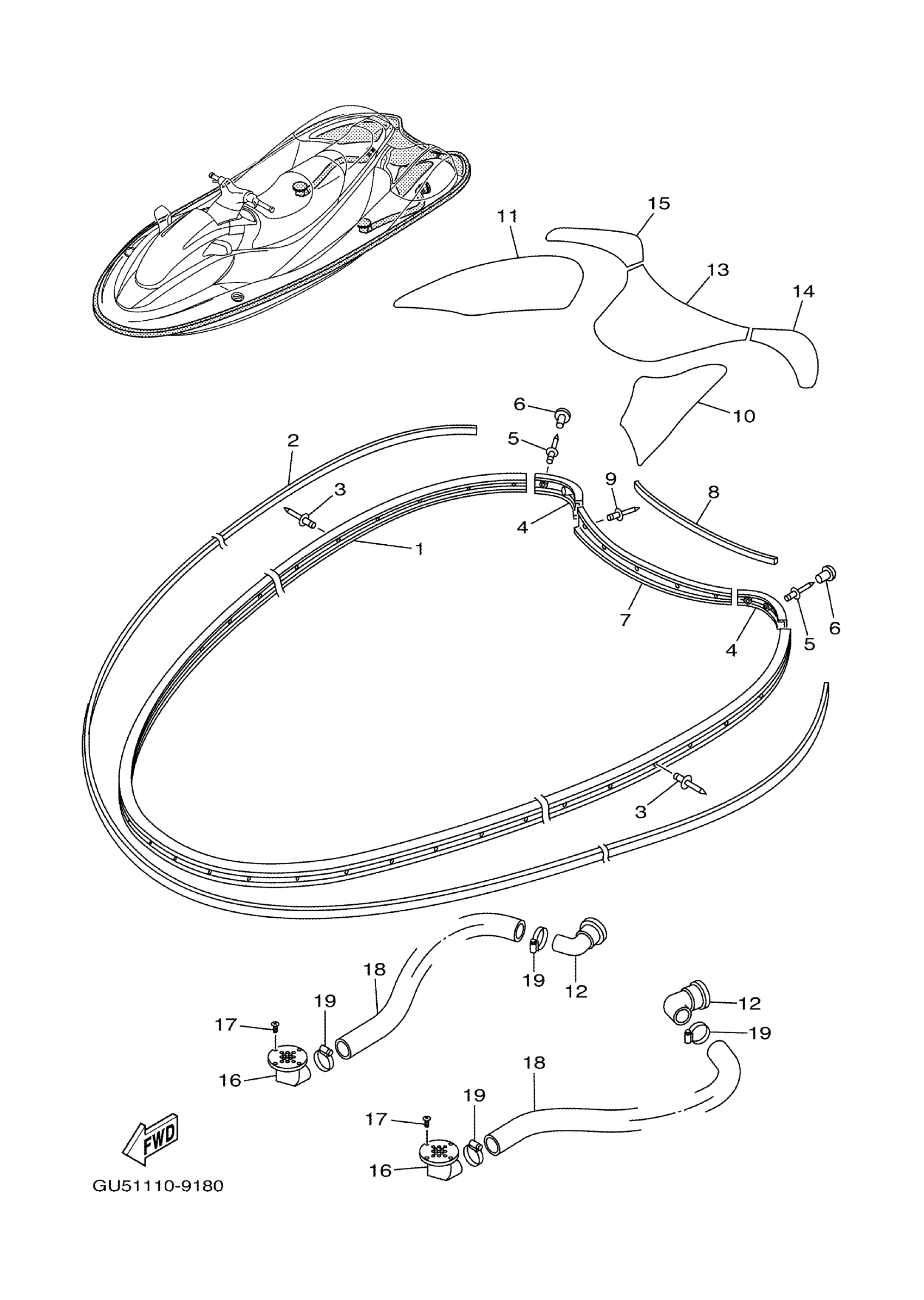

Yamaha SV1200C (SUV1200) GU5A 2004 GUNWALE MAT Diagram

#

Description

Price

1

GUNWALE, SIDE & INNER KIT

GU5-U2512-01-KT

Unavailable

2

GUNWALE,INNER

GU5-U2519-01-00

Unavailable

3

RIVET, BLIND

90267-489US-00

Unavailable

4

GUNWALE, STERN 1

GU5-U251D-00-00

Unavailable

5

RIVET, BLIND

90267-48835-00

$2.50

6

PLUG, MUSHROOM

GJ3-U352E-50-00

Unavailable

7

COVER, GUNWALE 1

GU5-U252C-01-00

Unavailable

8

COVER,GUNWALE 2

GU5-U252D-01-00

Unavailable

9

RIVET, BLIND

90267-489US-00

Unavailable

10

MAT, STEP 1

GU5-U351H-00-00

Unavailable

11

MAT, STEP 2

GU5-U351J-00-00

Unavailable

12

THRU-HULL FITTING

GP1-U7617-00-00

Unavailable

13

MAT, UPPER

GU5-U3581-10-00

Unavailable

14

MAT, SIDE 1

GU5-U351C-10-00

Unavailable

15

MAT,SIDE 2

GU5-U351D-10-00

Unavailable

16

SCUPPER, DRAIN

GU5-U2287-00-00

Unavailable

17

SCREW, TAPPING

90162-08S12-00

$1.23

18

HOSE, DRAIN

GU5-U8532-00-00

Unavailable

19

BAND, HOSE 52

90601-152U3-00

$5.67
