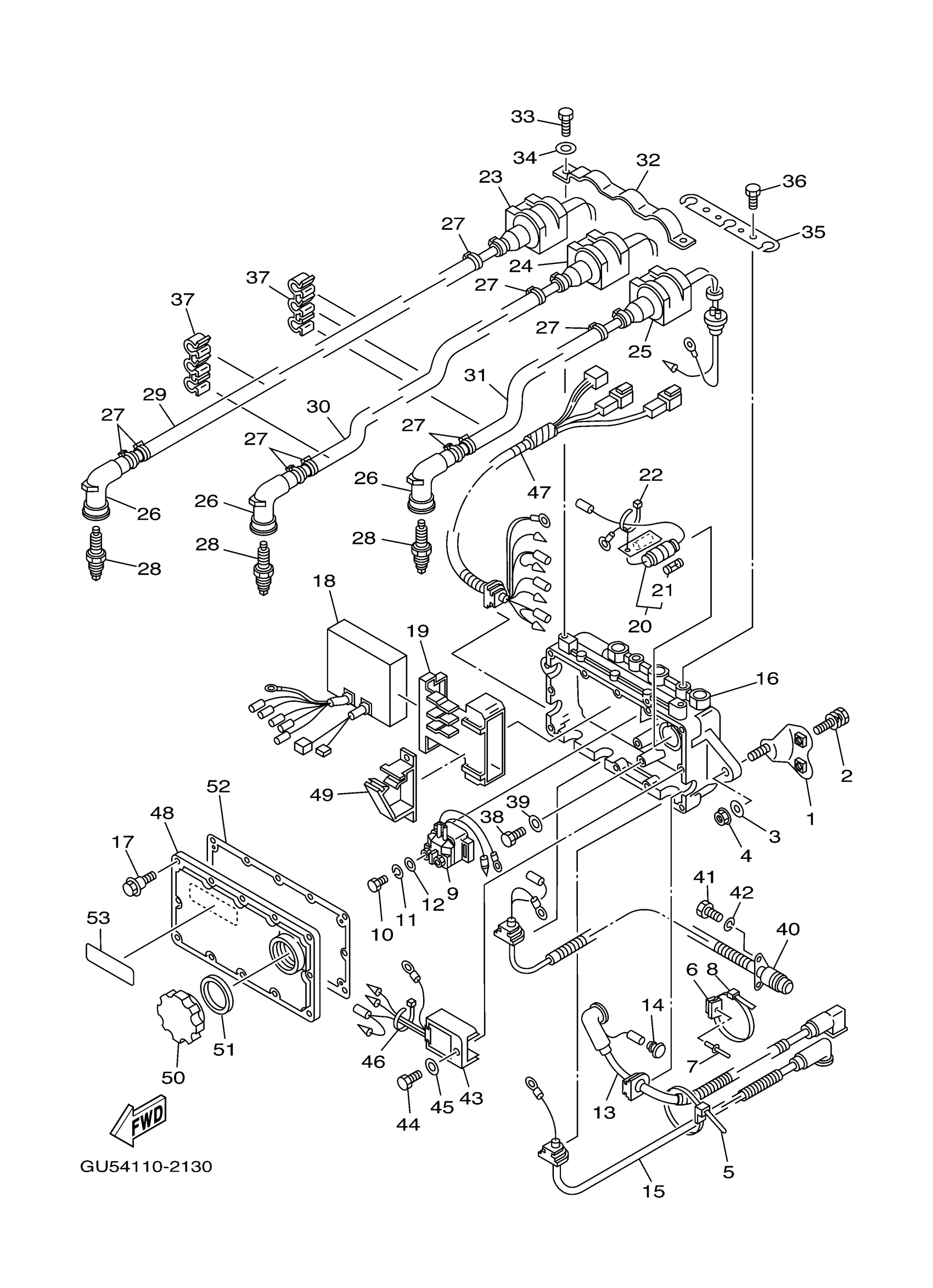

Yamaha SV1200C (SUV1200) GU5A 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

F0E-6815D-00-00

Unavailable

2

BOLT,WITH WASHER

90119-06940-00

Unavailable

3

WASHER

9299R-08200-00

$2.29

4

NUT, NYLON (6J8)

95780-08300-00

Unavailable

5

CLAMP

90464-32801-00

Unavailable

6

CLAMP COMP (EU0)

90600-91736-00

$8.49

7

RIVET, BLIND

90267-48802-00

Unavailable

8

CLAMP

90464-32801-00

Unavailable

9

STARTER RELAY ASSY

68N-81940-00-00

Unavailable

10

BOLT

97085-06010-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

WIRE, LEAD

61L-82117-10-00

Unavailable

14

. COVER, LEAD WIRE

703-82119-00-00

Unavailable

15

WIRE, LEAD

62E-82117-20-00

Unavailable

16

HOUSING

65U-8552A-00-94

Unavailable

17

BOLT

90109-05MA0-00

Unavailable

18

C.D.I. UNIT

65U-85540-00-00

Unavailable

19

BAND

65U-85546-00-00

Unavailable

20

FUSE HOLDER ASSY

65U-82150-00-00

Unavailable

21

FUSE (10A)

1E6-82151-00-00

Unavailable

22

CLAMP

90465-10098-00

Unavailable

23

IGNITION COIL ASSY

65U-85570-00-00

Unavailable

24

IGNITION COIL ASSY

66G-85570-10-00

Unavailable

25

IGNITION COIL ASSY

66G-85570-20-00

Unavailable

26

PLUG CAP ASSY

63M-82370-01-00

Unavailable

27

CLAMP

90465-10098-00

Unavailable

28

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

29

TUBE, CORD

63M-82351-00-00

Unavailable

30

TUBE, CORD

63M-82351-00-00

Unavailable

31

TUBE, CORD

66G-82351-00-00

Unavailable

32

BRACKET

65U-85542-00-00

Unavailable

33

BOLT, HEXAGON DEEP RECESS

97D95-08016-00

Unavailable

34

.. WASHER, PLATE

92990-08600-00

Unavailable

35

COVER

65U-85525-00-00

Unavailable

36

BOLT(GH1)

97080-06012-00

Unavailable

37

CLAMP, CORD

65U-81317-10-00

Unavailable

38

BOLT(GH1)

97080-06012-00

Unavailable

39

WASHER, PLAIN (646)

92990-06600-00

$2.80

40

THERMO SWITCH ASSY

65U-82560-11-00

Unavailable

41

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

42

WASHER, SPRING

92995-06100-00

Unavailable

43

RECTIFIER & REGULATOR ASSY

6H2-81960-00-00

Unavailable

44

BOLT(7U8)

97080-06020-00

Unavailable

45

WASHER, PLAIN (646)

92990-06600-00

$2.80

46

CLAMP

90465-10098-00

Unavailable

47

EXTENSION, WIRE LEAD

66G-82553-00-00

Unavailable

48

COVER, CASE

65U-8552E-00-00

Unavailable

49

CLAMP

90464-06M29-00

Unavailable

50

CAP

6M6-8132W-00-00

Unavailable

51

GASKET

6M6-81844-00-00

Unavailable

52

GASKET, TERMINAL

65U-81921-00-00

Unavailable

53

MARK 3

6R7-83623-40-00

Unavailable
