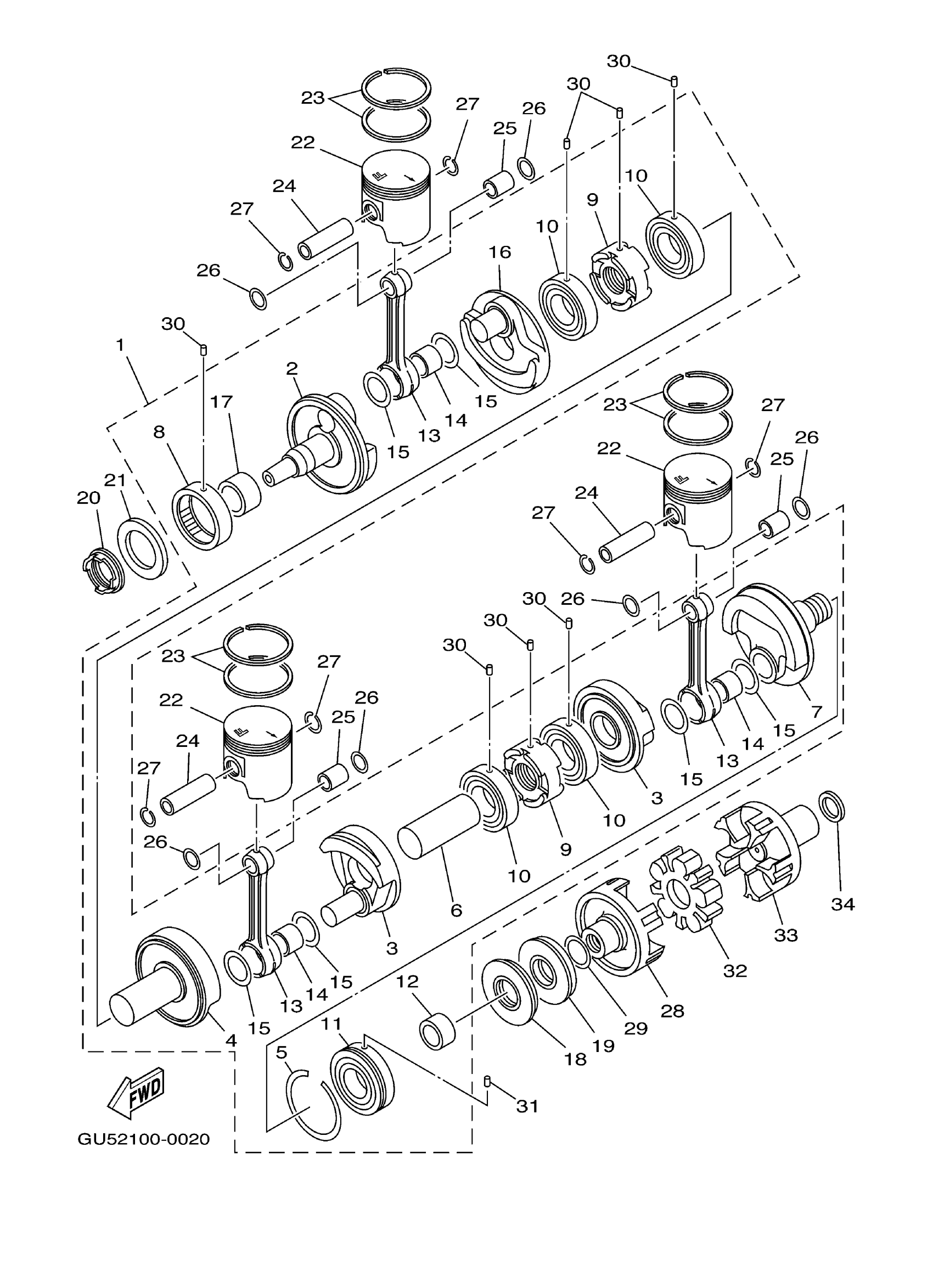

Yamaha SV1200C (SUV1200) GU5A 2004 CRANKSHAFT PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSY

65U-11400-00-00

Unavailable

2

. CRANK 1

6M6-11412-00-00

Unavailable

3

. CRANK 2

6M6-11422-00-00

Unavailable

4

. CRANK 5

63M-11452-00-00

Unavailable

5

CIRCLIP (834)

93440-80023-00

$15.99

6

. CRANK 3

6M6-11431-10-00

Unavailable

7

. CRANK 4

6M6-11442-01-00

Unavailable

8

. BEARING

93390-000U4-00

Unavailable

9

. SEAL, LABYRINTH 1

65U-11515-00-00

Unavailable

10

BEARING (8U9)

93306-20712-00

$79.99

11

BEARING(6M6)

93306-307U3-00

Unavailable

12

. COLLAR, DRIVE SHAFT

62T-45526-00-00

Unavailable

13

. ROD, CONNECTING

64X-11651-01-00

Unavailable

14

. BEARING

93310-525U4-00

Unavailable

15

WASHER(8AY)

90209-25325-00

$19.99

16

. CRANK 2

65U-11422-00-00

Unavailable

17

. COLLAR

90387-32M02-00

Unavailable

18

. OIL SEAL

93102-36M33-00

Unavailable

19

. OIL SEAL

93101-36M46-00

Unavailable

20

. OIL SEAL

93103-32M01-00

Unavailable

21

SPACER

65U-11445-00-00

Unavailable

22

PISTON (STD)

65U-11631-02-90

Unavailable

22

PISTON (0.25MM OS)

65U-11635-02-00

Unavailable

22

PISTON (0.50MM OS)

65U-11636-02-00

Unavailable

23

PISTON RING SET (STD)

65U-11603-01-00

Unavailable

23

PISTON RING SET (0.25MM OS)

65U-11604-01-00

Unavailable

23

PISTON RING SET (0.50MM OS)

65U-11605-01-00

Unavailable

24

PIN, PISTON

62T-11633-00-00

Unavailable

25

BEARING, CYLINDRICAL(62T)

93310-320U2-00

Unavailable

26

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

27

CIRCLIP (8H0)

93450-21053-00

Unavailable

28

FLANGE, COUPLING

63M-45813-01-94

Unavailable

29

SEAL

62T-45127-01-00

Unavailable

30

PIN (2H7)

93603-10049-00

Unavailable

31

PIN, DOWEL (8H1)

93604-07141-00

Unavailable

32

RUBBER SHAFT COUPLING

63M-4581J-00-00

Unavailable

33

FLANGE, COUPLING

64X-45813-00-94

Unavailable

34

WASHER, PLATE

90201-24800-00

Unavailable
