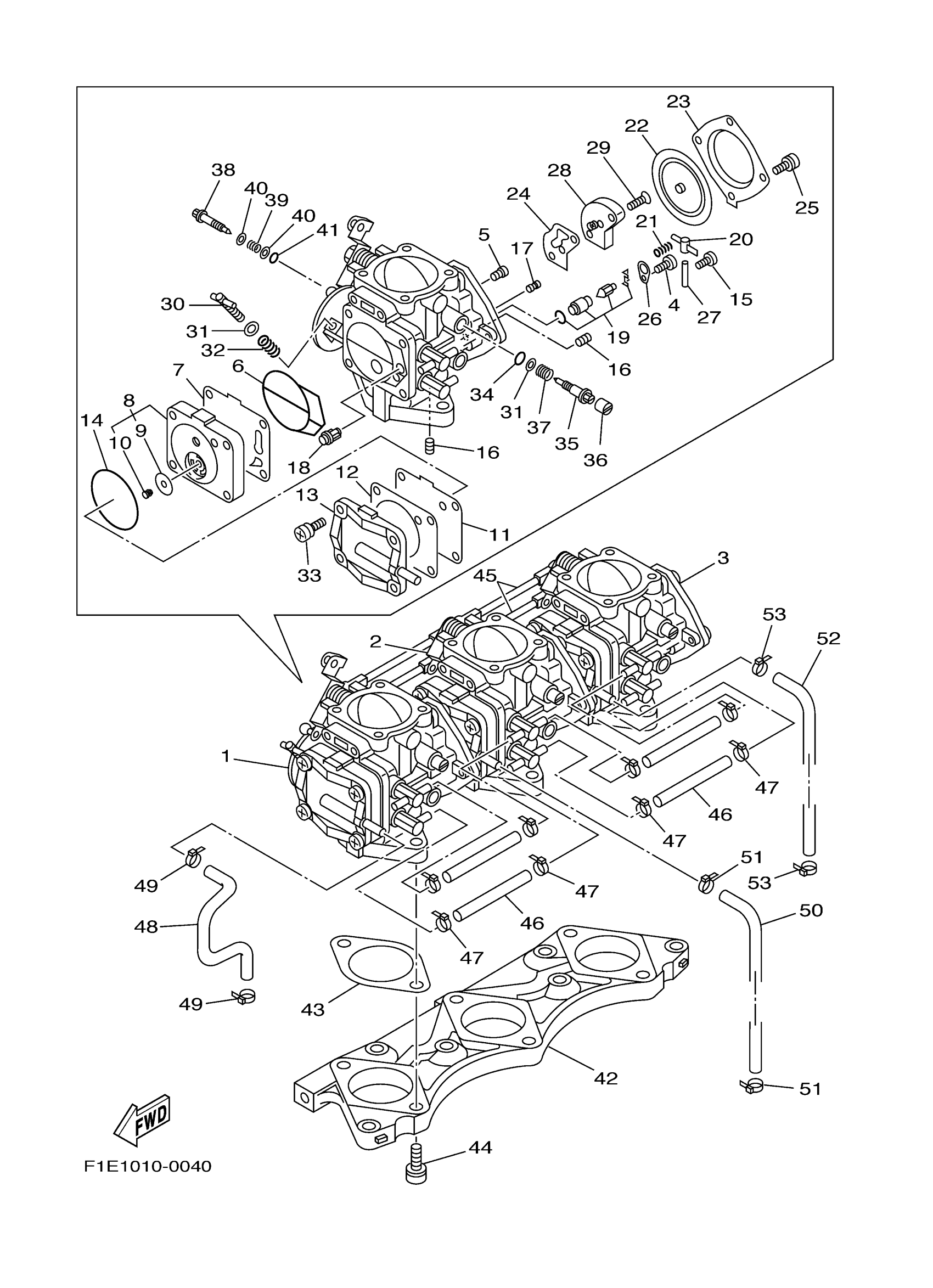

Yamaha SV1200C (SUV1200) GU5A 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

66G-14301-02-00

Unavailable

2

CARBURETOR ASSY 2

66G-14302-01-00

Unavailable

3

CARBURETOR ASSY 3

66G-14303-01-00

Unavailable

4

. SCREW

6M6-14503-00-00

Unavailable

5

JET, MAIN (#135)

3G2-14231-27-00

$13.49

6

. O-RING

6K8-14564-00-00

Unavailable

7

. DIAPHRAGM

6K8-24411-20-00

Unavailable

8

BODY 2

6M6-24413-02-00

Unavailable

9

.. VALVE, CHECK

65U-24421-00-00

Unavailable

10

.. BUSH, FUEL PUMP

65U-24492-00-00

Unavailable

11

. VALVE, CHECK

6K8-24421-10-00

Unavailable

12

. GASKET, FUEL PUMP 1

6K8-24431-20-00

Unavailable

13

. COVER

6K8-24452-10-00

Unavailable

14

. O-RING

6K8-14563-00-00

Unavailable

15

. SCREW

6K8-14503-02-00

Unavailable

16

. SCREW

6K8-14521-10-00

Unavailable

17

JET, MAIN (# 95)

830-14231-19-00

Unavailable

17

JET, MAIN (#100)

830-14231-20-00

Unavailable

17

JET,MAIN #97.5

830-1423A-70-00

Unavailable

18

. STRAINER

6R7-14569-00-00

Unavailable

19

NEEDLE

64T-14916-01-00

Unavailable

20

. ARM, FLOAT

6K8-14547-01-00

Unavailable

21

. SPRING

63M-14253-00-00

Unavailable

22

. DIAPHRAGM, PUMP

6R7-14541-00-00

Unavailable

23

. BODY, PUMP 1

6R7-14542-00-00

Unavailable

24

. GASKET

6K8-14536-11-00

Unavailable

25

. SCREW

6K8-14591-10-00

Unavailable

26

. PLATE

6K8-14527-11-00

Unavailable

27

. PIN, FLOAT

439-14186-00-00

Unavailable

28

. BODY 1

6R7-24412-01-00

Unavailable

29

SCREW, STOP

6K8-14523-12-00

Unavailable

30

SCREW,ADJUST

6M6-14521-01-00

Unavailable

31

WASHER,NEEDLE

812-14235-00-00

Unavailable

32

. SPRING, THROTTLE STOP

47X-14133-00-00

Unavailable

33

SCREW, WITH WASHER(61B)

97985-05330-00

Unavailable

34

. O-RING

6K8-14562-00-00

Unavailable

35

. PLATE, NEEDLE FITTING

6K8-14946-10-00

Unavailable

36

. CAP, CARBURETOR

6K8-14471-10-00

Unavailable

37

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

38

. SCREW, PILOT

65U-14923-10-00

Unavailable

39

. SPRING

6K8-14589-00-00

Unavailable

40

WASHER, NEEDLE

822-14235-00-00

Unavailable

41

O-RING

583-14561-00-00

Unavailable

42

PLATE

65U-14243-00-00

Unavailable

43

GASKET

64X-14398-00-00

Unavailable

44

BOLT, HOLDING

64X-14162-00-00

Unavailable

45

ROD, ACCEL LEVER

65U-41217-00-00

Unavailable

46

HOSE (L120)

90445-113E8-00

Unavailable

47

CLAMP

90465-10098-00

Unavailable

48

PIPE 5

65U-24315-01-00

Unavailable

49

CLAMP

90465-10098-00

Unavailable

50

PIPE 4

65U-24314-01-00

Unavailable

51

CLAMP

90465-10098-00

Unavailable

52

PIPE 4

65U-24314-01-00

Unavailable

53

CLAMP

90465-10098-00

Unavailable
