2003 Yamaha SUV1200 (SV1200B) Ventilation Diagram

← All diagrams

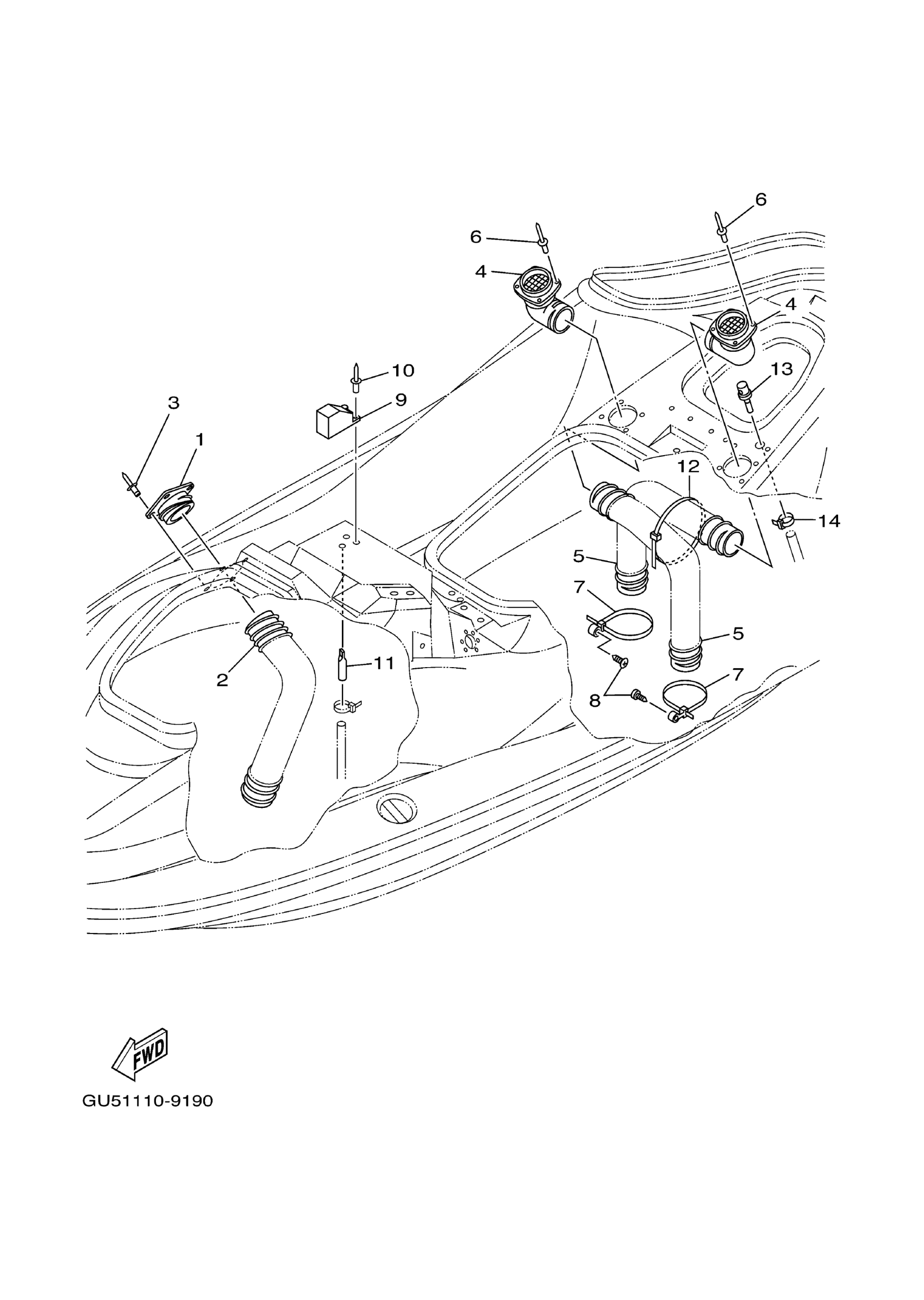

Find the part on the Ventilation diagram for your 2003 Yamaha SUV1200 (SV1200B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha SUV1200 (SV1200B) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BASE, AIR INTAKE

F0D-62127-00-00

1

$77.99

In stock

2

HOSE, VENTILATOR 1

GU5-U213F-00-00

1
Out of stock

3

RIVET, BLIND

90267-489UE-00

1
Out of stock

4

VENTILATOR, OUTLET

F0D-62139-00-00

1

$89.99

In stock

5

HOSE, VENTILATOR 2

GU5-U213G-00-00

1
Out of stock

6

RIVET, BLIND

90267-489UE-00

1
Out of stock

7

BAND

90601-200U8-00

1

$2.15

In stock

8

SCREW, TAPPING

9778R-50116-00

1
Out of stock

9

SOCKET, VENTILATION

GP7-62159-02-00

1

$18.49

In stock

10

RIVET, BLIND

90267-489UE-00

1
Out of stock

11

PIPE, VENTILATION

GK5-62149-00-00

1
Out of stock

12

BAND

90601-200U7-00

1

$3.15

In stock

13

NIPPLE

GJ3-6215F-00-00

1

$9.22

In stock

14

CLAMP

90465-10098-00

1

$2.24

In stock
