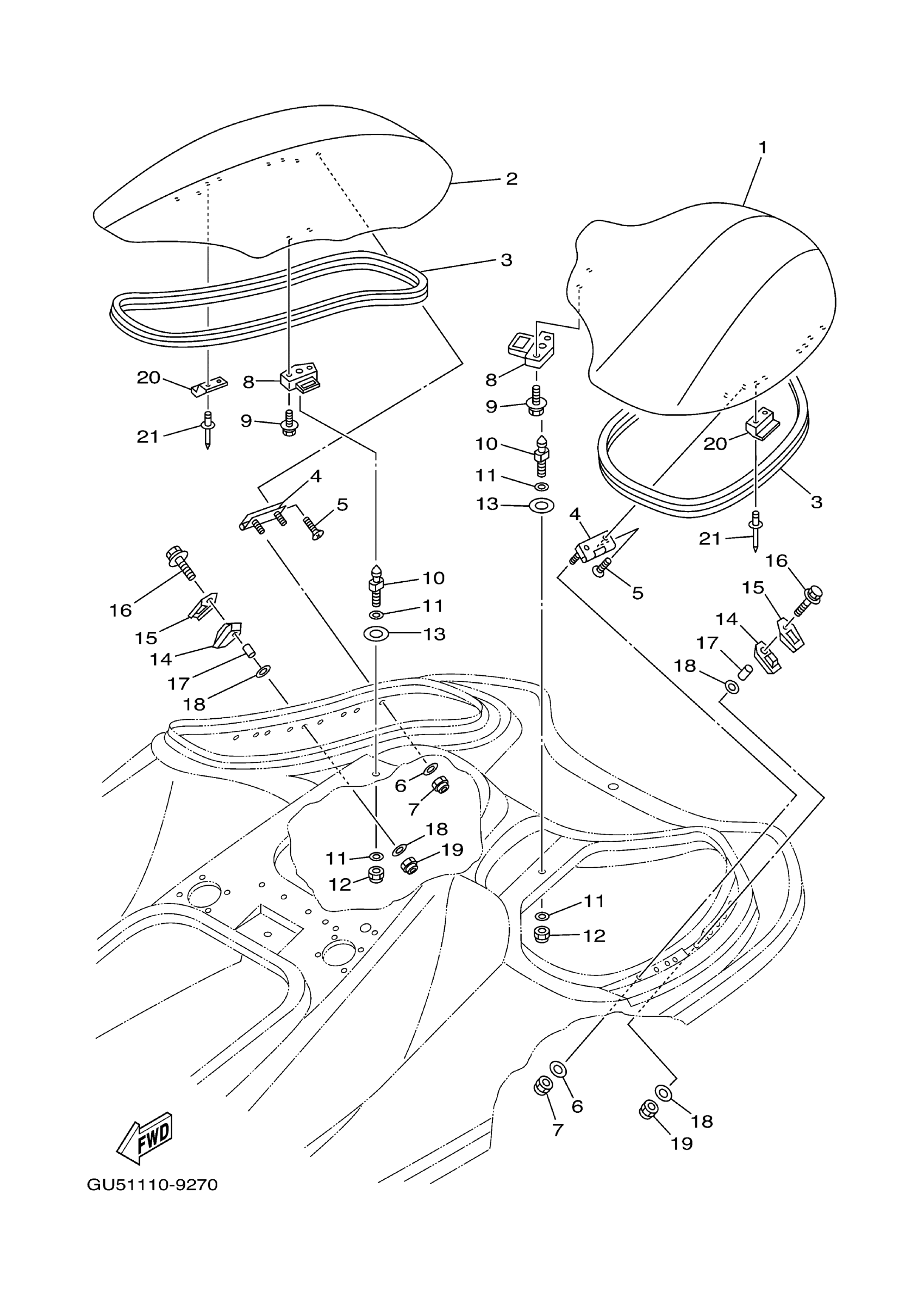

Yamaha SV1200B (SUV1200) GU57 2003 STERN HATCH Diagram

#

Description

Price

1

LOCKER STERN LID COMP.

GU5-U518P-10-00

Unavailable

2

LOCKER STERN LID COMP.

GU5-U518P-20-00

Unavailable

3

PACKING 4

GU5-U266C-00-00

Unavailable

4

HINGE, LID

GK5-6517D-00-00

Unavailable

5

. SCREW, FLAT HEAD

98780-05016-00

Unavailable

6

WASHER, PLATE

90201-05800-00

Unavailable

7

NUT, FLANGE

9572R-05300-00

Unavailable

8

SEAT LOCK ASSY

GJ3-63850-03-00

Unavailable

9

BOLT, WITH WASHER

90119-06808-00

Unavailable

10

PIN

GH1-U3774-00-00

Unavailable

11

WASHER

9299R-10200-00

Unavailable

12

NUT, NYLON

9572R-10300-00

Unavailable

13

TAPE

GJ3-U5578-00-00

Unavailable

14

SUPPORT, LID

GU5-6517P-00-00

Unavailable

15

PLATE, FIX

GU5-65175-00-00

Unavailable

16

BOLT, WITH WASHER

90119-06808-00

Unavailable

17

COLLAR

90387-06900-00

Unavailable

18

WASHER

9299R-06200-00

Unavailable

19

NUT, NYLON

9572R-06300-00

Unavailable

20

DAMPER 1

GU5-U515D-00-00

Unavailable

21

RIVET, BLIND

90267-489UE-00

Unavailable
