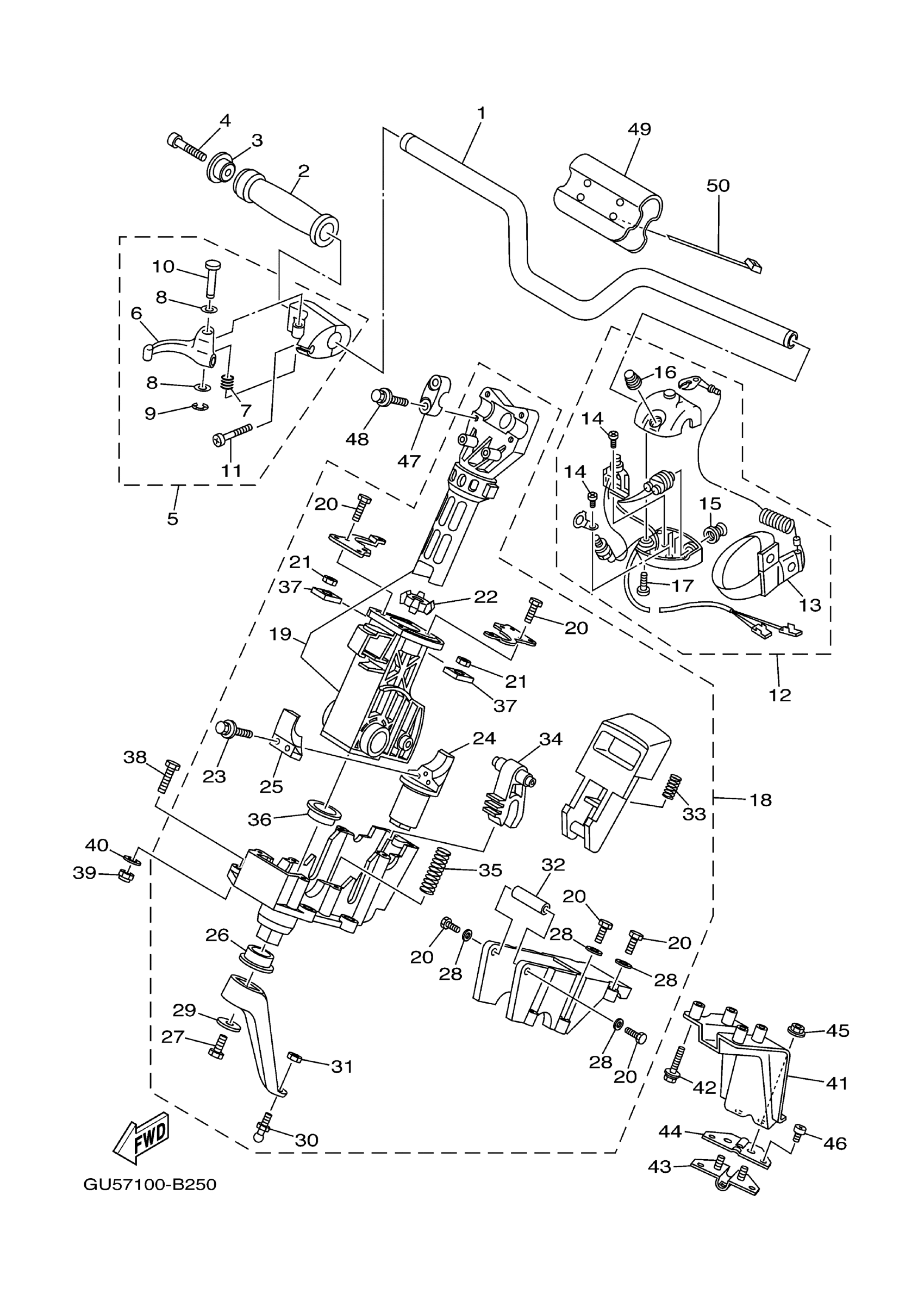

Yamaha SV1200B (SUV1200) GU57 2003 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F0D-U1552-00-00

Unavailable

2

GRIP, HANDLE

GP7-U155D-01-00

Unavailable

3

GRIP, END

GP7-U155F-00-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

Unavailable

5

THROTTLE LEVER ASSY

F0D-67250-10-00

Unavailable

6

LEVER, THROTTLE

F0D-67255-02-00

Unavailable

7

. SPRING

EW2-67256-00-00

Unavailable

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

CIRCLIP (EU0)

99080-04600-00

Unavailable

10

. SHAFT

F0D-67257-00-00

Unavailable

11

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

12

SWITCH BOX ASSY

GP7-68310-01-00

Unavailable

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

Unavailable

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

. STOP BUTTON COMP

FK7-68312-02-00

Unavailable

16

. START BUTTON COMP

FK7-68313-02-00

Unavailable

17

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

18

STEERING MASTER ASSY

GU5-61400-04-00

Unavailable

19

SHAFT ASSY

F0D-67410-01-00

Unavailable

20

. BOLT

F0D-61355-00-00

Unavailable

21

. NUT

F0D-6151S-00-00

Unavailable

22

. BALL

F0D-6152R-00-00

Unavailable

23

. BOLT

F0D-62624-00-00

Unavailable

24

. SHAFT

F0D-6152D-00-00

Unavailable

25

. JOINT, UNIVERSAL

F0D-52543-00-00

Unavailable

26

. BUSH

F0D-6134M-00-00

Unavailable

27

. BOLT, SPECIAL

F0D-6491K-00-00

Unavailable

28

. WASHER

F0D-6134E-00-00

Unavailable

29

. WASHER

F0D-6135D-00-00

Unavailable

30

STUD, JOINT BALL

EU0-61461-02-00

Unavailable

31

NUT, SELF-LOCKING

95720-06300-00

Unavailable

32

. CONNECTOR

F0D-61574-00-00

Unavailable

33

. SPRING

F0D-61349-00-00

Unavailable

34

. LOCK 1

F0D-61782-00-00

Unavailable

35

. SPRING

F0D-6134K-00-00

Unavailable

36

. BUSH

F0D-62814-00-00

Unavailable

37

. HOLDER

F0D-6724H-00-00

Unavailable

38

BOLT (62K)

97095-08035-00

Unavailable

39

NUT, NYLON (6J8)

95780-08300-00

Unavailable

40

WASHER

9299R-08200-00

Unavailable

41

BRACKET, STOPPER CABLE

GU5-61467-01-00

Unavailable

42

BOLT, WITH WASHER

90119-06964-00

Unavailable

43

STOPPER, CABLE

GU5-61468-00-00

Unavailable

44

HOLDER, STOPPER

GU5-6146K-00-00

Unavailable

45

NUT, NYLON

9572R-06300-00

Unavailable

46

. SCREW, PAN HEAD

98580-04006-00

Unavailable

47

HOLDER, HANDLE UPPER

EU0-23814-32-00

Unavailable

48

BOLT, WITH WASHER

90119-089U1-00

Unavailable

49

PAD 1

F0D-U156E-00-00

Unavailable

50

BAND

90601-200U2-00

Unavailable
