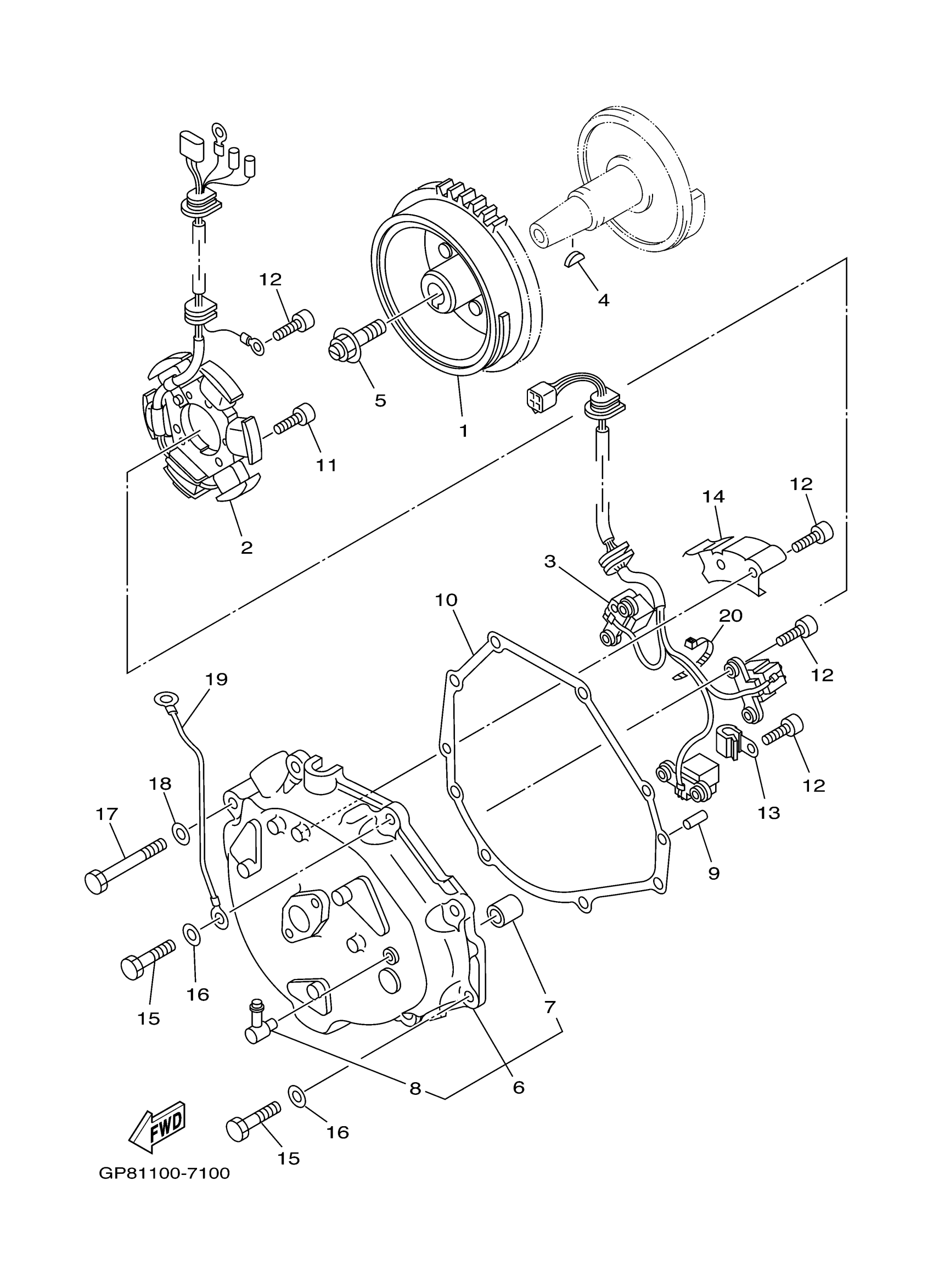

Yamaha SV1200B (SUV1200) GU57 2003 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

65U-85550-01-00

Unavailable

2

STATOR ASSY

65U-85510-01-00

$325.74

3

COIL, PULSER

65U-85580-00-00

Unavailable

4

KEY, WOODRUFF

90280-05001-00

$11.00

5

BOLT(63M)

90109-10M72-00

$31.80

6

COVER, FLYWHEEL

65U-81337-00-8S

$281.80

7

. BUSH, SOLID

90380-12M29-00

Unavailable

8

. NIPPLE, HOSE

676-11372-00-00

$11.49

9

PIN, DOWEL (614)

93606-12019-00

$3.05

10

GASKET, HOLE COVER

63M-81365-00-00

$50.57

11

BOLT,SOCKET

91317-06025-00

$1.91

12

BOLT,SOCKET

91318-06014-00

$0.45

13

CLAMP

90465-06M67-00

Unavailable

14

CLAMP

65U-81328-00-00

$9.08

15

BOLT, HEXAGON (FJ1)

97080-08030-00

$4.29

16

.. WASHER, PLATE

92990-08600-00

$2.17

17

BOLT, HEXAGON

97095-08055-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

$2.17

19

WIRE LEAD

6H5-82117-00-00

Unavailable

20

CLAMP

90465-10098-00

$1.68
