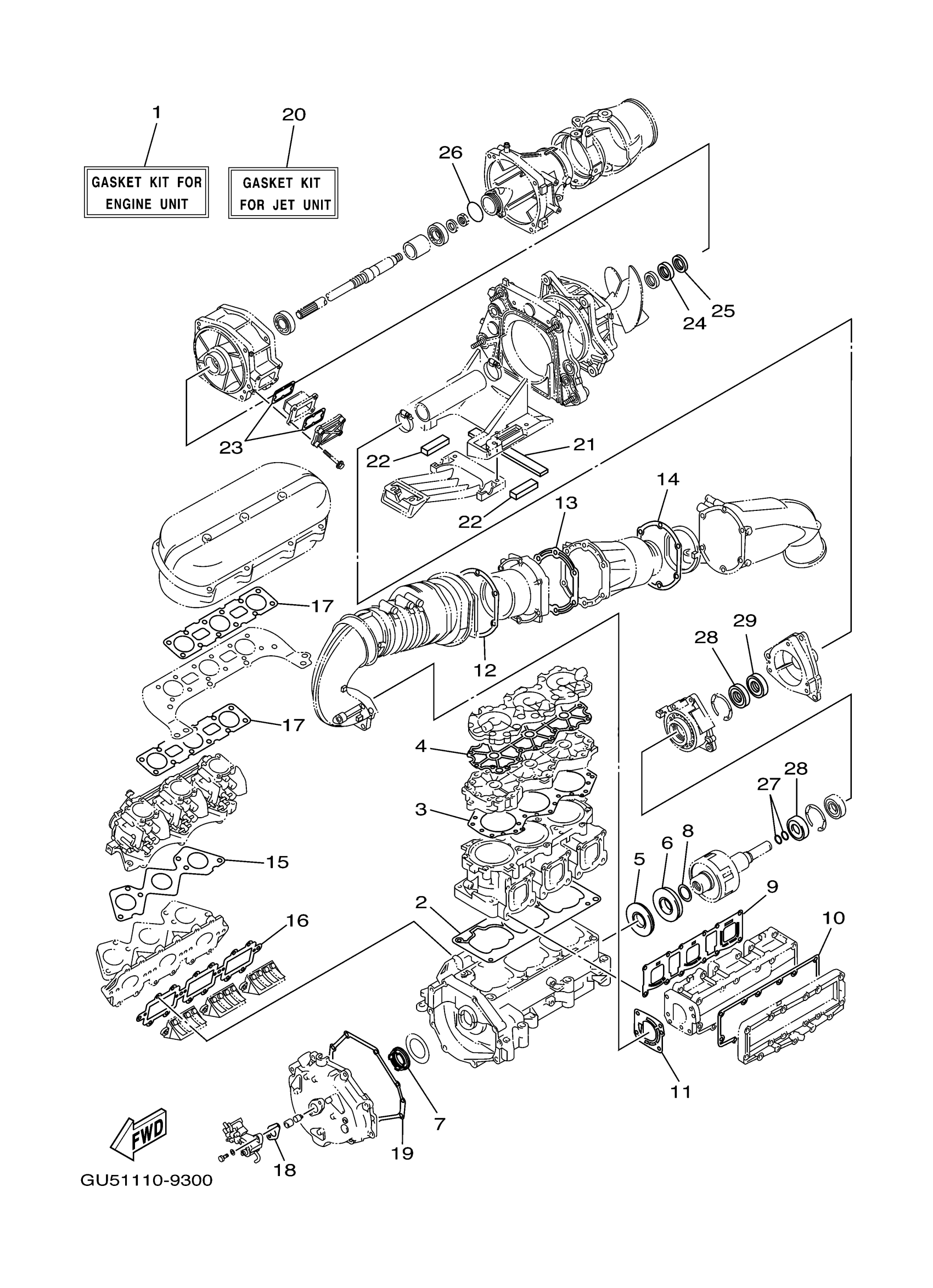

Yamaha SV1200A (SUV1200) GU54 2002 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT ENGINE UNIT

65U-W0001-00-00

$446.95

2

GASKET, CYLINDER

63M-11351-01-00

$31.57

3

GASKET, CYLINDER HEAD 1

65U-11181-01-00

$125.74

4

GASKET, HEAD COVER 1

63M-11193-01-00

$53.99

5

. OIL SEAL

93102-36M33-00

$15.55

6

. OIL SEAL

93101-36M46-00

$17.41

7

. OIL SEAL

93103-32M01-00

$14.81

8

SEAL

62T-45127-01-00

Unavailable

9

GASKET, EXHAUST PIPE

65U-14613-01-00

$72.71

10

GASKET, MUFFLER DAMPER 1

63M-14739-00-00

$60.49

11

GASKET, MUFFLER DAMPER 2

63M-14749-01-00

$30.37

12

GASKET, EXHAUST OUTER COVER

63M-41114-00-00

$28.52

13

GASKET, EXHAUST INNER COVER

63M-41122-00-00

$31.11

14

GASKET, EXHAUST OUTER COVER

63M-41114-00-00

$28.52

15

GASKET

65U-13556-00-00

$49.49

16

GASKET

65U-13566-00-00

$12.59

17

GASKET, AIR COOLER COVER 1

65U-13674-00-00

$10.49

18

GASKET, PUMP CASE

63M-13116-00-00

$2.80

19

GASKET, HOLE COVER

63M-81365-00-00

$50.57

20

GASKET KIT FOR JET UNIT

66V-W0001-20-00

Unavailable

21

FELT, PACKING

66V-R1367-00-00

Unavailable

22

FELT, PACKING 2

66V-R1368-00-00

Unavailable

23

. O-RING

66V-42414-00-00

$5.18

24

OIL SEAL

93101-28M66-00

Unavailable

25

OIL SEAL

93101-28002-00

$13.40

26

. O-RING

93210-46M16-00

$7.15

27

O-RING

93210-19001-00

$3.49

28

OIL SEAL(62T)

93101-25M55-00

Unavailable

29

OIL SEAL

93101-24001-00

Unavailable
