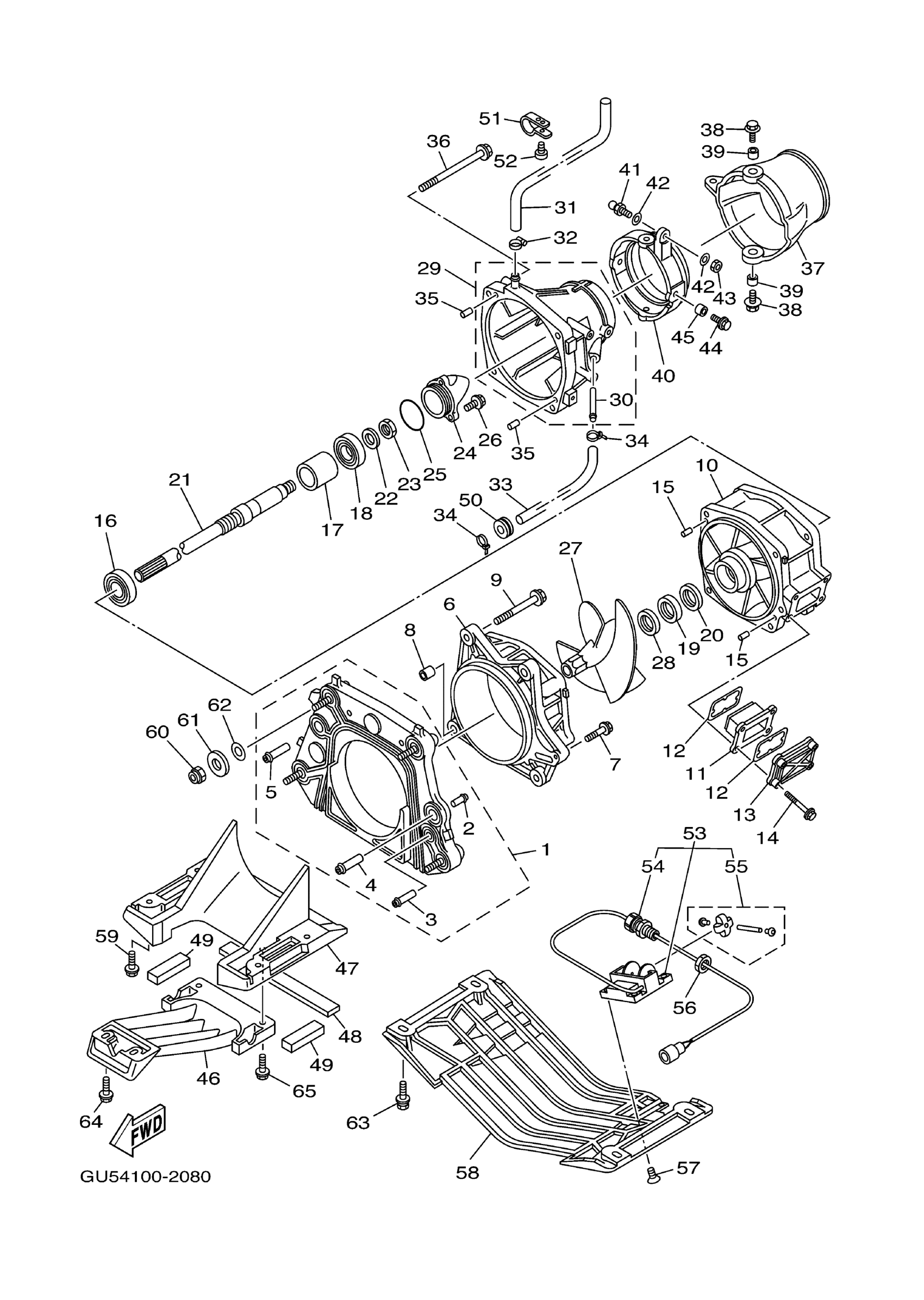

Yamaha SV1200A (SUV1200) GU54 2002 JET UNIT 1 Diagram

#

Description

Price

1

PLATE, TRANSOM

66G-G5831-03-00

Unavailable

2

. NIPPLE

65A-R1129-00-00

Unavailable

3

. NIPPLE

66G-51129-00-00

Unavailable

4

. NIPPLE

66V-51129-10-00

Unavailable

5

. NIPPLE

66G-51129-10-00

Unavailable

6

HOUSING, IMPELLER

6CR-R1312-00-00

Unavailable

7

BOLT, WITH WASHER

90119-06894-00

Unavailable

8

PIN, DOWEL(4JT)

99590-14016-00

$4.24

9

BOLT, WITH WASHER

90119-10811-00

Unavailable

10

DUCT, IMPELLER

66V-51315-01-00

Unavailable

11

FILTER

66V-46882-00-00

Unavailable

12

. O-RING

66V-42414-00-00

Unavailable

13

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

14

BOLT,WITH WASHER

90119-06898-00

Unavailable

15

PIN, DOWEL (614)

93606-12019-00

$4.24

16

BEARING (6K8)

93306-205U1-00

Unavailable

17

SPACER 1

65V-45538-00-00

Unavailable

18

BEARING

93306-304XB-00

Unavailable

19

OIL SEAL

93101-28M66-00

Unavailable

20

OIL SEAL

93101-28002-00

Unavailable

21

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

22

WASHER

9299R-16600-00

Unavailable

23

NUT

95317-16700-00

Unavailable

24

CAP KIT

65A-R1326-10-KT

Unavailable

25

. O-RING

93210-46M16-00

Unavailable

26

BOLT,WITH WASHER

90119-06890-00

Unavailable

27

IMPELLER

66G-R1321-00-00

Unavailable

28

SPACER

66V-R1348-10-00

Unavailable

29

NOZZLE

66V-51318-00-94

Unavailable

30

. NIPPLE,HOSE

63M-51334-00-00

Unavailable

31

HOSE (L450)

90445-16M08-00

Unavailable

32

BAND, HOSE 18

90601-118UF-00

Unavailable

33

HOSE (L380)

90445-14M25-00

Unavailable

34

CLAMP

90465-10098-00

Unavailable

35

PIN, DOWEL (614)

93606-12019-00

$4.24

36

BOLT, WITH WASHER

90119-10807-00

Unavailable

37

NOZZLE, DEFLECTOR

66V-R1313-01-00

Unavailable

38

BOLT, WITH WASHER

90119-08852-00

Unavailable

39

COLLAR(6R7)

90387-08M06-00

Unavailable

40

RING, TRIM

66G-51190-00-94

Unavailable

41

STUD, JOINT BALL

GH3-U146E-00-00

Unavailable

42

WASHER,PLATE

90201-068M4-00

Unavailable

43

NUT

9538R-06700-00

Unavailable

44

BOLT, WITH WASHER

90119-08852-00

Unavailable

45

COLLAR(6R7)

90387-08M06-00

Unavailable

46

SCREEN, INTAKE

66V-51333-00-94

Unavailable

47

DUCT, INTAKE

66V-51311-00-94

Unavailable

48

FELT, PACKING

66V-R1367-00-00

Unavailable

49

FELT, PACKING 2

66V-R1368-00-00

Unavailable

50

GROMMET

90480-279U1-00

Unavailable

51

CLIP, NYLON 18

90600-918U3-00

Unavailable

52

SCREW, TAPPING

97780-50620-00

Unavailable

53

SENSOR SPEED

GJ1-U8K31-03-00

Unavailable

54

CONNECTOR, CABLE

EU0-67267-00-00

Unavailable

55

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

Unavailable

56

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

57

SCREW, FLAT HEAD

9878R-05512-00

Unavailable

58

PLATE 2

F0D-U273B-00-00

Unavailable

59

BOLT, WITH WASHER

90119-08829-00

Unavailable

60

NUT, NYLON

9572R-10300-00

Unavailable

61

WASHER, PLATE

90201-10940-00

Unavailable

62

SHIM

GU5-67354-00-00

Unavailable

63

BOLT, WITH WASHER

90119-08829-00

Unavailable

64

BOLT, WITH WASHER

90119-06896-00

Unavailable

65

BOLT, WITH WASHER

90119-069UC-00

Unavailable
