2002 Yamaha SUV1200 (SV1200A) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2002 Yamaha SUV1200 (SV1200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

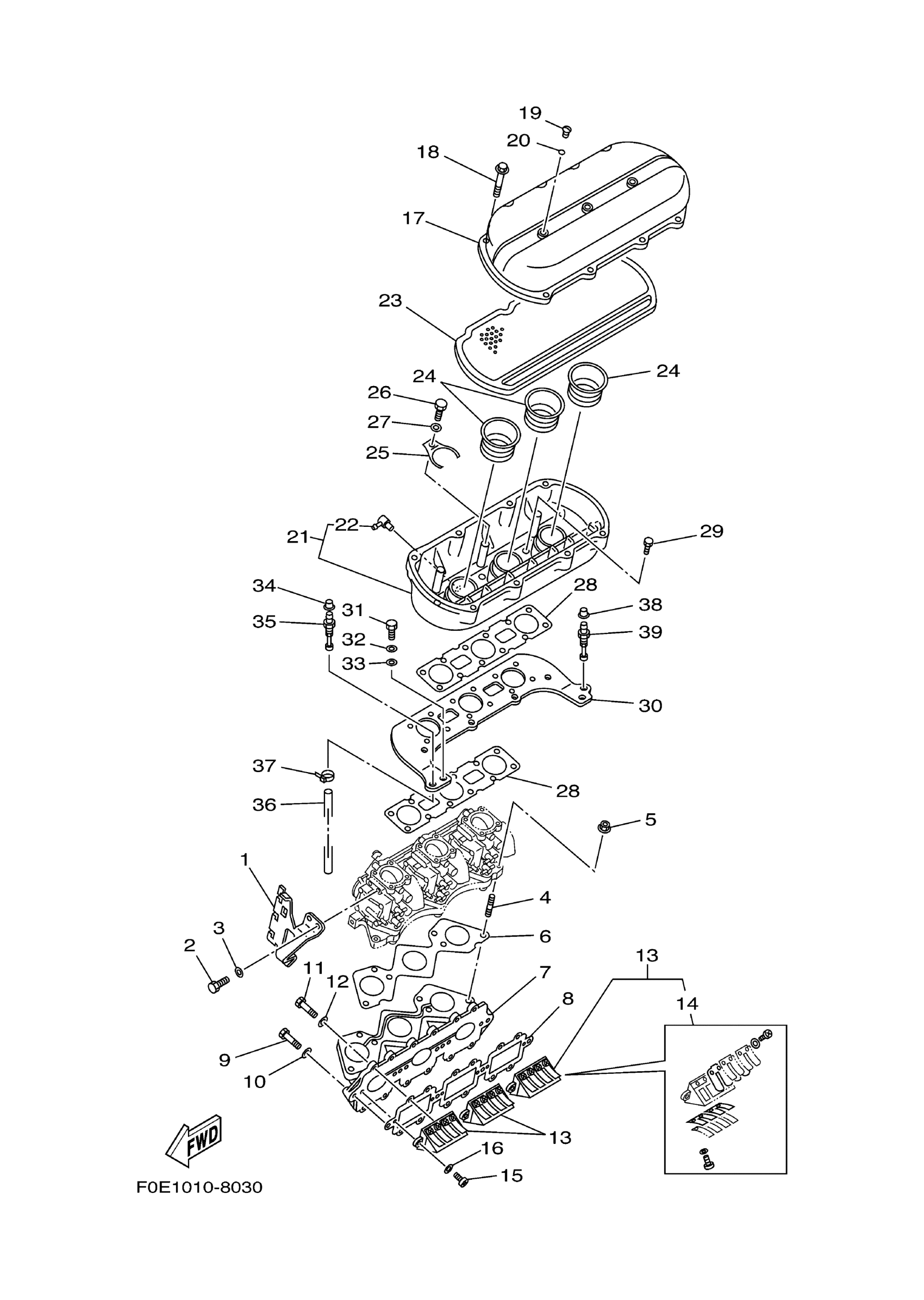

2002 Yamaha SUV1200 (SV1200A) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE

65U-14527-01-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

4

BOLT, STUD

90116-08M60-00

1

$4.62

In stock

5

NUT

90179-08M15-00

1

$8.99

In stock

6

GASKET

65U-13556-00-00

1

$49.49

In stock

7

MANIFOLD, INTAKE

65U-13555-00-8S

1

$366.99

In stock

8

GASKET

65U-13566-00-00

1

$16.99

In stock

9

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

BOLT(62Y)

97013-06025-00

1

$1.37

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

REED VALVE ASSY

65U-13610-00-00

1
Out of stock

14

. REED SET

65U-W0004-00-00

1
Out of stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

16

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

17

COVER, CARBURETOR 1

65U-14283-00-00

1
Out of stock

18

BOLT

90109-05MA0-00

—

$12.99

In stock

19

GROMMET

62T-14435-00-00

1

$3.95

In stock

20

. O-RING

93210-13M63-00

1

$3.84

In stock

21

COVER, CARBURETOR 2

65U-14284-02-8S

1
Out of stock

22

NOZZLE

6E5-13552-01-00

1

$6.46

In stock

23

ELEMENT, AIR CLEANER

65U-14451-00-00

1
Out of stock

24

FUNNEL, AIR

65U-14469-00-00

1
Out of stock

25

PLATE

65U-14477-00-00

1

$6.46

In stock

26

BOLT (682)

97095-05010-00

—

$1.66

In stock

27

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

28

GASKET, AIR COOLER COVER 1

65U-13674-00-00

1

$8.31

In stock

29

BOLT

90109-06M76-00

1

$2.77

In stock

30

PLATE

65U-14255-00-00

1
Out of stock

31

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1

$1.35

In stock

32

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

33

WASHER, PLATE

90201-06M31-00

1

$2.92

In stock

34

CAP, GREASE NIPPLE

663-45119-01-00

—

$1.86

In stock

35

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock

36

HOSE (L445)

90445-09M21-00

—

$22.46

In stock

37

CLAMP

90465-10098-00

1

$2.24

In stock

38

CAP, GREASE NIPPLE

663-45119-01-00

—

$1.86

In stock

39

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock
