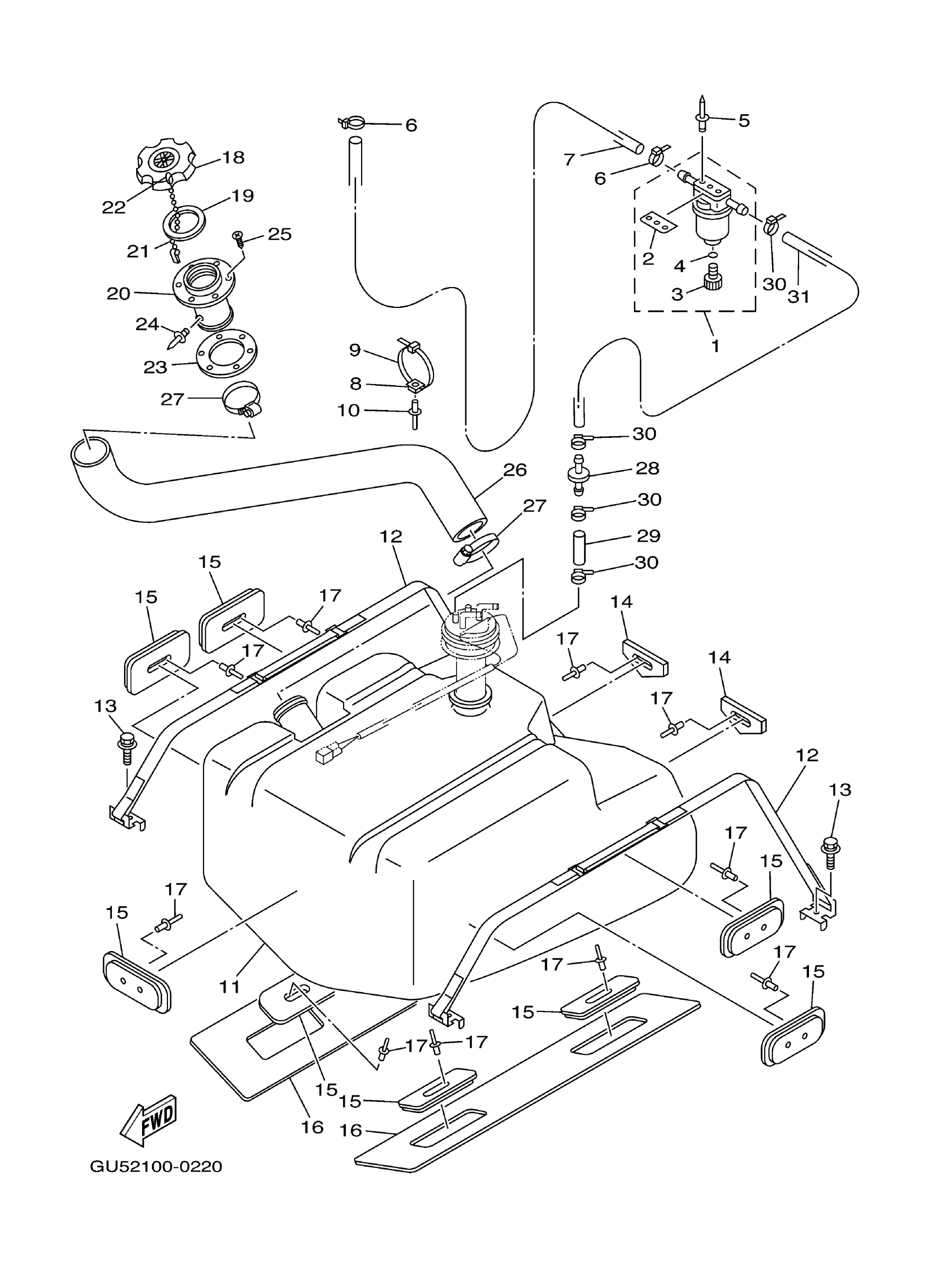

Yamaha SV1200A (SUV1200) GU54 2002 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

2

. PLATE, FILTER

EW2-62142-00-00

$44.99

3

. PLUG, DRAIN

70R-24543-00-00

$9.08

4

. O-RING

70R-24489-00-00

$5.00

5

RIVET, BLIND

90267-489U2-00

$1.43

6

CLAMP

90465-10098-00

$1.68

7

HOSE, AIR VENT

GP7-U785G-10-00

$8.32

8

CLAMP COMP (EU0)

90600-91736-00

$6.22

9

RIVET, BLIND

90267-48802-00

$1.98

10

CLAMP

90464-32801-00

$1.23

11

TANK, FUEL

GU5-U7711-00-00

Unavailable

12

BELT, TANK 1

GH3-67743-01-00

$112.11

13

BOLT, WITH WASHER

90119-08826-00

$4.62

14

MAT 1

GU5-U759B-00-00

Unavailable

15

MAT 2

GU5-U759C-00-00

Unavailable

16

MAT 3

GU5-U759D-00-00

Unavailable

17

RIVET, BLIND

90267-489UK-00

Unavailable

18

CAP, FUEL FILLER (YAMAHA BLACK)

FN8-67831-01-00

$50.42

19

PACKING 1

EU0-67832-00-00

$7.40

20

SOCKET

FN8-67833-00-00

Unavailable

21

. CHAIN BALL

EU0-67835-00-00

$5.18

22

COUPLING

EU0-67839-00-00

$6.36

23

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

24

. RIVET, BLIND

90267-40935-00

$1.28

25

SCREW, FLAT HEAD TAPPING

FX1-67869-00-00

$1.36

26

HOSE

GU5-U7844-00-00

Unavailable

27

BAND, HOSE 55

90601-155U4-00

$5.87

28

CHECK VALVE

EU0-67767-31-00

$20.93

29

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

30

CLAMP

90465-10098-00

$1.68

31

HOSE, AIR VENT 3

GJ3-U7856-10-00

Unavailable
