2002 Yamaha SUV1200 (SV1200A) Important Labels Diagram

← All diagrams

Find the part on the Important Labels diagram for your 2002 Yamaha SUV1200 (SV1200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

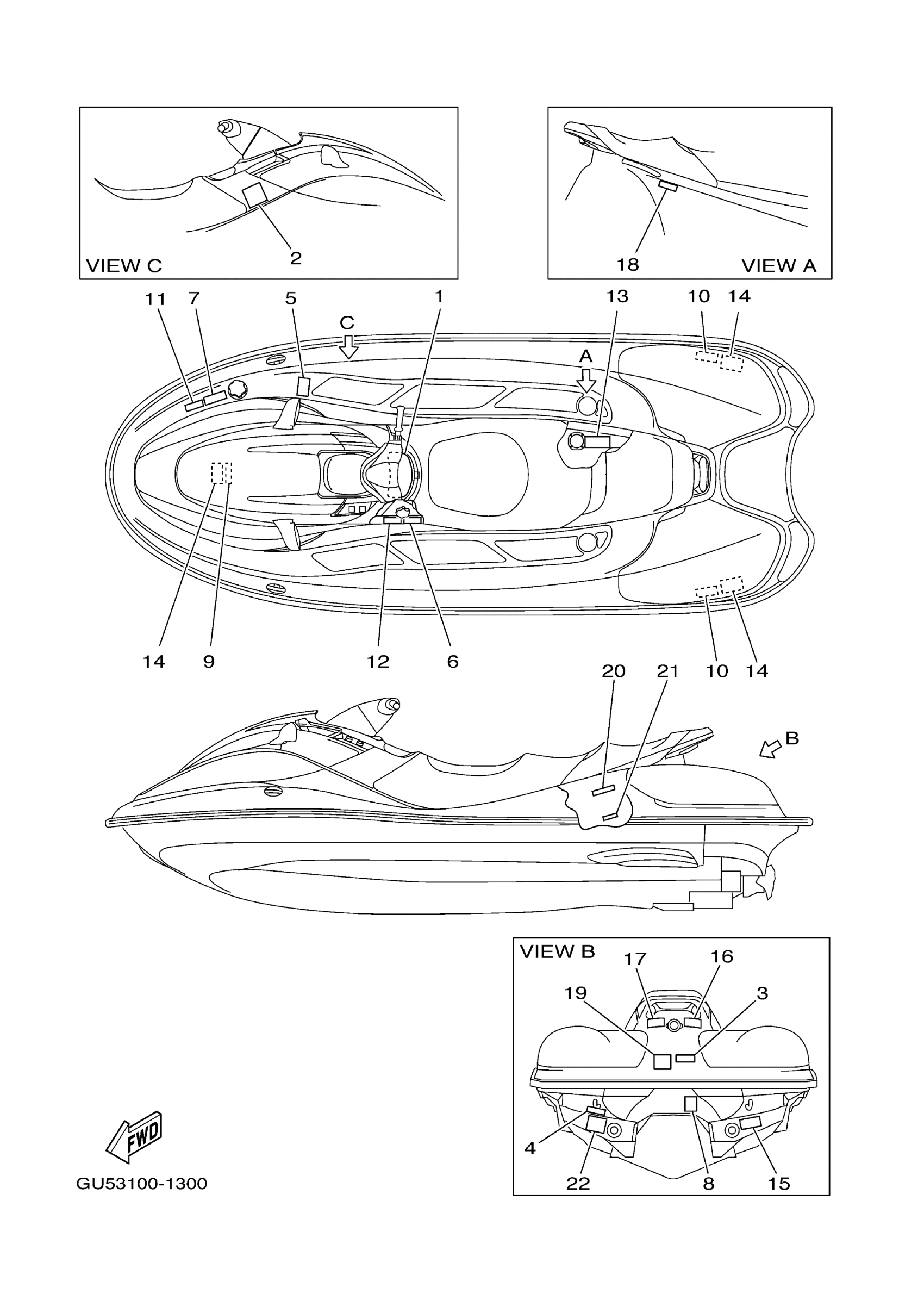

2002 Yamaha SUV1200 (SV1200A) Important Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL, WARNING JDC 1

GU5-U41B1-01-00

1
Out of stock

2

LABEL, WARNING JDC 2

GU5-U41B2-00-00

1
Out of stock

3

LABEL, WARNING BODY CAVITIES

F0P-U41D1-00-00

1
Out of stock

4

LABEL, WARNING UPRIGHTING

GU5-U41D3-00-00

1
Out of stock

5

LABEL, WARNING SHIFT LEVER

F0P-U41D5-00-00

1
Out of stock

6

LABEL, WARNING OIL TANK

F0P-U41D7-00-00

1
Out of stock

7

LABEL, WARNING(FUEL)

F0P-U415B-00-00

1
Out of stock

8

LABEL, WARNING (REVERSE)

F0P-U416R-00-00

1
Out of stock

9

LABEL, WARNING COMPARTMENT 1

GU5-U416T-00-00

1
Out of stock

10

LABEL, WARNING COMPARTMENT 2

GU5-U416U-00-00

1
Out of stock

11

LABEL, WARNING VENTILATION

GU5-U418R-00-00

1
Out of stock

12

LABEL, CAUTION OIL

F0P-U41F3-00-00

1
Out of stock

13

LABEL, CAUTION

F0P-U418B-00-00

1
Out of stock

14

LABEL, CAUTION

GU5-U418G-00-00

1
Out of stock

15

LABEL, CAUTION

F0P-U418G-00-00

1
Out of stock

16

LABEL, CAUTION (CLEAT)

F0P-U418H-00-00

1
Out of stock

17

LABEL, CAUTION (HANDGRIP)

F0P-U418L-00-00

1
Out of stock

18

LABEL, CAUTION SIDE HAND GRIPS

GU5-U418M-00-00

1
Out of stock

19

LABEL, AFTER OPERATION

F0P-U41F1-00-00

1
Out of stock

20

LABEL, FIRE EXTINGUISHER 2

F0M-U41F6-00-00

1
Out of stock

21

LABEL, CAPACITY

GU5-U41G1-00-00

1
Out of stock

22

LABEL 1

GU5-U419B-00-00

1
Out of stock
