2002 Yamaha SUV1200 (SV1200A) Hull. Deck Diagram

← All diagrams

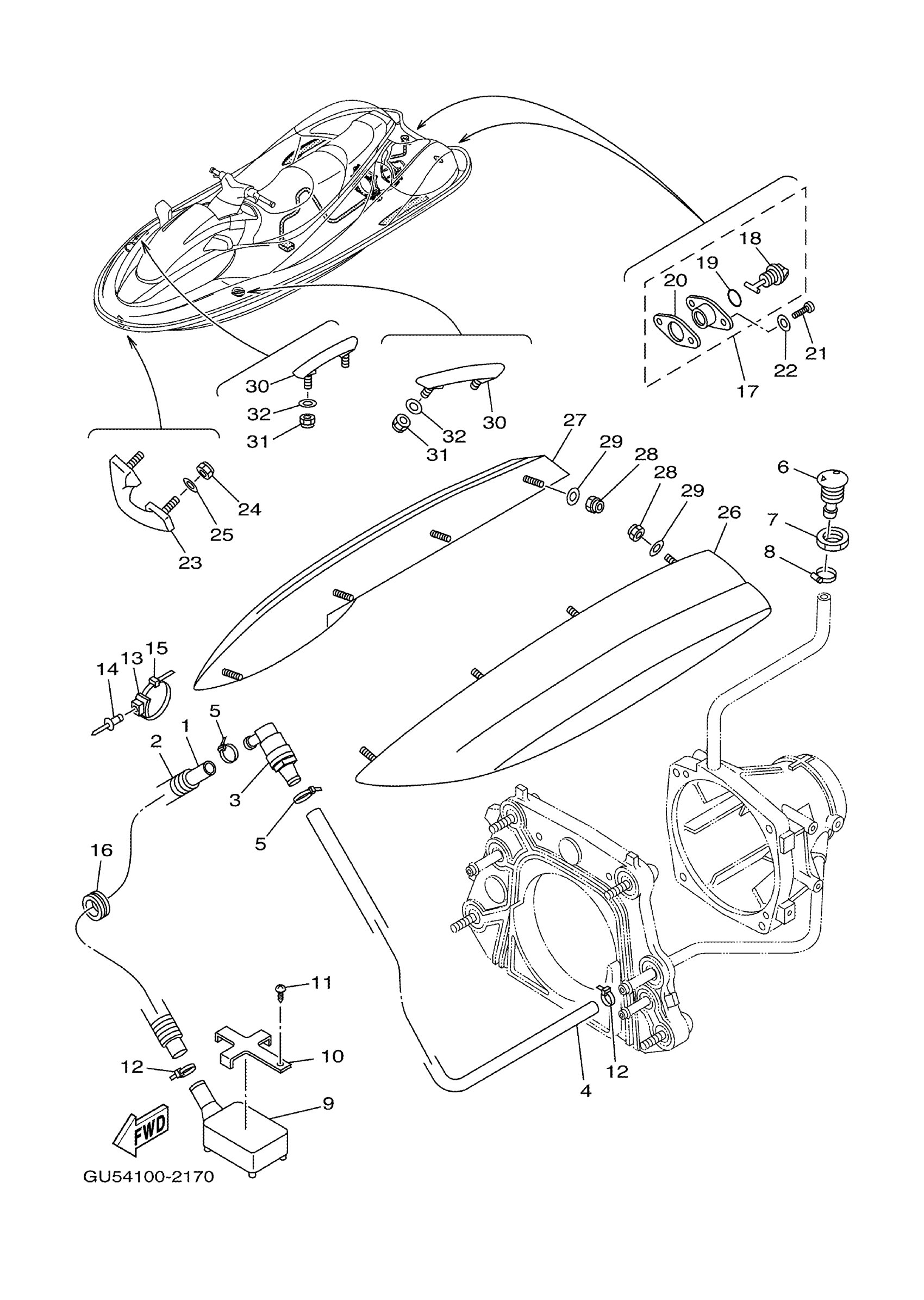

Find the part on the Hull. Deck diagram for your 2002 Yamaha SUV1200 (SV1200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha SUV1200 (SV1200A) Hull. Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE

90445-19M01-00

1
Out of stock

2

HOSE (L650)

90446-27MA4-00

1
Out of stock

3

JOINT, HOSE

68N-5112T-00-00

1
Out of stock

4

HOSE

90445-19M01-00

1
Out of stock

5

CLAMP (6E5)

90465-13M11-00

1
Out of stock

6

SPOUT

FN8-6269B-00-00

1
Out of stock

7

NUT

EU0-61652-00-00

1
Out of stock

8

CLIP

90600-91755-00

1
Out of stock

9

STRAINER, BILGE

GD0-U761D-00-00

1
Out of stock

10

BASE

FJ0-67618-00-00

1
Out of stock

11

SCREW, TAPPING

9778R-50112-00

1
Out of stock

12

BAND

90601-200U1-00

1
Out of stock

13

CLAMP COMP (EU0)

90600-91736-00

1
Out of stock

14

RIVET, BLIND

90267-489UE-00

1
Out of stock

15

CLAMP

90464-32801-00

1
Out of stock

16

GROMMET

90480-329U2-00

1
Out of stock

17

DRAIN PLUG ASSY

EU0-62280-00-00

1
Out of stock

18

. PLUG, DRAIN

EU0-62282-00-00

1
Out of stock

19

. O-RING

EU0-62283-00-00

1
Out of stock

20

. PACKING DRAIN (EU0)

EU0-62285-01-00

1
Out of stock

21

SCREW, TAPPING

97780-50620-00

1
Out of stock

22

WASHER

9299R-05200-00

1
Out of stock

23

BOW EYE 1

GU5-61624-00-00

1
Out of stock

24

NUT, NYLON (6J8)

95780-08300-00

1
Out of stock

25

WASHER, PLATE

90201-08800-00

1
Out of stock

26

STABILIZER LH

GU5-6883N-00-00

1
Out of stock

27

STABILIZER RH

GU5-6883P-00-00

1
Out of stock

28

NUT, NYLON

9572R-06300-00

1
Out of stock

29

WASHER, PLATE

90201-06808-00

1
Out of stock

30

DECK EYE

GU5-61685-01-00

1
Out of stock

31

NUT, NYLON (6J8)

95780-08300-00

1
Out of stock

32

WASHER

9299R-08200-00

—
Out of stock
