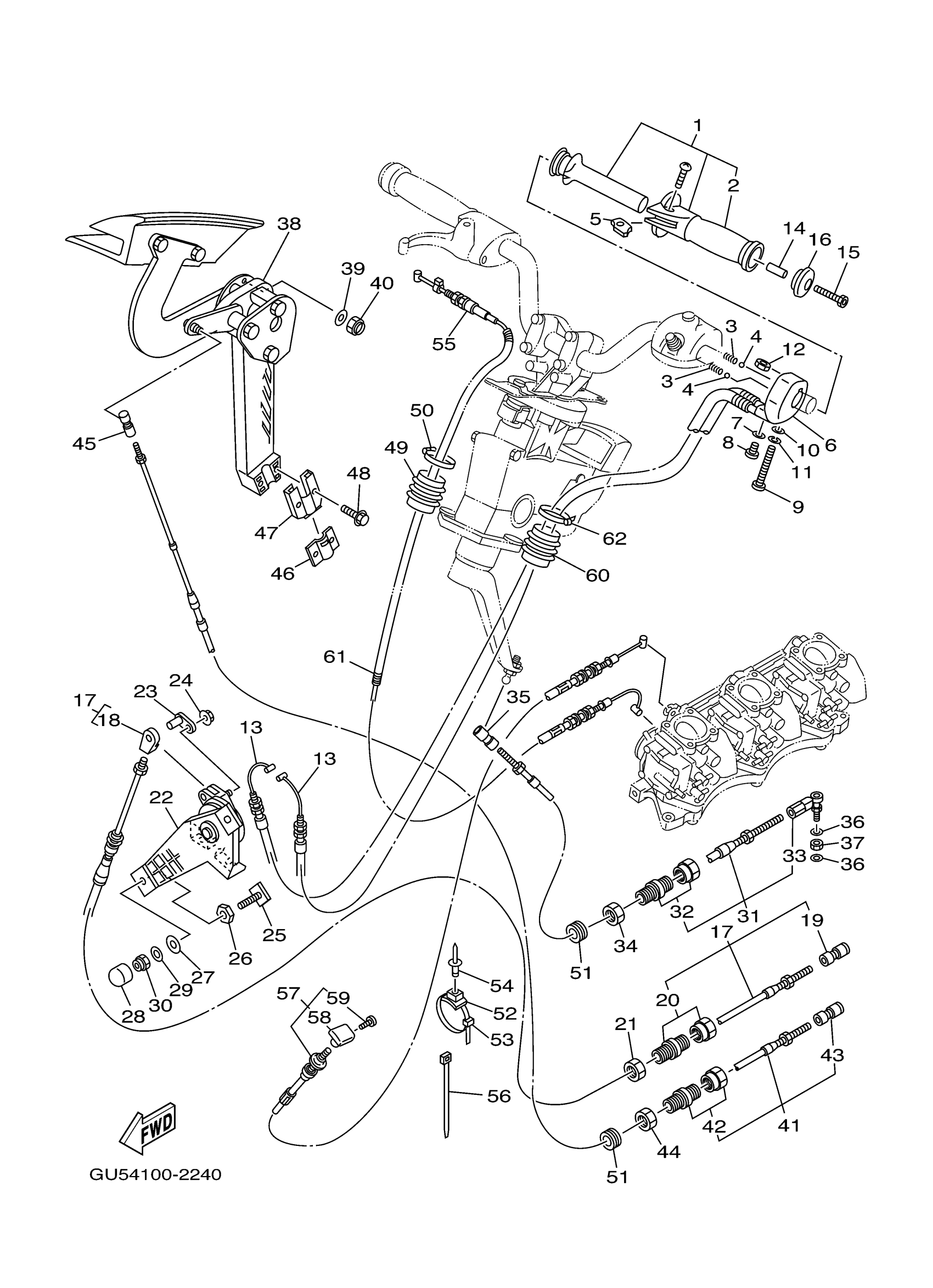

Yamaha SV1200A (SUV1200) GU54 2002 CONTROL CABLE Diagram

#

Description
Price

1

GRIP, HANDLE ASSY.

GP7-U157A-00-00

Unavailable

2

. GRIP, HANDLE

GP7-U155C-00-00

Unavailable

3

SPRING

GP7-U152P-00-00

Unavailable

4

BALL

GP7-U152R-00-00

Unavailable

5

LEVER ASSY

GP7-U151M-00-00

Unavailable

6

HOUSING ASSY

GP7-U152M-00-00

Unavailable

7

WASHER, PLAIN (646)

92990-04600-00

$5.99

8

SCREW, BINDING (M01)

98980-04010-00

$6.99

9

SCREW PAN HEAD

98580-06565-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

WASHER

9299R-06100-00

Unavailable

12

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

13

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

Unavailable

14

COLLAR

90387-05800-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

Unavailable

16

GRIP, END

GP7-U155F-00-00

Unavailable

17

CABLE,NOZZLE CONTROL 3

GU5-6153E-09-00

Unavailable

18

. END, CABLE

GH1-U046C-00-00

Unavailable

19

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

20

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

21

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

22

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

23

PIN

F0D-U152C-10-00

Unavailable

24

NUT, NYLON

9572R-06300-00

Unavailable

25

BOLT

90109-06907-00

Unavailable

26

NUT

90179-06977-00

Unavailable

27

WASHER, PLATE

90201-06906-00

Unavailable

28

CLING

90190-06902-00

Unavailable

29

WASHER

9299R-06200-00

Unavailable

30

NUT, NYLON

9572R-06300-00

Unavailable

31

CABLE, STEERING

F1D-61481-02-00

Unavailable

32

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

33

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

34

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

35

SHAFT,JOINT BALL

GK5-U146F-00-00

Unavailable

36

WASHER, PLATE

90201-06906-00

Unavailable

37

NUT

9538R-06700-00

Unavailable

38

REMO CON. LEVER ASSY.

F0D-6134A-04-00

Unavailable

39

WASHER

9299R-06200-00

Unavailable

40

NUT, NYLON

9572R-06300-00

Unavailable

41

CABLE, REVERSE

GU5-U149C-00-00

Unavailable

42

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

43

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

44

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

45

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

46

STOPPER, CABLE

GH1-61468-01-00

Unavailable

47

HOLDER, STOPPER

GU5-6146K-10-00

Unavailable

48

BOLT, WITH WASHER

90119-069UJ-00

Unavailable

49

GROMMET

GU5-6822E-00-00

Unavailable

50

BAND

90601-200U1-00

Unavailable

51

GROMMET

90480-279U1-00

Unavailable

52

CLAMP COMP (EU0)

90600-91736-00

Unavailable

53

CLAMP

90464-32801-00

Unavailable

54

RIVET, BLIND

90267-48802-00

Unavailable

55

CABLE, THROTTLE

F1D-67252-00-00

Unavailable

56

CLAMP

90464-32801-00

Unavailable

57

CABLE, CHOKE

GU5-67242-01-00

Unavailable

58

. KNOB

EW2-67243-00-00

Unavailable

59

. SCREW

90149-03930-00

Unavailable

60

GROMMET

GU5-6822E-00-00

Unavailable

61

TUBE, 2

F0D-6773E-00-00

Unavailable

62

BAND

90601-200U1-00

Unavailable
