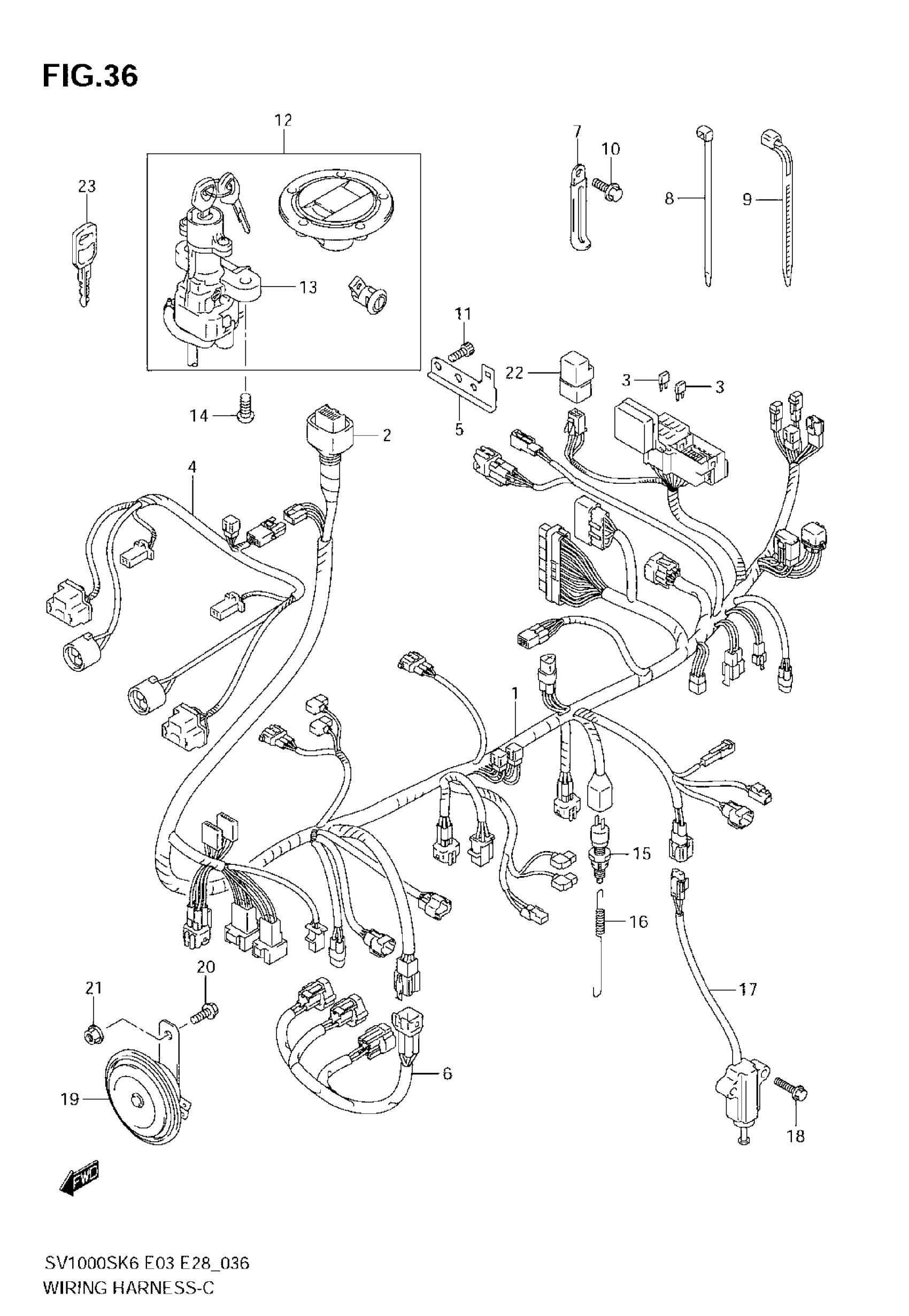

Suzuki SV1000 (2007) WIRING HARNESS (SV1000S) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | Includes Item(s) 2 - 3

36610-16GM0

Unavailable

2

CAP

36618-33E00

$9.90

3

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

HARNESS,WIRING This part replaces 36620-16G10.

36620-16G11

$179.25

5

HOLDER, COUPLER

36687-16G00

Unavailable

6

WIRE, INJECTOR LEAD

36859-16G00

Unavailable

7

CLAMP (L:45)

09404-06429

$1.82

8

CLAMP (L:145)

09407-14407

$2.80

9

CLAMP (L:95)

09407-11401

$2.87

9

CLAMP (L:165)

09407-18402

$2.21

10

BOLT

01550-0612B

$2.38

11

BOLT

07130-0610B

$1.23

12

LOCK SET This part replaces 37000-16840.

37000-16844

$425.42

12

LOCK SET | E33; Includes Item(s) 13 This part replaces 37000-16850.

37000-16852

$429.22

13

LOCK ASSY,STEER This part replaces 37100-16G00.

37100-16G02

$210.22

14

SCREW (8X20)

09139-08016

$3.04

15

SWITCH ASSY, STOP LAMP

37740-45D00

$20.62

16

SPRING, STOP LAMP

09443-06016

$3.58

17

SWITCH ASSY,SID This part replaces 37840-16G00.

37840-16G01

$99.15

18

BOLT

01550-06257

$2.31

19

HORN ASSY This part replaces 38500-16G00.

38500-16G01

$98.98

20

BOLT

01550-0812B

$2.73

21

NUT

08316-1008B

$2.65

22

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

23

KEY, BLANK | OPT

37146-33E00

$19.42
