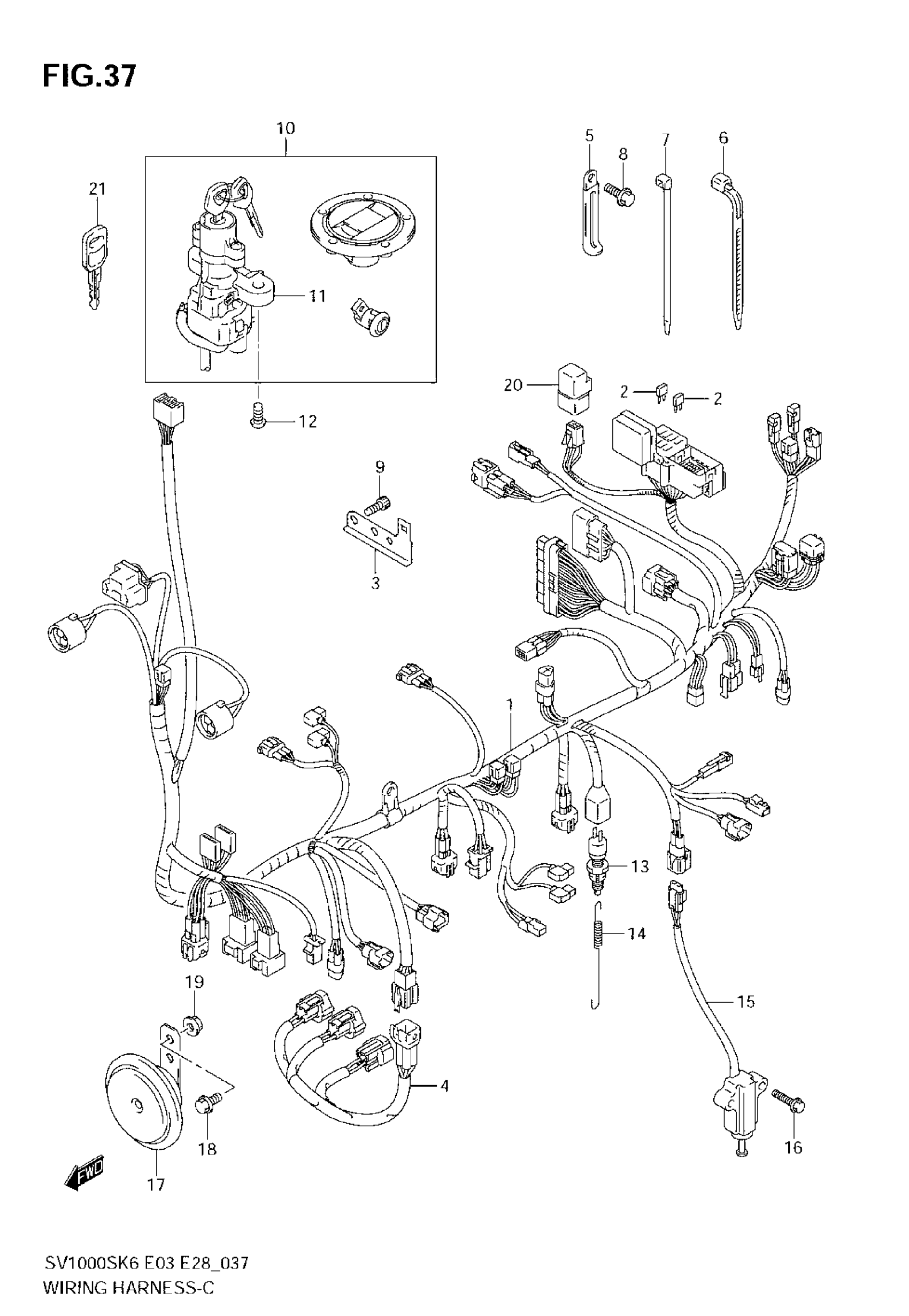

Suzuki SV1000 (2007) WIRING HARNESS (SV1000) (NOT FOR US MARKET) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | Includes Item(s) 2 - 2

36610-16GJ0

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

HOLDER, COUPLER

36687-16G00

Unavailable

4

WIRE, INJECTOR LEAD

36859-16G00

Unavailable

5

CLAMP (L:45)

09404-06429

$1.83

5

CLAMP This part replaces 09404-08207.

09404-08212

$1.50

6

CLAMP (L:95)

09407-11401

$2.63

6

CLAMP (L:165)

09407-18402

$2.19

7

CLAMP (L:145)

09407-14407

$3.57

8

BOLT

01550-0612B

$2.39

9

BOLT

07130-0610B

$3.21

10

LOCK SET | Includes Item(s) 11 This part replaces 37000-16850.

37000-16852

$409.95

11

LOCK ASSY,STEER This part replaces 37100-16G00.

37100-16G02

$188.90

12

SCREW (8X20)

09139-08016

$3.37

13

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

14

SPRING, STOP LAMP

09443-06016

$3.30

15

SWITCH ASSY,SID This part replaces 37840-16G00.

37840-16G01

$88.27

16

BOLT

01550-06257

$2.30

17

HORN ASSY This part replaces 38500-16G00.

38500-16G01

$87.70

18

BOLT

01550-0812B

$2.73

19

NUT

08316-1008B

$2.66

20

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

21

KEY, BLANK | OPT

37146-33E00

$21.21
