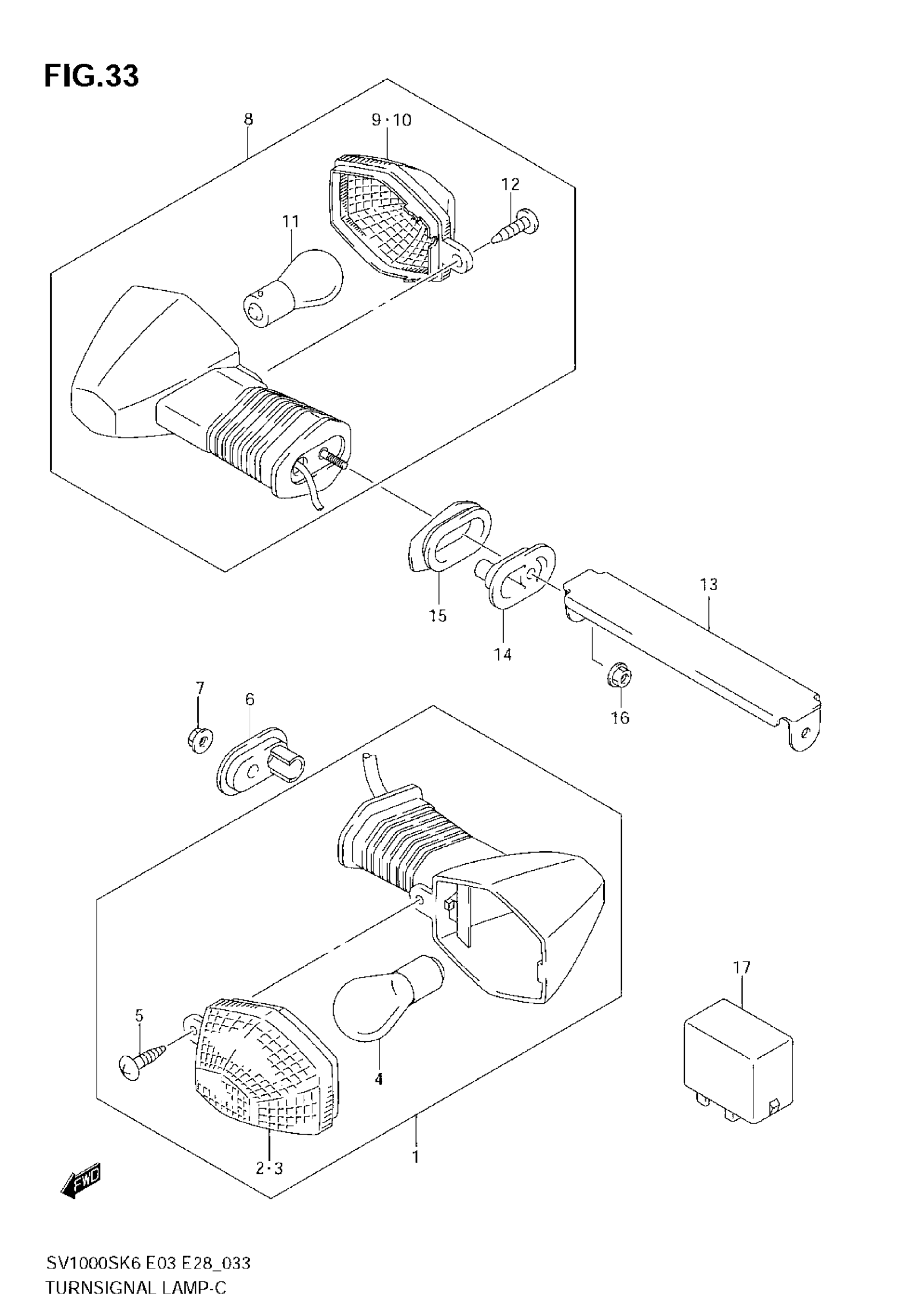

Suzuki SV1000 (2007) TURNSIGNAL LAMP (SV1000S) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN, RH

35601-16G10

$94.43

1

LAMP ASSY, FRONT TURN, LH | Includes Item(s) 2 - 5

35602-16G10

$67.29

2

LENS, RH

35612-31F30

$15.68

3

LENS, LH

35632-31F30

$16.23

4

BULB (12V,21W)

09471-12045

$2.95

5

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

6

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

7

NUT

08316-1005B

$2.50

8

LAMP ASSY, REAR TURN, RH

35603-16GC0

$106.53

8

LAMP ASSY, REAR TURN, LH | Includes Item(s) 9 - 12

35604-16GC0

$106.53

9

LENS, RH

35632-31F30

$16.23

10

LENS, LH

35612-31F30

$15.68

11

BULB (12V,21W)

09471-12045

$2.95

12

SCREW This part replaces 03242-04163.

03242-0416B

$3.18

13

BRACKET, REAR TURNSIGNAL

35620-16G00

$17.78

14

PLATE, REAR TURNSIGNAL

35629-16G00

$6.30

15

CUSHION, REAR

35647-16G00

$7.30

16

NUT

08316-1005B

$2.50

17

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
