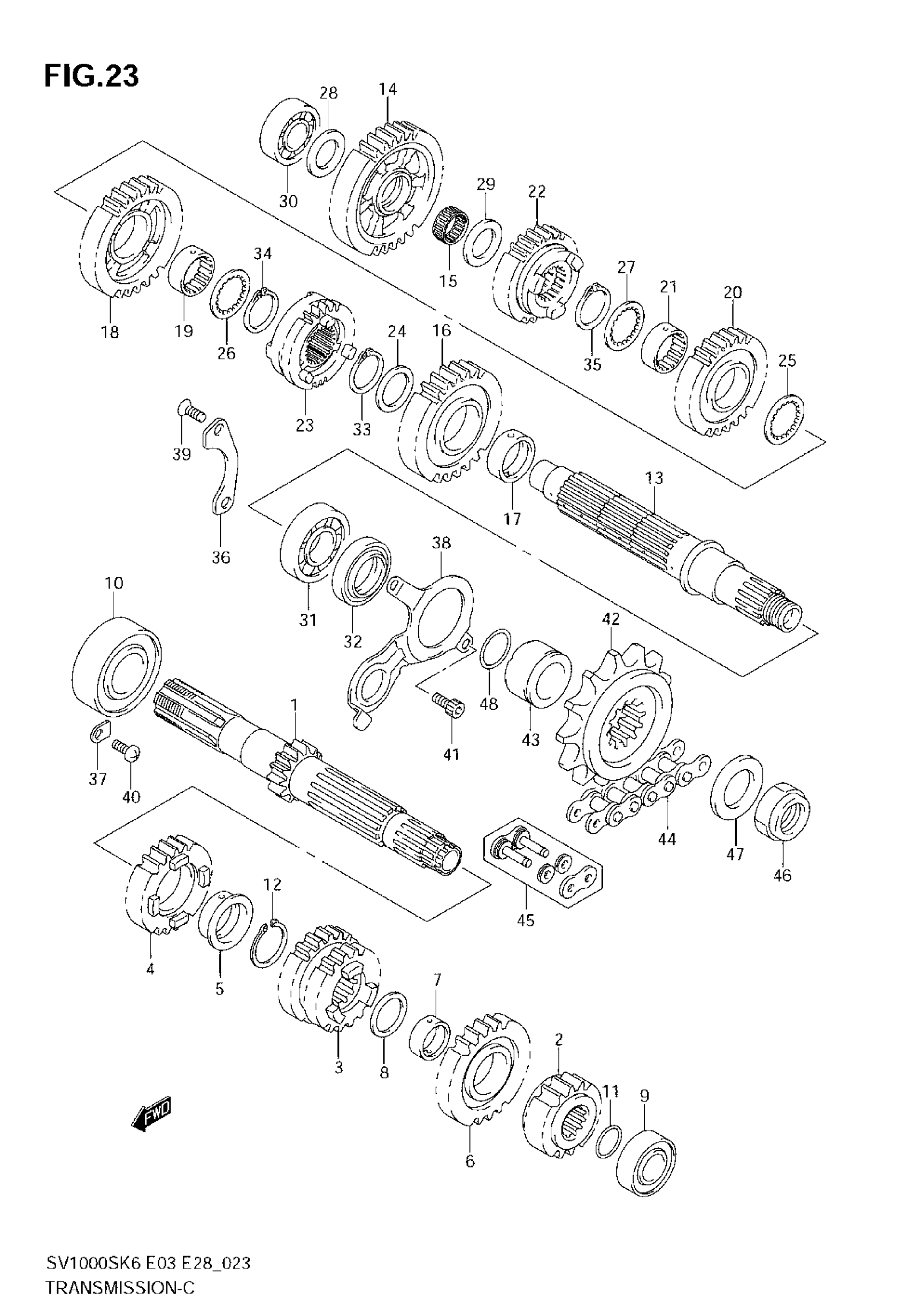

Suzuki SV1000 (2007) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:12)

24120-16G00

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-02F01

Unavailable

3

GEAR, 3RD & 4TH DRIVE | NT:18/22 This part replaces 24231-02F20.

24231-02F30

$150.50

4

GEAR, 5TH DRIVE (NT:23)

24251-02F11

$164.38

5

BUSH, 5TH DRIVE

24252-02F10

$38.95

6

GEAR,6TH DRIVE (NT:24)

24261-02F20

Unavailable

7

BUSH, 6TH DRIVE

24262-02F00

Unavailable

8

WASHER, 6TH DRIVE | 22X30X1.0

09181-22167

$2.96

9

BEARING, CENTER SHAFT LH | 20X47X14

09262-20139

$44.97

10

BEARING, CENTER SHAFT RH | 25X62X17

09262-25073

$25.92

11

O RING, CENTER SHAFT | D:1.9,ID:16.6

09280-17004

$3.67

12

CIRCLIP, 5TH DRIVE

09380-27001

$2.38

13

SHAFT, DRIVE

24130-02F10

Unavailable

14

GEAR,1ST DRIVEN NT:32 (NT:32)

24311-02F10

Unavailable

15

BEARING (22X26X11)

09263-22068

$6.25

16

GEAR, 2ND DRIVEN (NT:29)

24321-02F11

Unavailable

17

BUSH, 2ND DRIVEN

24322-02F01

$21.52

18

GEAR, 3RD DRIVEN (NT:27)

24331-02F12

Unavailable

19

BUSH, 3RD DRIVEN

24332-17E20

$39.02

20

GEAR,4TH DRIVEN This part replaces 24341-02F20.

24341-02F30

$123.80

21

BUSH, 4TH DRIVEN

24332-17E20

$39.02

22

GEAR,5TH DRIVEN (NT:25) This part replaces 24351-02F13.

24351-02F20

$123.53

23

GEAR,6TH DRIVEN (NT:24)

24361-02F30

Unavailable

24

WASHER, 2ND DRIVEN GEAR | 27X36X1

09160-27008

$3.68

25

WASHER, 3RD & 4TH DRIVEN | 27X36X2

09167-27002

Unavailable

26

WASHER, 3RD DRIVEN GEAR

24333-02F00

$4.99

27

WASHER, 4TH DRIVEN GEAR

24333-02F00

$4.99

28

WASHER, 1ST DRIVEN RH | 20X34X1

09181-20251

$2.79

29

WASHER, 1ST DRIVEN LH | 22X34X1

09181-22223

$3.12

30

BEARING, DRIVE SHAFT RH | 20X52X15

09262-20082

$30.63

31

BEARING, DRIVE SHAFT LH | 28X68X20

09262-28040

$113.32

32

SEAL, DRIVE SHAFT | 38X52X8

09283-38020

$29.00

33

CIRCLIP, 2ND DRIVEN

09380-27001

$2.38

34

CIRCLIP, 3RD DRIVEN

09380-27001

$2.38

35

CIRCLIP, 4TH DRIVEN

09380-27001

$2.38

36

RETAINER, DRIVE SHAFT BRG

24741-06G00

$8.05

37

RETAINER, CENTER SHAFT

24741-21A00

$2.81

38

RETAINER, DRIVE SHAFT OIL

24751-06G00

$12.28

39

SCREW, DRIVE SHAFT (6X12)

09126-06011

$2.03

40

SCREW, CENTER SHAFT

02112-0612B

$1.93

41

.BOLT

07130-0612B

$3.05

42

SPROCKET, ENGINE (NT:17)

27510-21A31

$97.15

43

SPACER, SPROCKET

27531-16G00

$40.22

44

CHAIN ASSY (RK50SM0Z1) | SV1000 NOT FOR US MARKET

27600-16G00-110

Unavailable

44

CHAIN ASSY (RK50SM0Z1) | SV1000S L:110!108

27600-16G00-110

Unavailable

45

JOINT SET, CHAIN | OPT

27620-16G00

$21.92

46

NUT

09159-20004

$15.67

47

WASHER (25X40X1.5)

09181-25268

$3.16

48

O RING (D:2.4,ID:23.7)

09280-24010

$5.64
