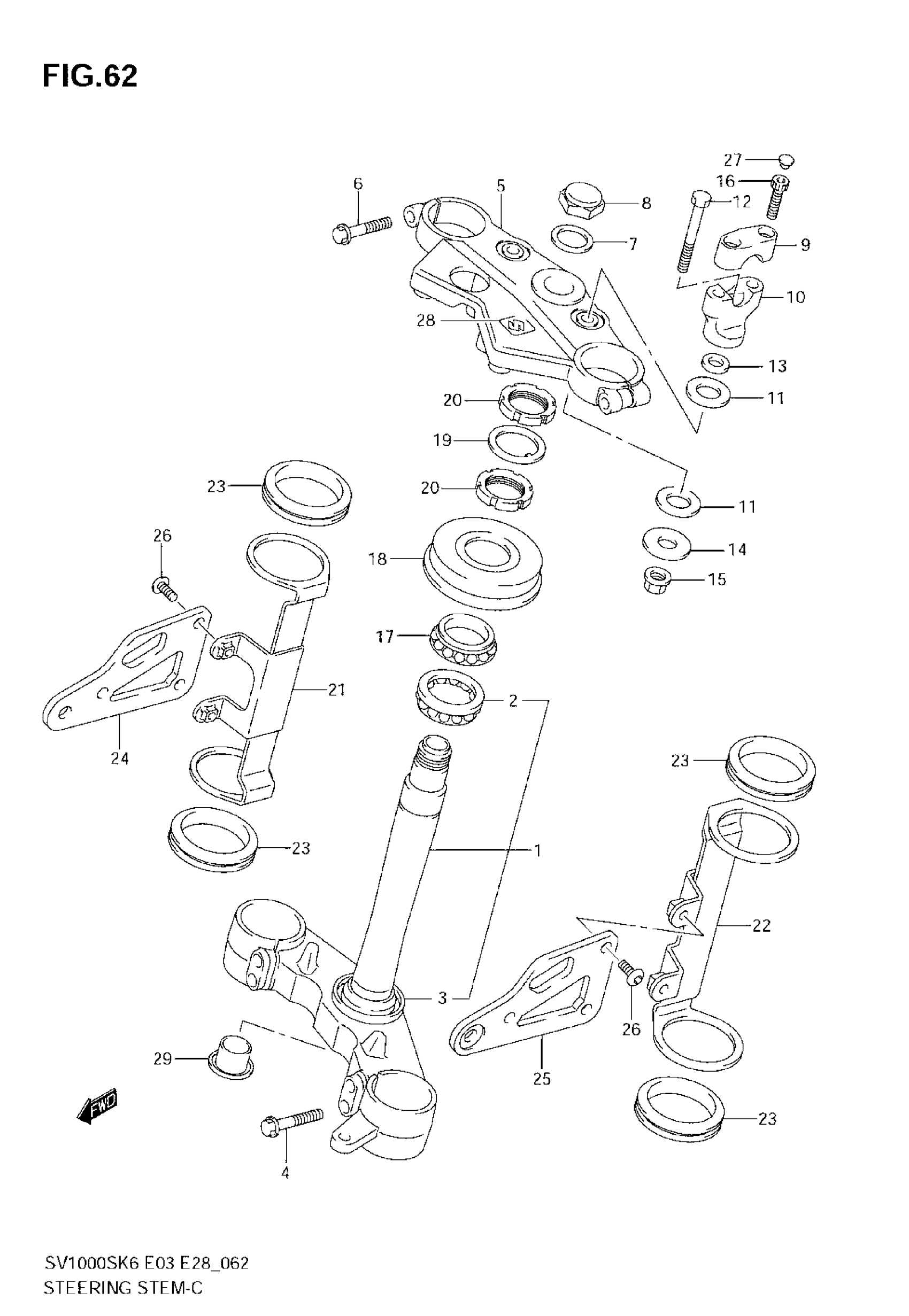

Suzuki SV1000 (2007) STEERING STEM (SV1000K6) NOT FOR US MARKET Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-16G00

Unavailable

2

BEARING (30X55X17)

09267-30010

$48.11

3

SEAL, STEM LOWER

51644-12C00

$9.44

4

BOLT

51328-40F30

$7.64

5

HEAD, STEERING STEM

51311-16G00

Unavailable

6

BOLT

51328-40F30

$7.64

7

WASHER

51356-27C00

$6.75

8

NUT

51353-16G00

$53.50

9

HOLDER, HANDLE

56211-26F20

Unavailable

10

HOLDER, HANDLE LOWER

56221-16G00

Unavailable

11

RUBBER, HANDLE HOLDER

56245-16G00

$7.05

12

BOLT

51226-16G00

Unavailable

13

WASHER

51354-42F00

$4.58

14

WASHER

51355-16G00

$5.77

15

NUT

08319-31107

$2.73

16

BOLT, HOLDER

51321-24B40

Unavailable

17

BEARING (30X55X17)

09267-30010

$48.11

18

SEAL, STEERING UPR DUST

51643-33E00

$16.01

19

WASHER, STEM

51641-33E00

$6.20

20

NUT, STEM

51631-33E00

$23.64

21

BRACKET, HEADLAMP HOUSING, R

51530-16G00

Unavailable

22

BRACKET, HEADLAMP HOUSING, L

51540-16G00

Unavailable

23

DAMPER,HEADLAMP This part replaces 51553-42F00.

51553-42F01

$7.13

24

STAY, HEADLAMP HOUSING, R

51851-16G20

Unavailable

25

STAY, HEADLAMP HOUSING, L

51861-16G20

Unavailable

26

BOLT

09139-06028

$3.70

27

CAP, HANDLE BAR BOLT

09250-06011

$2.50

28

EMBLEM, "S"

68281-35F00

$16.45

29

CAP

51482-26F00

$5.15
