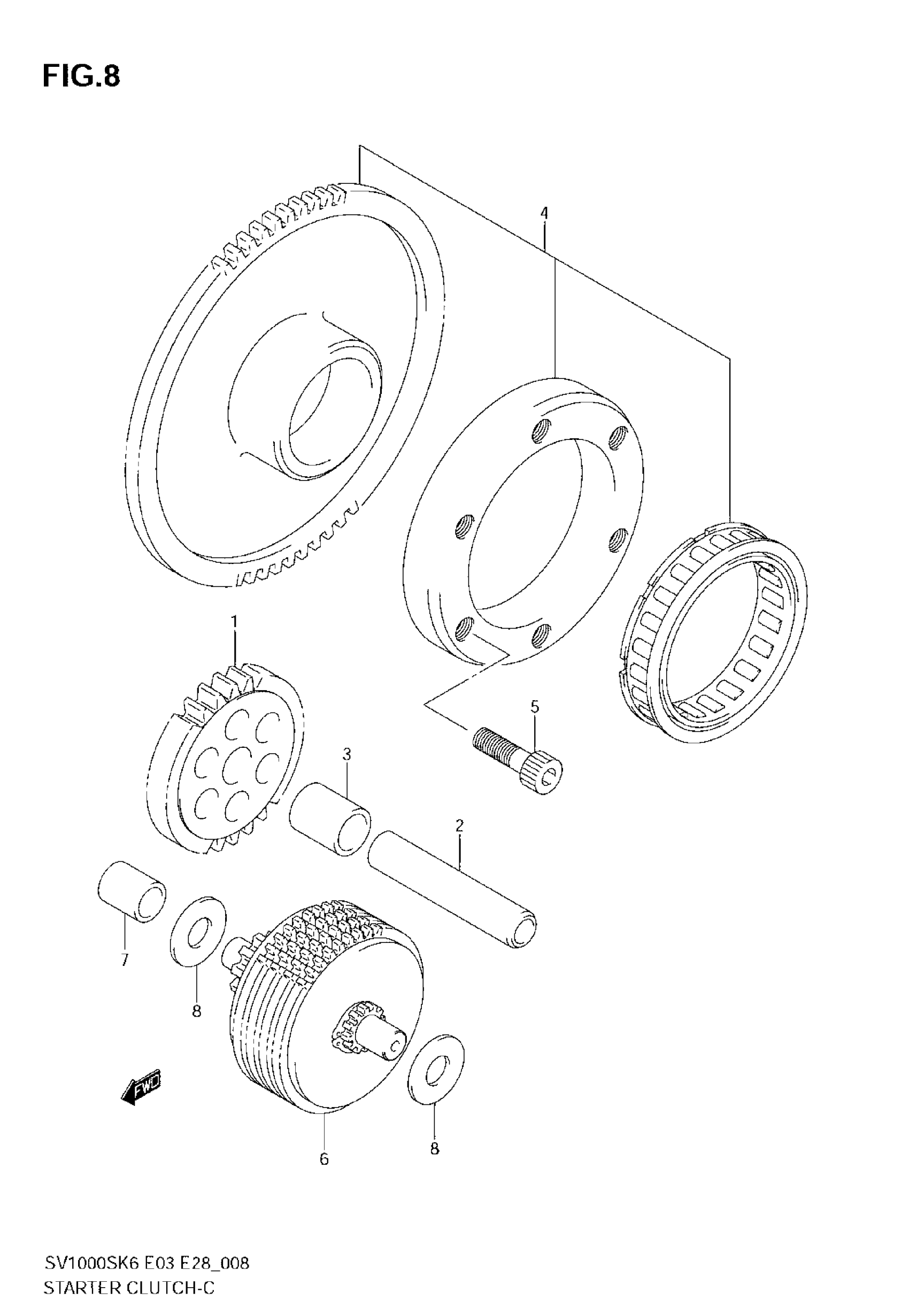

Suzuki SV1000 (2007) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE

12612-06G00

Unavailable

2

PIN

09206-12002

$16.00

3

SPACER

09180-12140

$9.10

4

CLUTCH SET, STARTER

12600-06811

$347.67

5

BOLT

09106-08106

$2.72

6

LIMITER ASSY, STARTER IDLE This part replaces 12600-06G00.

12600-06G01

Unavailable

7

BUSH LIMITER GEAR SHAFT

12618-31D01

$22.62

8

WASHER

08211-10221

$2.28
