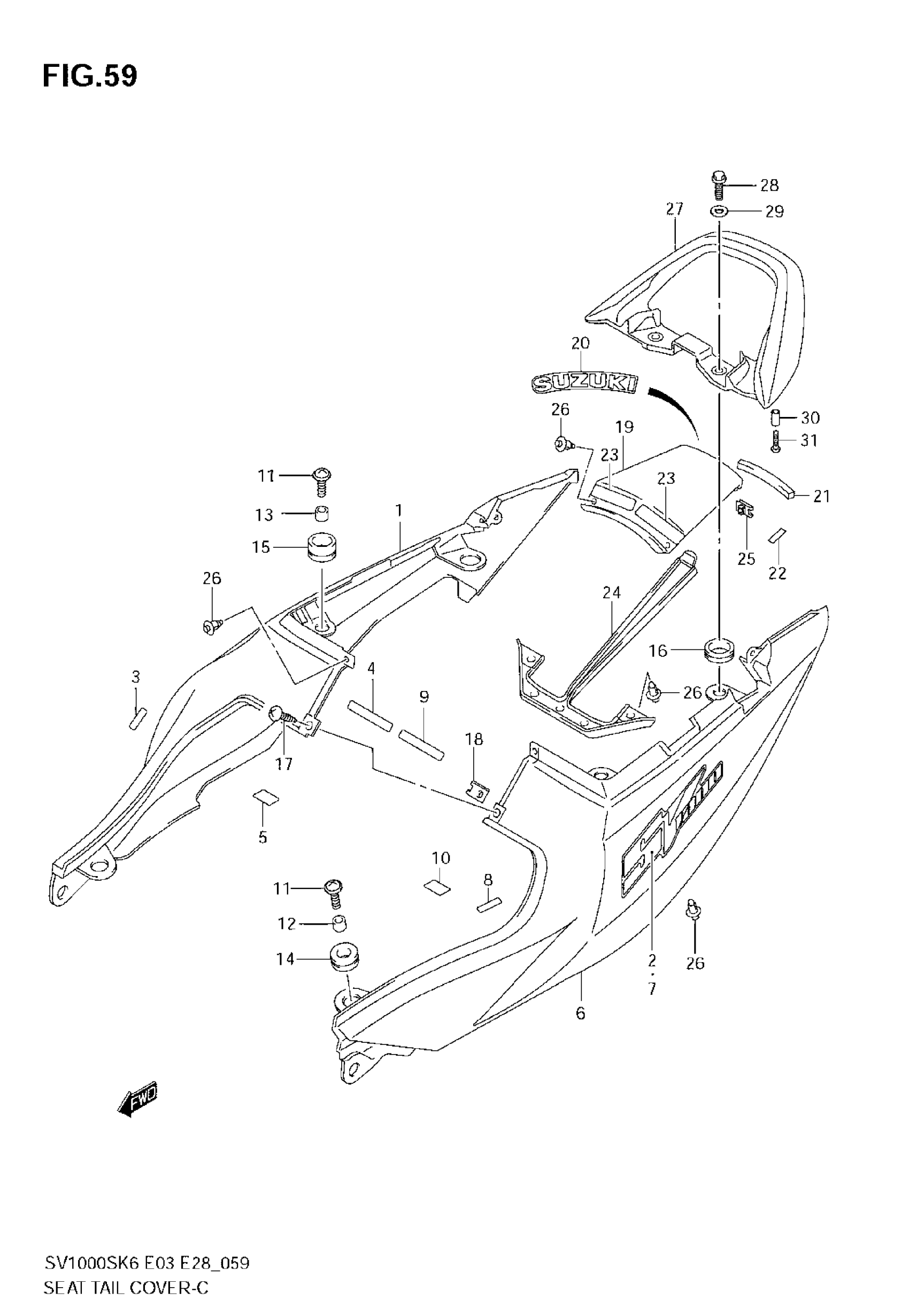

Suzuki SV1000 (2007) SEAT TAIL COVER (SV1000K6) (NOT FOR US MARKET) Diagram

#

Description
Price

1

COVER, SEAT TAIL, R (BLACK) | FOR YAY

45501-16G31-4CX

Unavailable

1

COVER, SEAT TAIL, R (BLUE) | FOR YBA

45501-16G31-YBA

Unavailable

1

COVER, SEAT TAIL, R (GRAY) | FOR YHG; Includes Item(s) 2 - 5

45501-16G31-YHG

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YAY

68161-16G20-CSY

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YBA

68161-16G20-CSZ

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YHG

68161-16G20-CTA

Unavailable

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

4

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

5

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

6

COVER, SEAT TAIL, L (BLACK) | FOR YAY

45502-16G31-4CX

Unavailable

6

COVER, SEAT TAIL, L (BLUE) | FOR YBA

45502-16G31-YBA

Unavailable

6

COVER, SEAT TAIL, L (GRAY) | FOR YHG; Includes Item(s) 7 - 10

45502-16G31-YHG

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR 4CX

68161-16G20-CSY

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YBA

68161-16G20-CSZ

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YHG

68161-16G20-CTA

Unavailable

8

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

9

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

10

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

11

SCREW

09136-06082

$2.12

12

SPACER | FR

09180-06286

$2.50

13

SPACER | CTR

09180-06286

$2.50

14

CUSHION | FR This part replaces 09320-10052.

09320-10079

$3.61

15

CUSHION,FRAME COVER UP | CTR This part replaces 47115-16G00.

47115-16G01

$3.37

16

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$2.69

17

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

18

NUT

09148-05038

$1.97

19

COVER,SEAT TAIL This part replaces 45503-16G00-YAY.

45503-16G01-YAY

$95.77

19

COVER,SEAT TAIL This part replaces 45503-16G00-YBA.

45513-16G00

$39.62

19

COVER,SEAT TAIL | Includes Item(s) 20 - 23 This part replaces 45503-16G00-YHG.

45513-16G00

$39.62

20

.EMBLEM,SUZUKI (SILVER) | FOR YAY,YBA This part replaces 68161-16G00-YD8.

68161-16G01-YD8

$7.20

20

EMBLEM, "SUZUKI" | FOR YHG

68161-16G00-17U

Unavailable

21

CUSHION

45518-16G00

$6.47

22

TAPE, SEAT TAIL COVER

45517-16G00

$8.05

23

TAPE

45516-42F00

$8.93

24

COVER, SEAT TAIL, REAR (BLACK)

45514-16G00-YAY

$77.92

24

COVER,SEAT TAIL This part replaces 45514-16G00-YBA.

45514-16G00

$26.05

24

COVER, SEAT TAIL, REAR (GRAY)

45514-16G00-YHG

Unavailable

25

NUT

09148-06018

$3.16

26

CLIP

09409-06314-5PK

$2.78

27

HANDLE, PILLION RIDER (BLACK)

46211-16G00-YAY

Unavailable

27

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YBA

Unavailable

27

HANDLE, PILLION RIDER (GRAY)

46211-16G00-YHG

Unavailable

28

BOLT This part replaces 01551-08403.

01551-0840B

$3.29

29

WASHER

09160-08501

$2.28

30

SPACER

09180-06271

$2.35

31

SCREW

09139-06112

$3.93
