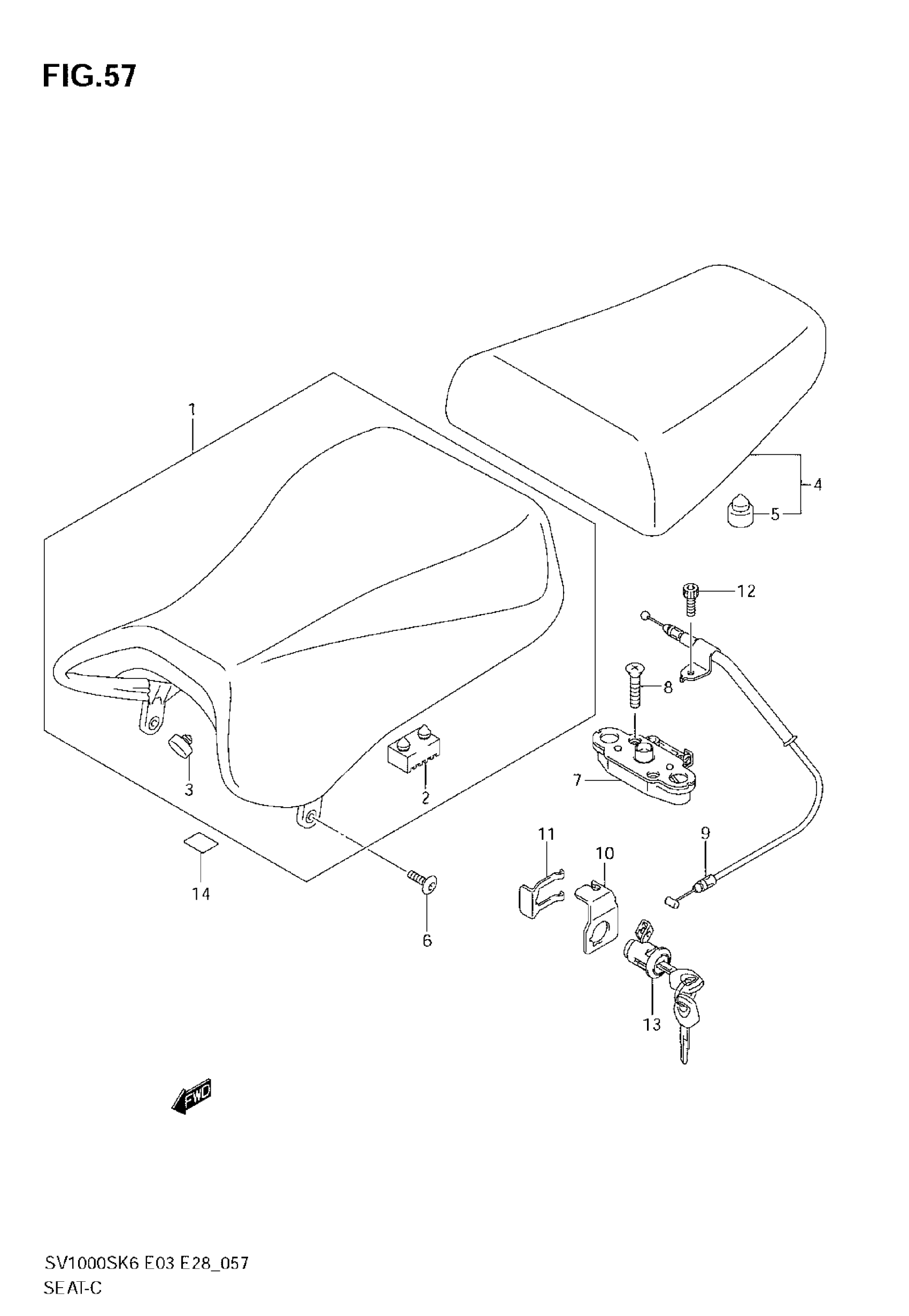

Suzuki SV1000 (2007) SEAT Diagram

#

Description
Price

1

SEAT ASSY(BLACK | Includes Item(s) 2 - 3 This part replaces 45100-16G31-W05.

45100-16G33-W05

Unavailable

2

CUSHION

45149-42F00

$8.42

3

CUSHION This part replaces 45148-16700.

09321-10002

$2.22

4

SEAT ASSY,PILLI | Includes Item(s) 5 This part replaces 45300-16G00-W05.

45300-16G01-W05

$217.48

5

CUSHION

09321-10019

$4.90

6

BOLT, SEAT

09106-06064

$6.02

7

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

8

SCREW | MODEL K6 This part replaces 02122-06353.

02122-0635B

$3.33

8

SCREW | MODEL K7

02122-0635B

$3.33

9

CABLE,SEAT LOCK This part replaces 45280-16G00.

45280-16G01

$28.93

10

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

11

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

12

BOLT | MODEL K6 This part replaces 07130-06163.

07130-0616B

$2.39

12

BOLT, SEAT LOCK CABLE | MODEL K7

07130-0616B

$2.39

13

LOCK SET, SEAT

95700-14810

$107.30

14

TAPE,FUEL TANK (30X40X0.2)

45517-16G20

$11.17
