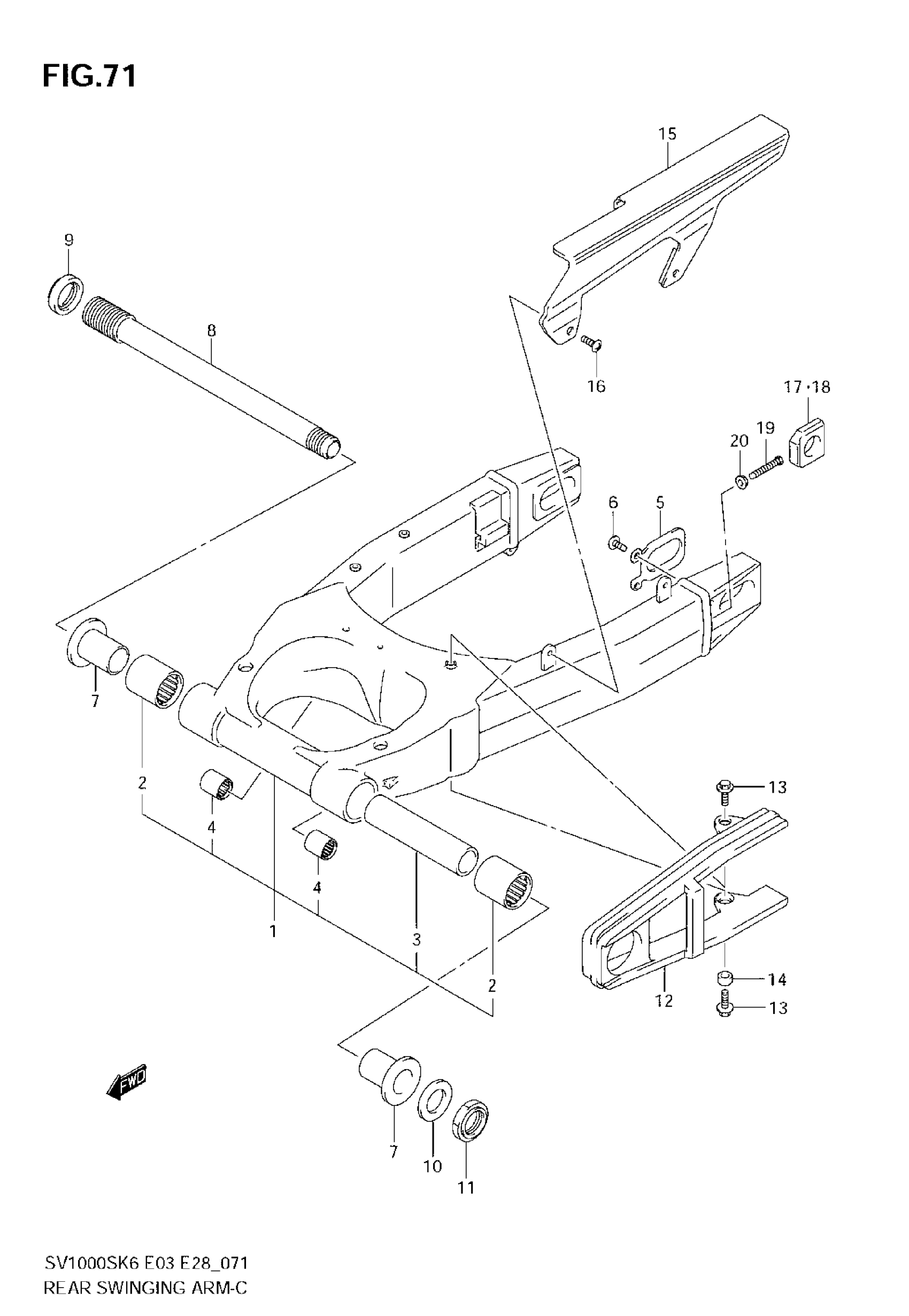

Suzuki SV1000 (2007) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | SV1000K6 NOT FOR US MARKET

61000-16G30-YAP

Unavailable

1

SWINGING ARM ASSY, REAR | SV1000SK6/SK7; Includes Item(s) 2 - 4

61000-16G40-YAP

Unavailable

2

BEARING, PIVOT (30X40X33)

09263-30053

$49.98

3

SPACER, CENTER | MODEL K6 This part replaces 61281-33E10.

61281-33E20

$56.48

3

SPACER, CENTER | MODEL K7

61281-33E20

$56.48

4

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

5

PLATE, BRACKET

61124-33E00

$6.85

6

SCREW

09125-06073

$1.84

7

SPACER, BEARING

61251-16G00

$38.23

8

SHAFT,RR SWINGINGARM PIVOT

61211-16G00

$181.83

9

NUT, PIVOT BOLT

61214-40C31

$56.90

10

WASHER

09160-25070

$4.77

11

NUT This part replaces 09159-25001.

09159-25003

$31.85

12

BUFFER,CHAIN TO This part replaces 61273-16G00.

61273-16G01

$42.68

13

BOLT (6X20)

09116-06192

$2.30

14

SPACER

09180-06299

Unavailable

15

CASE,CHAIN

61310-16G00

$98.40

16

SCREW

09113-06001

$2.73

17

ADJUSTER, CHAIN, R

61445-40F00

$47.20

18

ADJUSTER, CHAIN, L

61446-40F00

$47.20

19

BOLT (8X50)

09100-08287

$3.10

20

NUT | MODEL K6 This part replaces 08316-10083.

08316-1008B

$2.66

20

NUT | MODEL K7

08316-1008B

$2.66
