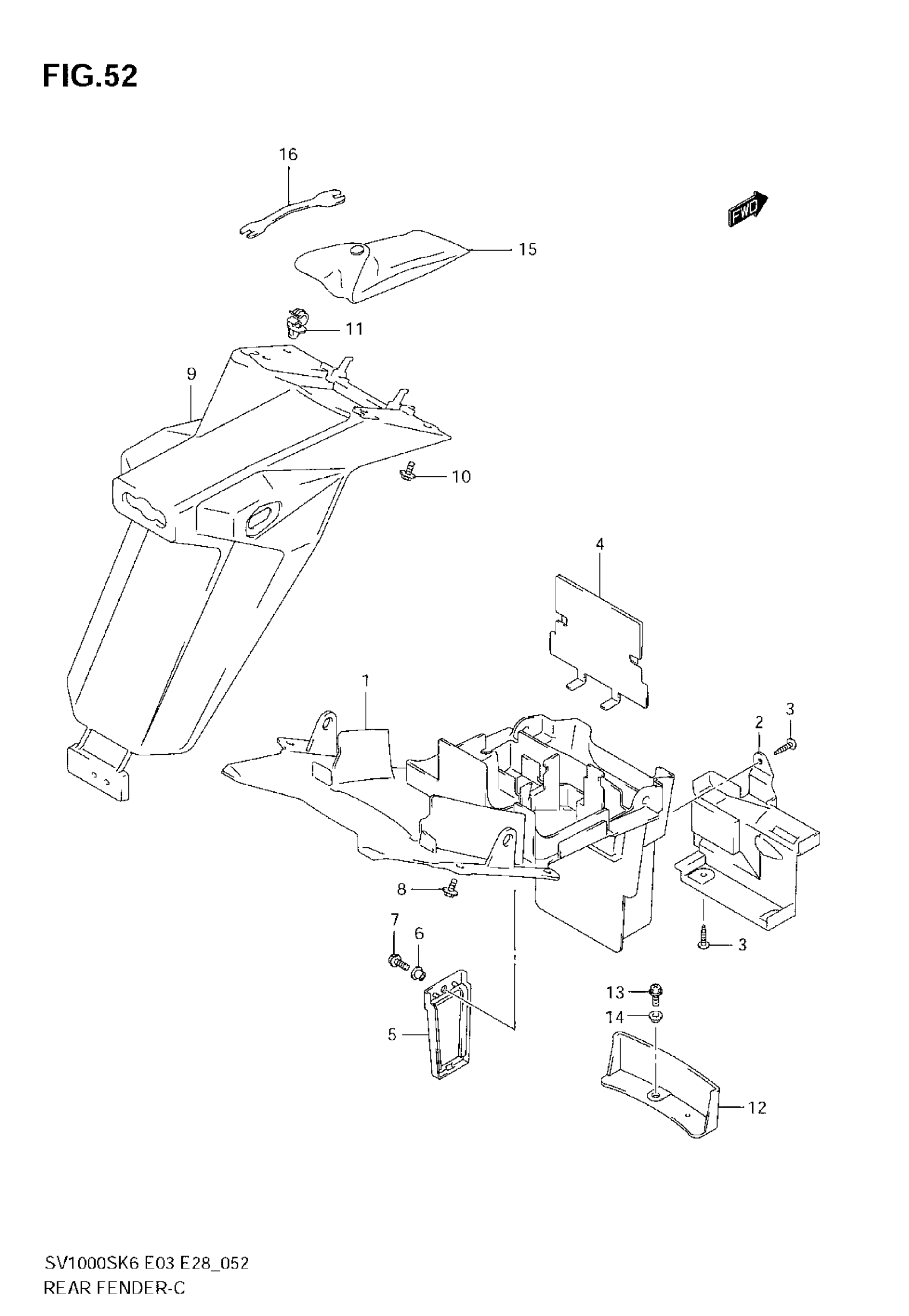

Suzuki SV1000 (2007) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR, FRONT (BLACK)

63110-16GA0-5PK

Unavailable

2

COVER, REAR FENDER FRONT

63260-16GA0

Unavailable

3

SCREW

03541-0512B

$1.78

4

COVER, REAR FENDER UPPER

63251-16GA0

Unavailable

5

LID, REAR FENDER FRONT

63190-16GA0

$39.48

6

GROMMET

09409-08329

$2.40

7

PLUNGER

09409-08330

$2.38

8

BOLT,6X14 | MODEL K6 This part replaces 09116-06098.

09116-06098-XC0

$2.47

8

BOLT | MODEL K7

09116-06210

$2.47

9

FENDER, REAR (BLACK)

63112-16GB1-5PK

$90.22

10

BOLT,6X14 | MODEL K6 This part replaces 09116-06098.

09116-06098-XC0

$2.47

10

BOLT | MODEL K7

09116-06210

$2.47

11

CLIP

09403-07325

$2.92

12

MUDGUARD, LOWER

63421-16GA0

Unavailable

13

SCREW

02162-0616B

$2.03

14

WASHER

09169-06071

$2.50

15

TOOL ASSY This part replaces 09800-21039.

09800-21089

$69.16

16

SPANNER | SV1000K6 NOT FOR US MARKET

09813-00039

Unavailable
