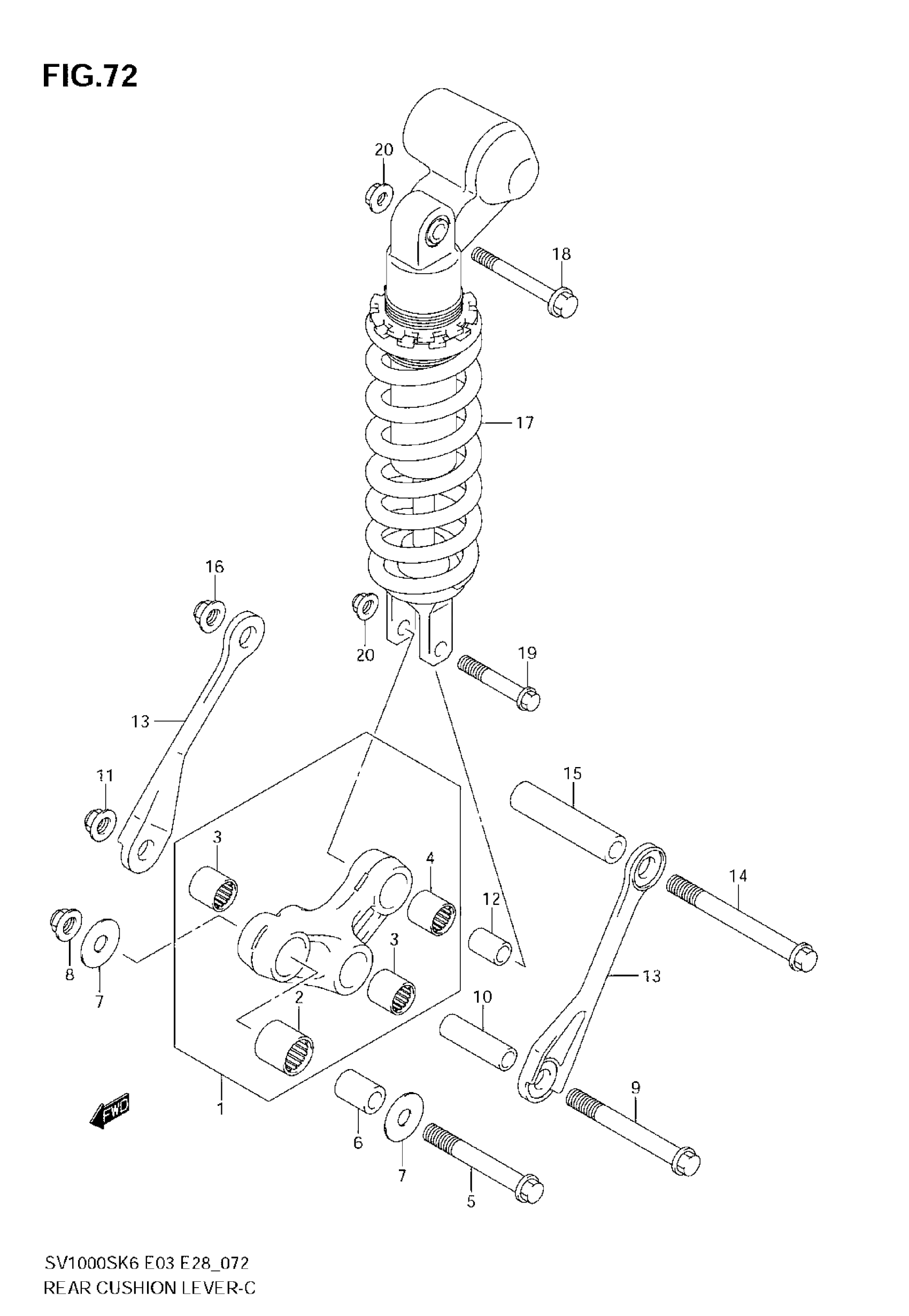

Suzuki SV1000 (2007) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,REAR | Includes Item(s) 2 - 4 This part replaces 62600-16840.

62600-16850

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

BOLT, RR CUSHION LEVER FR

62658-19F00

$11.95

6

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

7

WASHER

09160-12037

$3.83

8

NUT

09159-12056

$7.37

9

BOLT, RR CUSHION LEVER CTR

62621-08G00

Unavailable

10

SPACER, CENTER

62626-16G00

Unavailable

11

NUT

09159-12056

$7.37

12

SPACER, REAR (10X17X30)

62684-40A10

$12.15

13

ROD, REAR CUSHION | SV1000SK6/SK7

62641-16G00

Unavailable

13

ROD, REAR CUSHION | SV1000K6 NOT FOR US MARKET

62641-16G10

Unavailable

14

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$19.15

15

SPACER, ROD (12X17X85)

09180-12122

$23.05

16

NUT

09159-12056

$7.37

17

ABSORBER ASSY, REAR SHOCK (WHITE) | SV1000K6 NOT FOR US MARKET

62100-16G10-28W

Unavailable

17

ABSORBER ASSY, REAR SHOCK (WHITE) | SV1000SK6/SK7 E28

62100-16G70-28W

Unavailable

17

ABSORBER ASSY, REAR SHOCK (WHITE) | SV1000SK6/SK7 E3,E33

62100-16G80-28W

Unavailable

18

BOLT, UPPER (10X70)

09103-10033

$6.17

19

BOLT, LOWER

09103-10143

$4.52

20

NUT, REAR SWGARM BRACKET | MODEL K6 This part replaces 09159-10058.

09159-10115

$3.55

20

NUT | MODEL K7

09159-10115

$3.55
