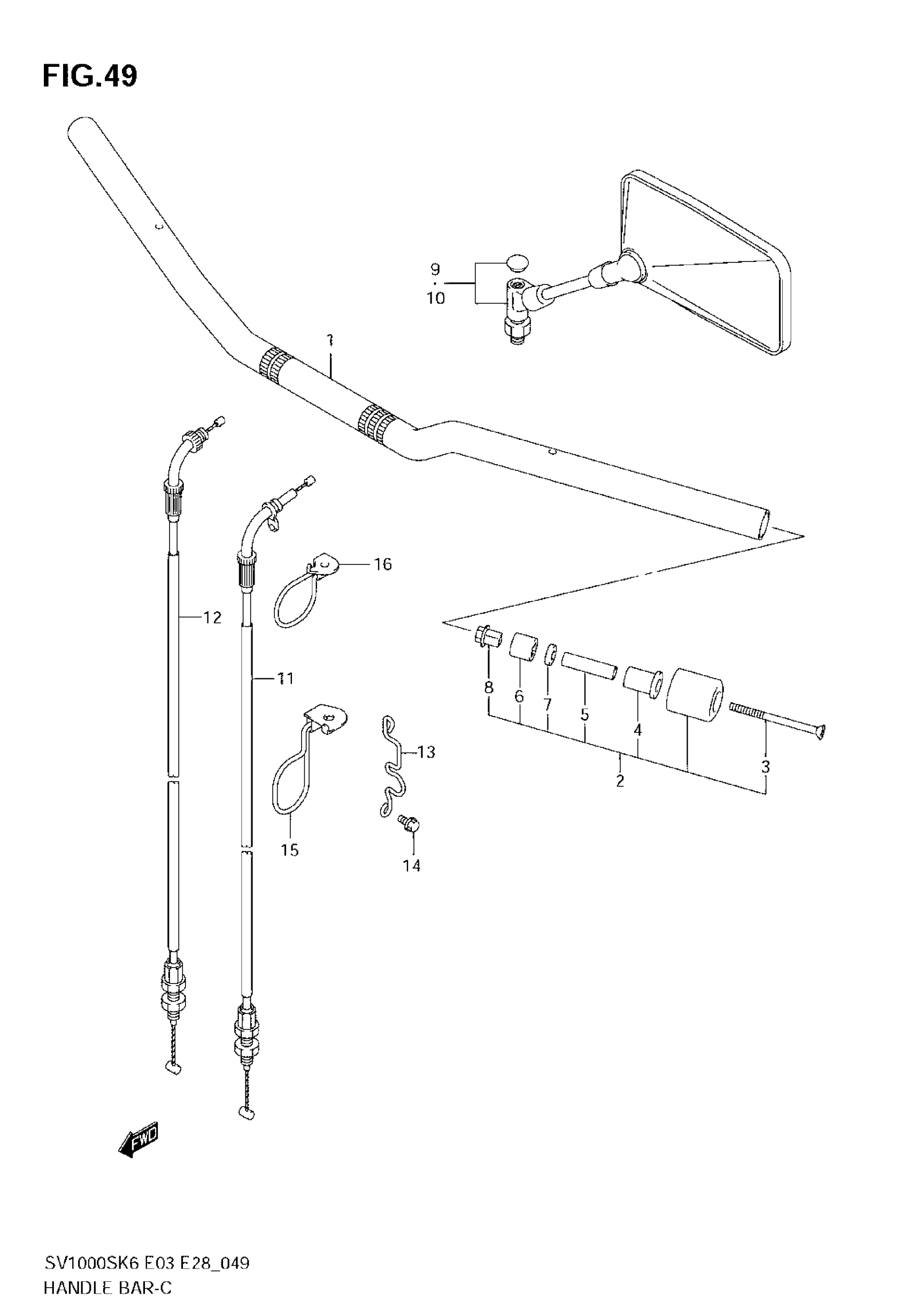

Suzuki SV1000 (2007) HANDLEBAR (SV1000) (NOT FOR US MARKET) Diagram

HANDLEBAR

56111-16G10

$183.03

BALANCER SET, HANDLEBAR | Includes Item(s) 3 - 8 This part replaces 56200-16840.

56200-16843

$36.13

SCREW

09127-06018

$3.38

EXPANDER, OUTER

56272-06G00

$8.13

SPACER

56276-17D00

$5.07

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

WASHER

09160-06131

$2.50

NUT This part replaces 56273-10G00.

56273-10G10

$8.65

MIRROR ASSY,REA This part replaces 56500-17G10.

56500-17G40

Unavailable

MIRROR ASSY,RR This part replaces 56600-17G10.

56600-17G41

$325.83

CABLE ASSY, THROTTLE NO.1

58300-16GA0

$24.60

CABLE ASSY, THROTTLE NO.2

58300-16GB0

$26.07

GUIDE, CABLE

58621-16GA0

$18.58

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

GUIDE, THROTTLE NO.1

58620-16G30

Unavailable

GUIDE, THROTTLE NO.2

58620-16G20

$18.58
