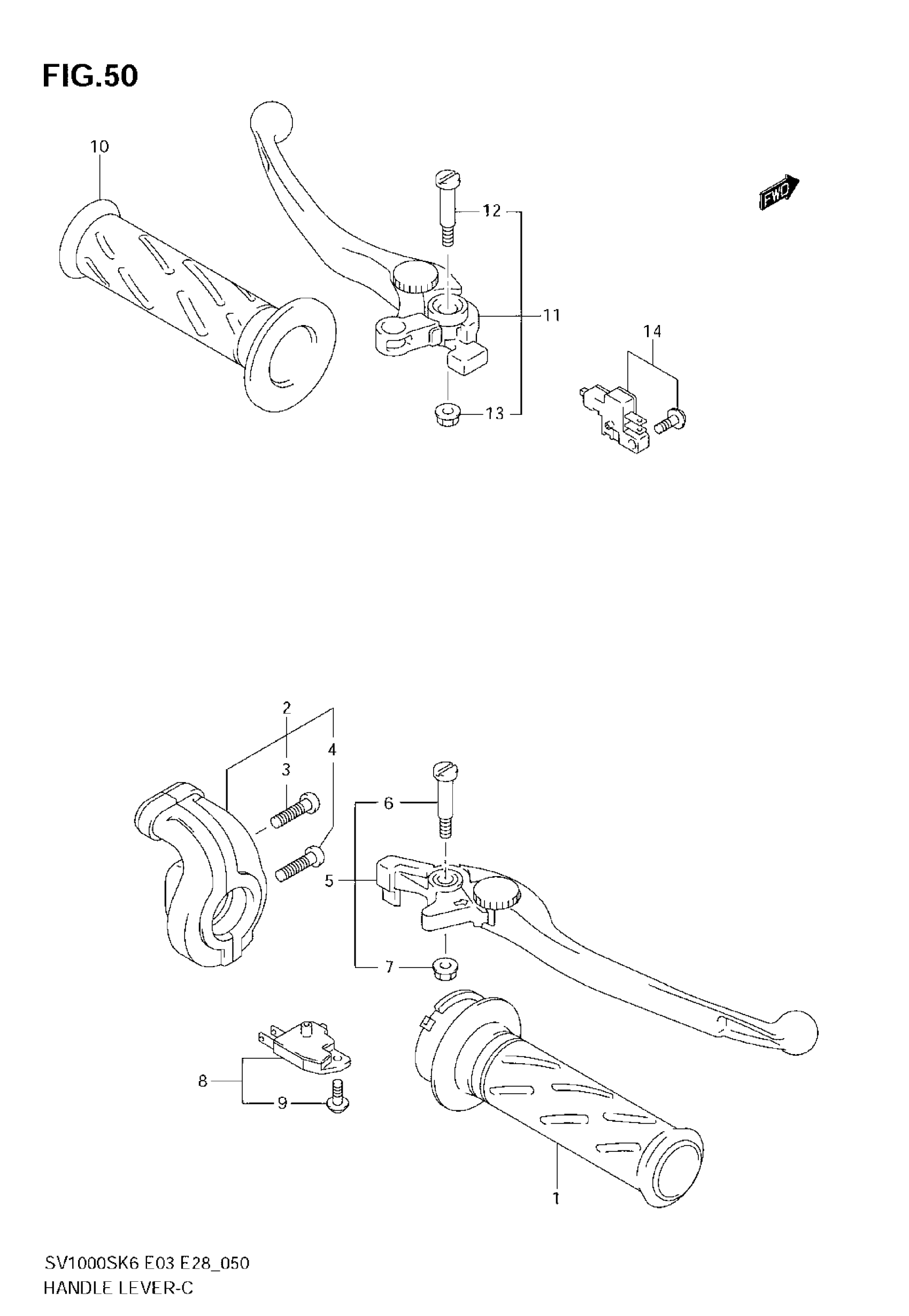

Suzuki SV1000 (2007) HANDLE LEVER (SV1000S) Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-45D02.

57110-45D03

$26.44

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

$70.49

3

SCREW

09125-05066

$1.65

4

SCREW This part replaces 02112-05203.

02112-0520B

$1.84

5

LEVER ASSY, BRAKE | Includes Item(s) 6 - 7

57300-33E01

$48.61

6

BOLT, PIVOT

57431-17C00

$7.11

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

SWITCH ASSY,FR BRAKE | Includes Item(s) 9 This part replaces 57460-17C11.

57460-14J02

$38.46

9

SCREW

57465-17C00

$2.19

10

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

11

LEVER ASSY,CLUT | Includes Item(s) 12 - 13 This part replaces 57500-24F00.

57500-24F01

$52.67

12

BOLT, PIVOT

57431-17C00

$7.11

13

NUT This part replaces 08316-10063.

08316-1006B

$2.50

14

SWITCH ASSY,CLUTCH

57560-02FA0

$23.58
