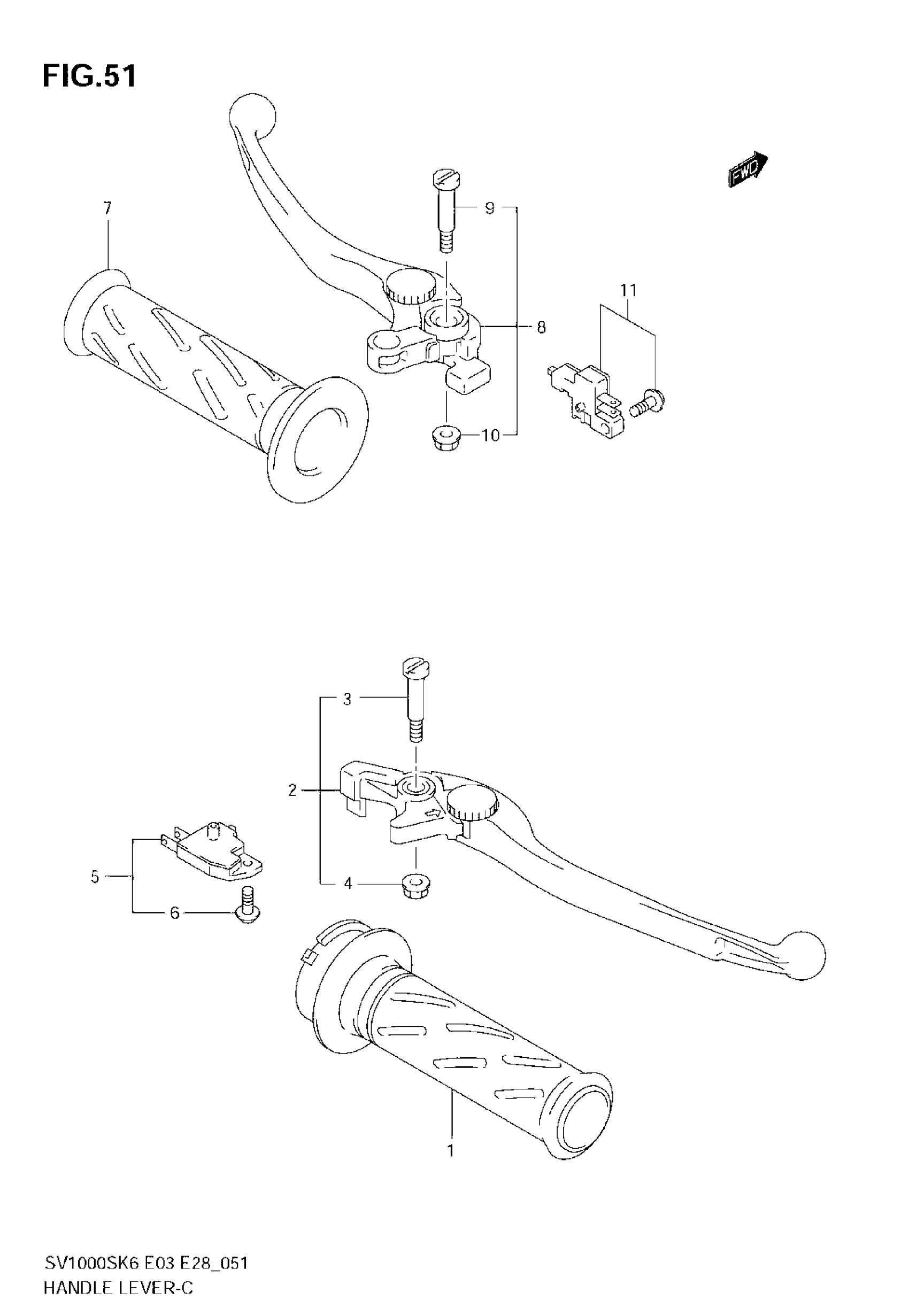

Suzuki SV1000 (2007) HANDLE LEVER (SV1000K6) (NOT FOR US MARKET) Diagram

#

Description

Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4

57300-33E01

$48.61

3

BOLT, PIVOT

57431-17C00

$7.11

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 10 This part replaces 57500-24F00.

57500-24F01

$52.67

9

BOLT, PIVOT

57431-17C00

$7.11

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

SWITCH ASSY,CLUTCH

57560-02FA0

$23.58
