2007 Suzuki SV1000 Fuel Tank Diagram

← All diagrams

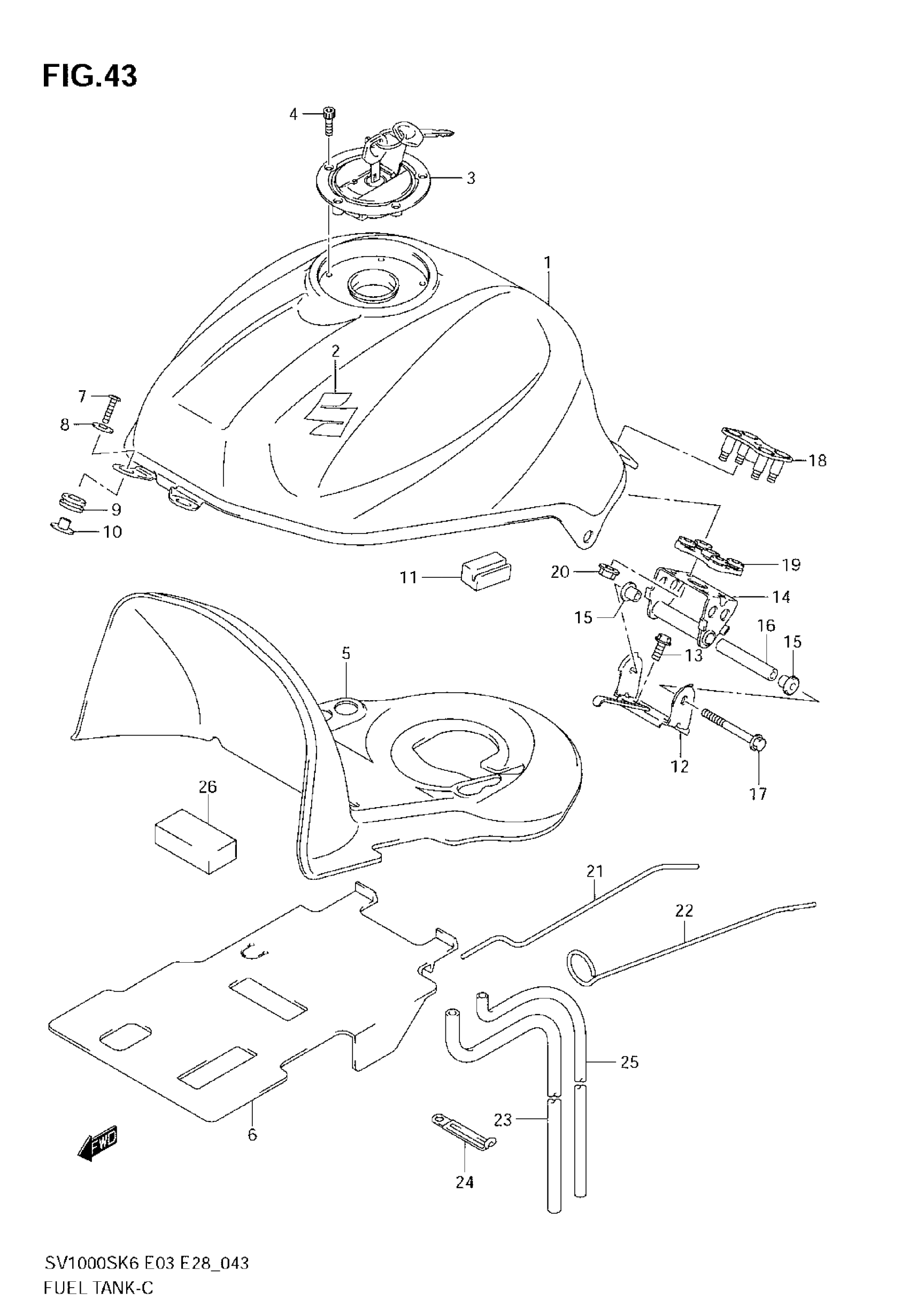

Find the part on the Fuel Tank diagram for your 2007 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki SV1000 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL( | E3,E28 This part replaces 44100-16G60-YAY.

44100-16G61-YAY

1
Out of stock

1

TANK ASSY,FUEL( | MODEL K6 E3,E28 This part replaces 44100-16G60-YBA.

44110-16G03-13L

1
Out of stock

1

TANK ASSY, FUEL (GRAY) | MODEL K6 E3,E28

44100-16G60-YHG

1
Out of stock

1

TANK ASSY,FUEL( | MODEL K7 E3,E28 This part replaces 44100-16G60-YKY.

44100-16G61-YKY

1
Out of stock

1

TANK ASSY,FUEL( | MODEL K6 E33 This part replaces 44100-16G80-YBA.

44110-16G23-13L

1
Out of stock

1

TANK ASSY, FUEL (GRAY) | MODEL K6 E33 This part replaces 44100-16G80-YHG.

44100-16G81-YHG

1
Out of stock

1

TANK ASSY,FUEL( | MODEL K7 E33 This part replaces 44100-16G81-YKY.

44110-16G23-13L

1
Out of stock

2

EMBLEM

68111-18G20

2
Out of stock

3

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

1
Out of stock

3

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

1
Out of stock

4

BOLT

09106-05017

3
Out of stock

5

SHIELD, HEAT

44191-16G00

1
Out of stock

6

SHEET, HEAT RUBBER

44271-16G10

1
Out of stock

7

SCREW, FRONT

09139-06029

2
Out of stock

8

WASHER

09160-06054

2
Out of stock

9

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

2
Out of stock

10

SPACER

44512-16G00

2
Out of stock

11

CUSHION, SIDE

44541-16G00

2
Out of stock

12

BRACKET,FUEL TA | E3,E28 This part replaces 44550-16G10.

44550-16G1V

1
Out of stock

12

BRACKET, REAR | E33

44550-16G20

1
Out of stock

13

BOLT

01550-0820B

2
Out of stock

14

BRACKET, CENTER

44530-16G10

1
Out of stock

15

CUSHION, BRACKET

44543-16G00

2
Out of stock

16

SPACER, JOINT

44561-35F00

1
Out of stock

17

BOLT, JOINT

09103-06060

1
Out of stock

18

BRACKET,FUEL TANK RR UP

44570-16G00

1
Out of stock

19

CUSHION

44542-16G00

1
Out of stock

20

NUT

08319-3106B

4
Out of stock

21

STAY,FUEL TANK

44574-16G00

1
Out of stock

22

HOSE,WATER DRAI This part replaces 44423-16G10.

44423-16G11

1
Out of stock

23

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

2
Out of stock

24

HOSE,FUEL TANK This part replaces 44424-16G00.

44424-18G01

1
Out of stock

25

CUSHION

44545-16G00

1
Out of stock

26

MOLDING This part replaces 68241-16G00.

68241-16G01

2
Out of stock
