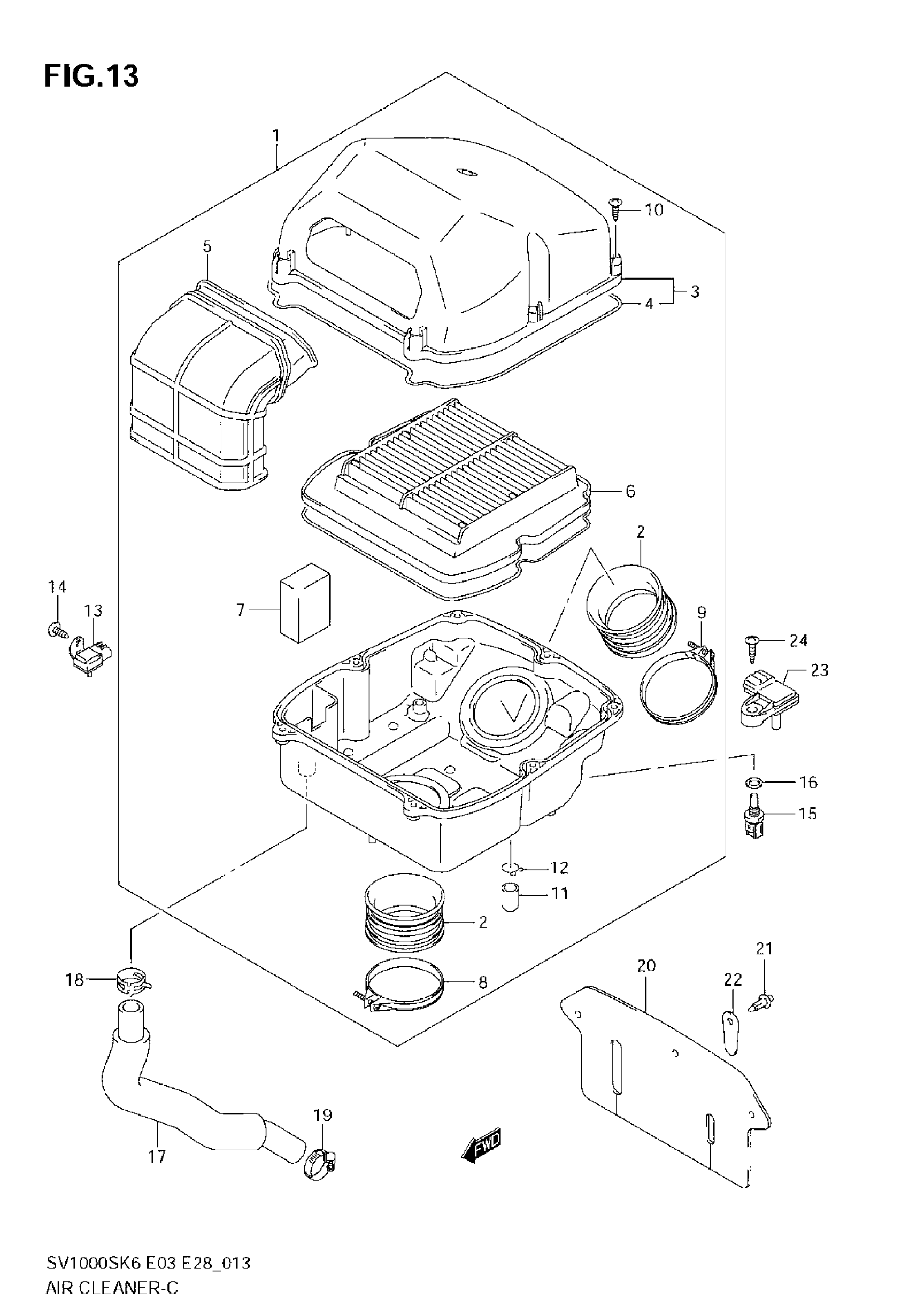

Suzuki SV1000 (2007) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-16G20

Unavailable

2

TUBE,OUTLET This part replaces 13881-16G00.

13881-16G01

$11.57

3

CAP,AIR CLEANER This part replaces 13740-16G00.

13740-16G01

$48.67

4

GASKET, AIR CLEANER

13746-16G00

$10.78

5

TUBE,INLET This part replaces 13891-16G20.

13891-16G21

$55.72

6

FILTER, AIR CLEANER

13780-16G00

$30.42

7

FILTER, BREATHER

13788-16G00

$13.27

8

CLAMP

13826-16G00

Unavailable

9

CLAMP

13826-16G00

Unavailable

10

SCREW This part replaces 03541-05203.

03541-0520A

$1.81

11

.PLUG

13859-41B10

$6.94

12

CLIP

09401-14301

$2.17

13

SENSOR BOOST

15620-35F00

Unavailable

14

SCREW This part replaces 03541-05123.

03541-0512A

$1.37

15

SENSOR, AIR TEMP

13650-61B00

$122.53

16

GASKET, TEMP SENSOR

09168-12017

$1.97

17

TUBE, BREATHER

13850-16G00

Unavailable

18

CLIP

09401-20405

$4.43

19

CLAMP

09402-28511

$6.21

20

GUARD, WATER | SV1000 NOT FOR US MARKET

13739-16G00

Unavailable

21

CLIP | SV1000 NOT FOR US MARKET

09409-06317

$3.77

22

PLATE, WATER GUARD | SV1000 NOT FOR US MARKET

13738-16G00

Unavailable

23

SENSOR, BOOST NO.2

15620-16G10

Unavailable

24

SCREW This part replaces 03541-05253.

03541-0525B

$2.34
