Description

Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 13

15100-16G00

$1,088.73

2

FILTER ASSY, FUEL

15410-16G00

$421.28

3

STRAINER, FUEL PUMP

15420-24FB0

$82.58

4

CUSHION, FUEL PUMP

15111-35F00

$9.25

5

HOLDER, FUEL PUMP

15112-42F00

$19.13

6

BUSH, FUEL PUMP

15114-35F00

$15.23

7

O RING

15113-35F00

$8.91

8

NUT

15115-35F00

$10.34

9

SCREW

15116-35F10

$6.31

10

THERMISTOR

15170-16G00

$276.68

11

WASHER

15171-35F00

$7.20

12

SPRING WASHER

15172-35F00

$7.20

13

NUT

15173-35F00

Unavailable

14

O-RING

15201-35F00

$27.60

15

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

16

HOSE COMP, FUEL This part replaces 15810-16G00.

15810-16G01

$65.32

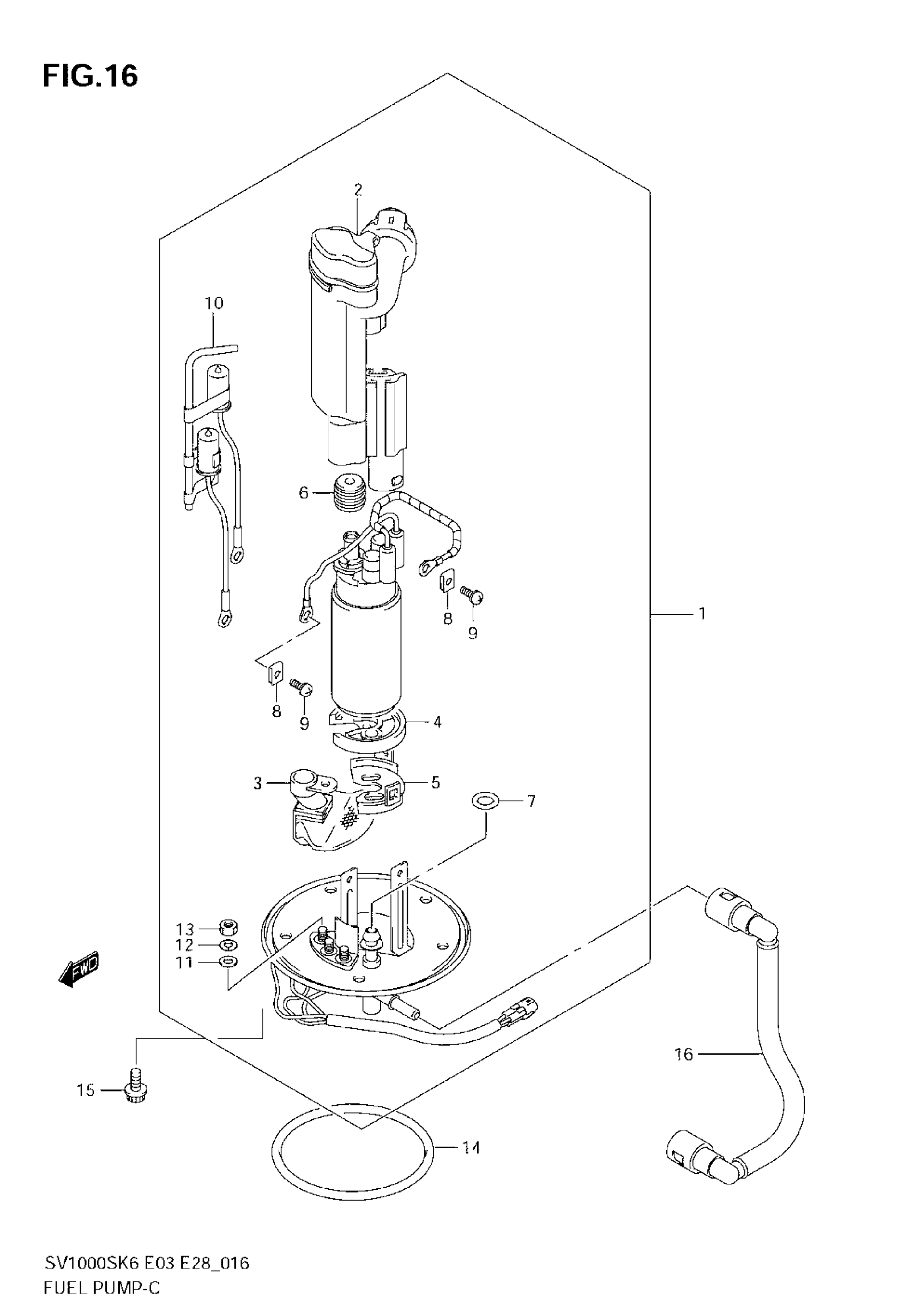

Suzuki SV1000 (2007) FUEL PUMP Diagram
