Description

Price

1

WHEEL, FRONT 17M/CXMT3.50 (BLACK) | MODEL K6

54111-35F11-019

$978.60

1

WHEEL, FRONT 17M/CXMT3.50 (BLACK) | MODEL K7 This part replaces 54111-35F01-019.

54111-35F11-019

$978.60

2

SPACER,FR HUB BEARING | MODEL K6 This part replaces 54731-35F00.

54731-35F10

$37.45

2

SPACER,FR HUB BEARING | MODEL K7

54731-35F10

$37.45

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-35F10

$150.35

6

NUT, AXLE

54712-33E00

$58.96

7

DISC, FRONT BRAKE

59210-16G00

Unavailable

8

BOLT (8X33)

09106-08148

$4.80

9

TIRE, FRONT, 120/70ZR 17M/C | PURCHASE LOCALLY

55110-16G10

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

BALANCER (10G)

43222-73H10

$5.82

11

BALANCER (20G)

43224-73H10

$5.50

11

BALANCER (30G)

43226-73H10

$6.42

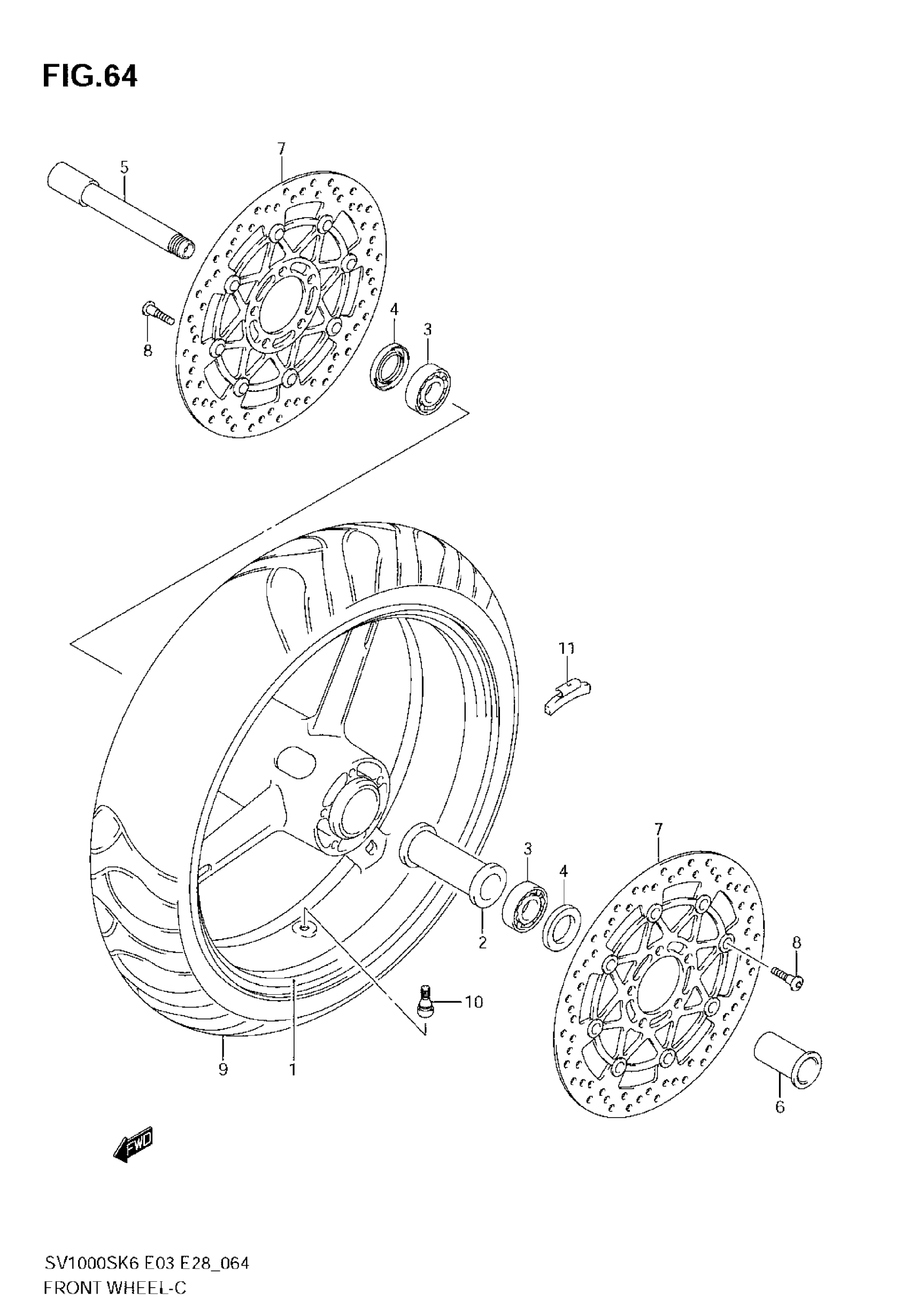

Suzuki SV1000 (2007) FRONT WHEEL Diagram
