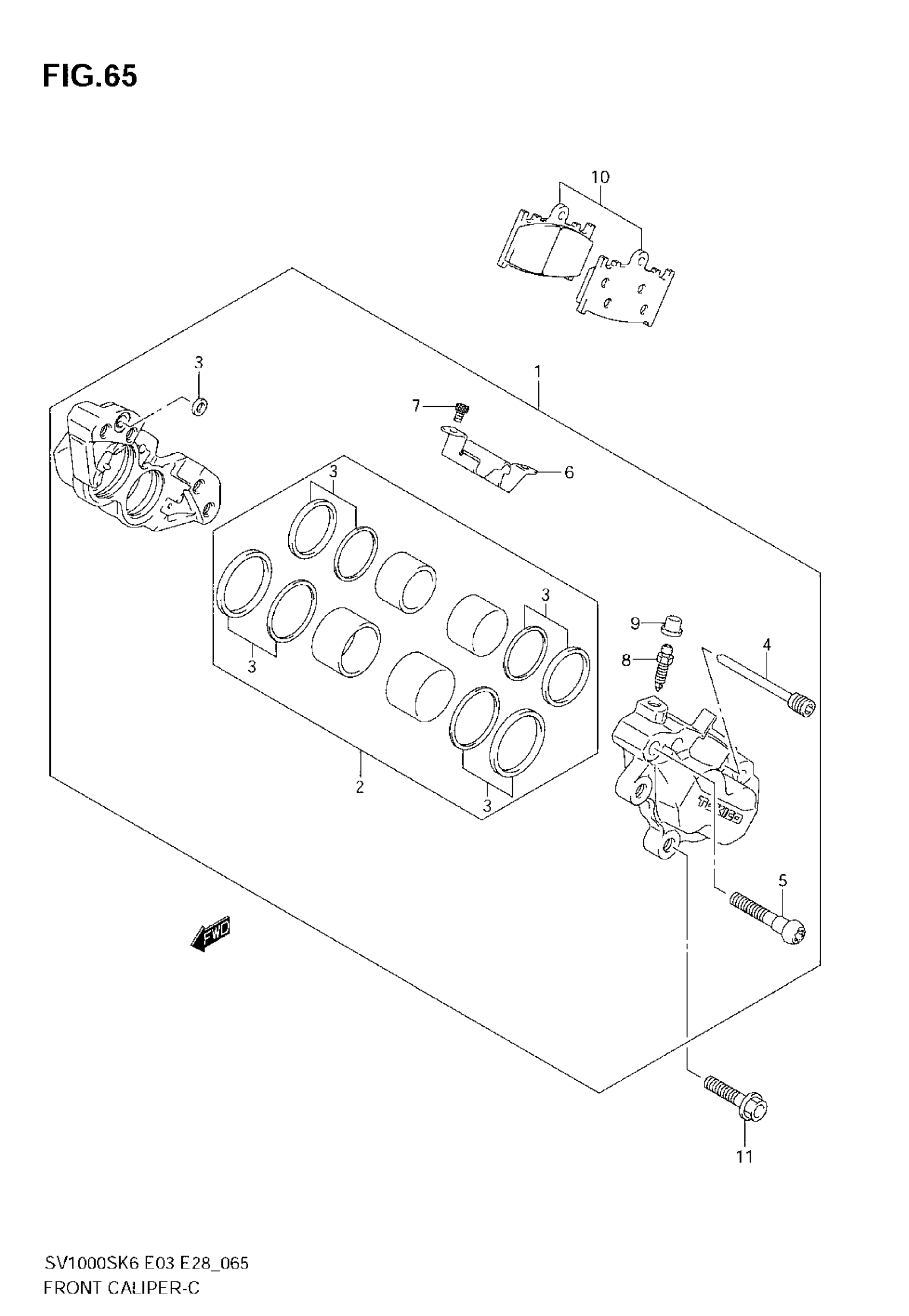

Suzuki SV1000 (2007) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-35F50-999

Unavailable

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 9

59300-35F50-999

Unavailable

2

PISTON SET

59100-35870

$109.45

3

SEAL SET, PISTON

59100-29830

$42.60

4

PIN

59141-40F00

$37.45

5

BOLT

59145-18G00

$9.92

6

COVER, RH

59152-35F00

$21.03

6

COVER, LH

59151-35F00

$21.03

7

.SCREW

59153-22D00

$6.30

8

BLEEDER

59121-18410

$8.73

9

CAP

55156-66310

$5.17

10

PAD SET

59100-35880

$54.09

11

BOLT

09103-08359

$3.76
