2007 Suzuki SV1000 Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 2007 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

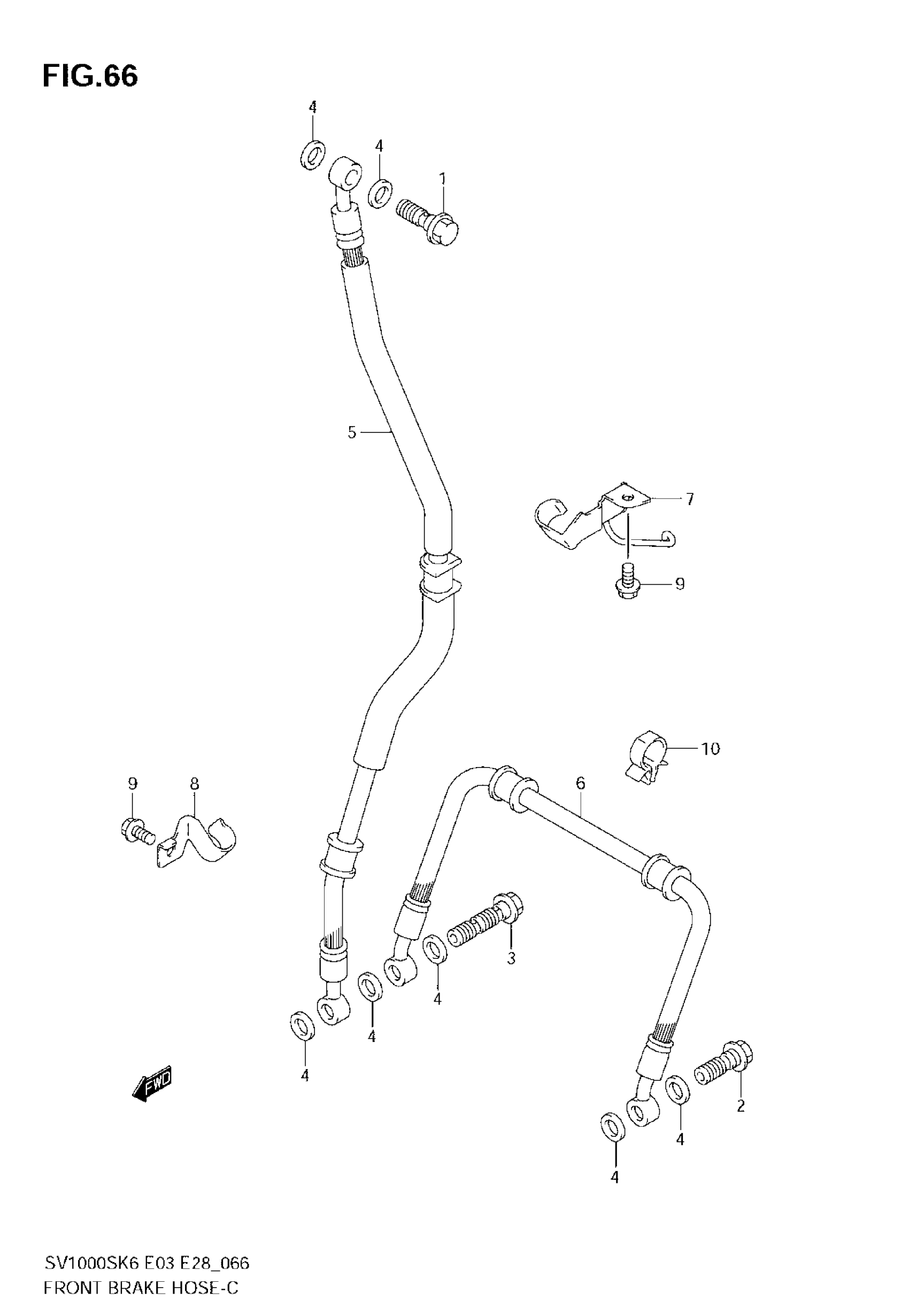

2007 Suzuki SV1000 Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNION | MODEL K6 This part replaces 09360-10042.

09360-10062

1
Out of stock

1

BOLT, UPPER | MODEL K7

09360-10062

1
Out of stock

2

UNION | MODEL K6 This part replaces 09360-10042.

09360-10062

1
Out of stock

2

BOLT, LH | MODEL K7

09360-10062

1
Out of stock

3

UNION | MODEL K6 This part replaces 09360-10044.

09360-10064

1
Out of stock

3

BOLT, RH | MODEL K7

09360-10064

1
Out of stock

4

WASHER (10X15X1.5)

09161-10009

7
Out of stock

5

HOSE, FRONT BRAKE NO.1 | SV1000SK6/SK7

59480-16G00

1
Out of stock

5

HOSE, FRONT BRAKE NO.1 | SV1000K6 NOT FOR US MARKET

59480-16G10

1
Out of stock

6

HOSE, FRONT BRAKE NO.2

59240-16G00

1
Out of stock

7

CLAMP, BRAKE HOSE

59260-16G00

1
Out of stock

8

CLAMP, BRAKE HOSE NO.2

59268-16G00

1
Out of stock

9

2

$1.31

In stock

9

BOLT | MODEL K7

01547-0612A

2
Out of stock

10

2

$3.18

In stock
