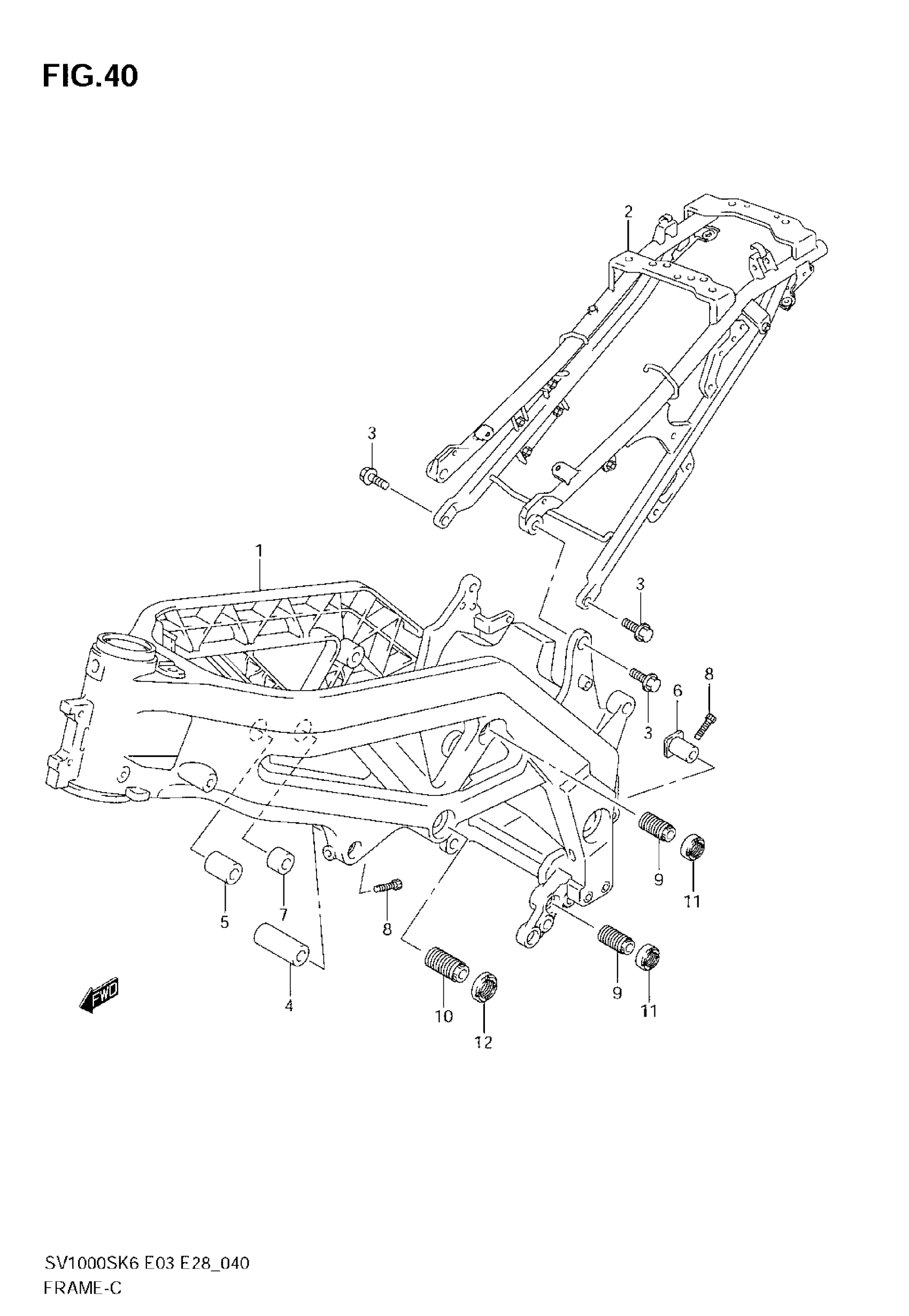

Suzuki SV1000 (2007) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | SV1000 NOT FOR US MARKET

41100-16G11-YAP

Unavailable

1

FRAME (BLACK) | SV1000S

41100-16G20-YAP

Unavailable

2

RAIL, SEAT (BLACK)

41200-16G31-YAP

Unavailable

3

BOLT,SEAT RAIL This part replaces 41233-18G00.

41233-18G20

$8.65

4

SPACER, ENGINE HEAD FRONT LH

41198-02F00

Unavailable

5

SPACER, ENGINE HEAD REAR RH

41941-02F00

Unavailable

6

SPACER, CRANKCASE UPPER

41941-19F01

$40.33

7

SPACER, HEAD CENTER RH

41942-16G00

Unavailable

8

BOLT, SPACER

09106-08170

$3.49

9

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$23.47

10

BOLT, CRANK CASE ADJUST CTR

41923-16G00

$31.28

11

NUT, REAR HEAD ADJUST

41922-33E00

$22.52

12

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$18.90
