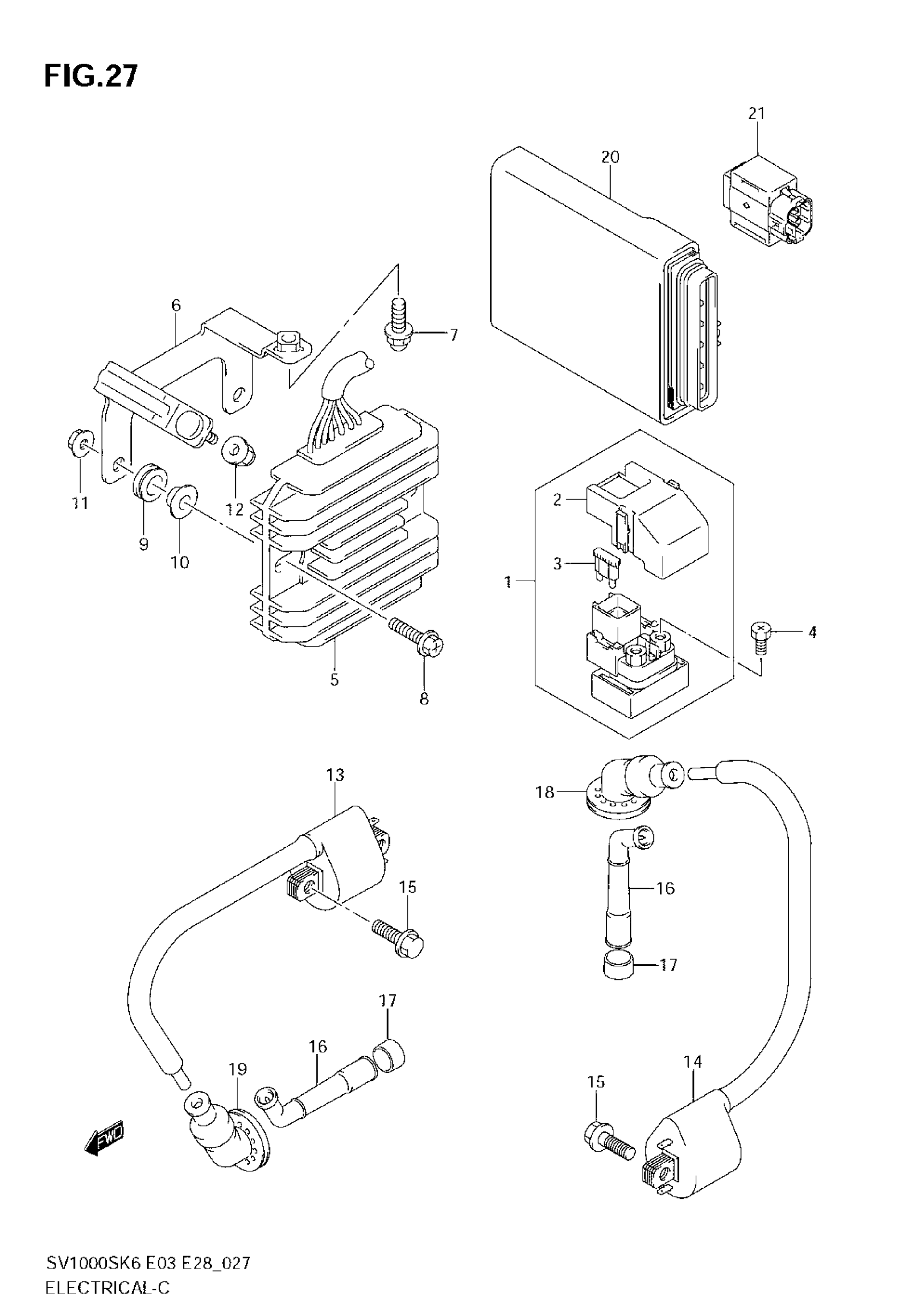

Suzuki SV1000 (2007) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-06G00.

31800-06G02

$67.32

2

COVER, RELAY ASSY

31861-47E00

$16.15

3

FUSE, 30A

09481-30101

$2.26

4

BOLT (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-16G00.

32800-16G02

$243.97

6

BRACKET, RECTIFIER

32831-16G00

Unavailable

7

BOLT

09104-06009

Unavailable

8

BOLT

02162-0630B

Unavailable

9

CUSHION, RECTIFIER

09320-08072

$3.91

10

SPACER, RECT FTG BRKT

09180-06325

$3.79

11

NUT, RECT FTG

08313-20067

$2.42

12

NUT

08316-1006B

$2.50

13

COIL ASSY,IGNITION This part replaces 33410-06G00.

33410-06G01

$99.25

14

COIL ASSY,IGNIT This part replaces 33420-06G00.

33420-06G01

$81.24

15

..BOLT

01547-0620B

$2.45

16

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

17

SEAL, SPARK PLUG CAP

33541-23E01

$6.34

18

SEAL,HT CORD RR

33542-06G00

$8.12

19

SEAL,HT CORD FR

33542-06G10

$8.28

20

CONTROL UNIT, FI

32920-16GK0

Unavailable

21

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
